Combined With Hopper - Extremis HOPPER SHADE Assembly Instructions Manual

COMBINED WITH HOPPER

UTILITIES
2 people
no. 17 spanner
no. 4 - 5 hex key
+/- 45 min.

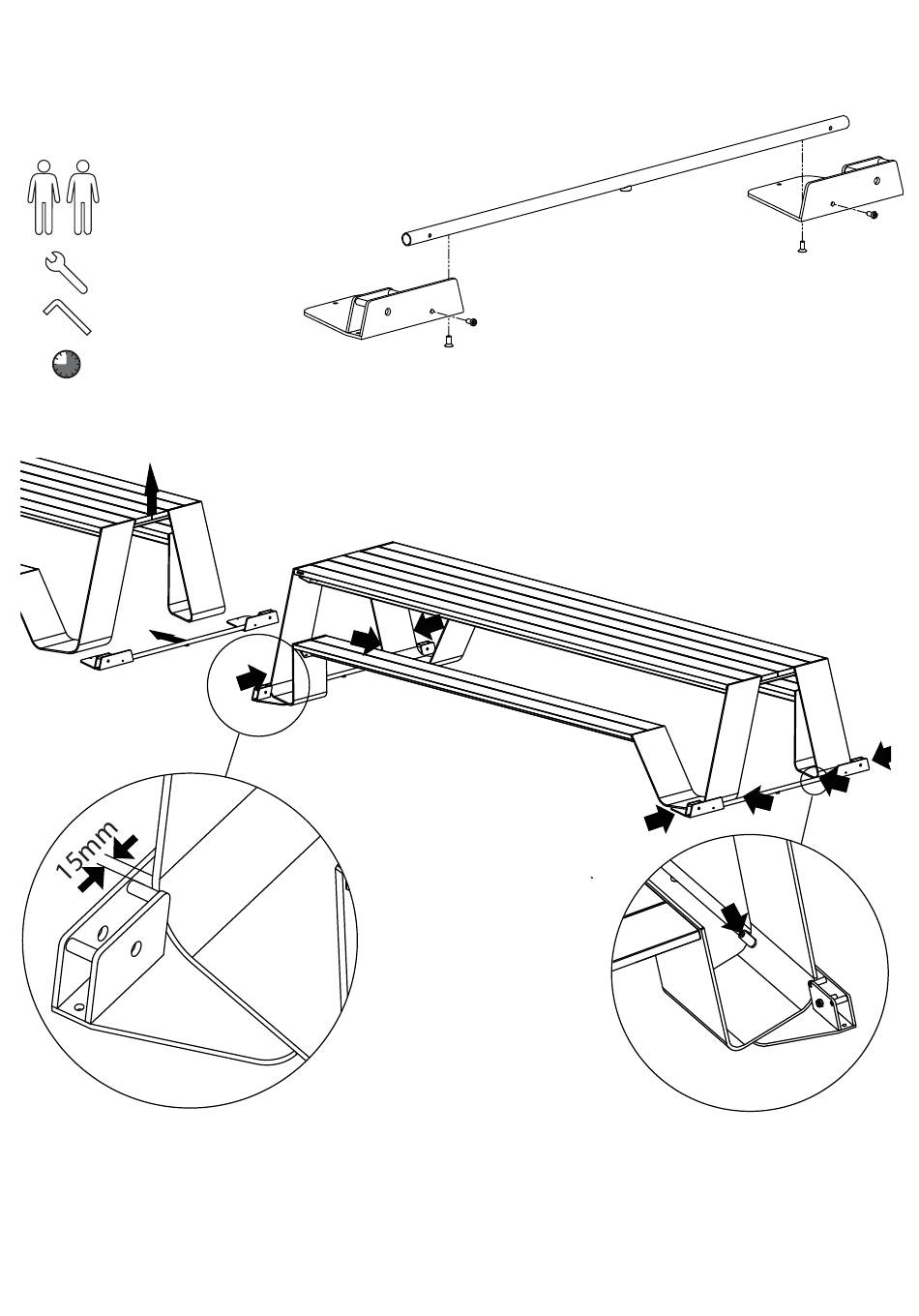

2. Slide the assembled base plates under the table until the union tube touches the table. The distance between the
table leg and the round axle of the base plate should be the same on both sides (approximately 15 mm).
6 combined with hopper
1. Screw the two base plates (1 left (7) + 1 right (6)) to the union tube (8)
using bolts B (at the bottom) and bolts C, in combination with spring
washer (3) (at the side).
