ASSEMBLY WITH FLOOR FASTENING

UTILITIES
2 people
no. 17 spanner
no. 4 - 5 hex key
+/- 30 min.
2. Mark the spots to drill the 4 holes for each of the
ground anchors (12).
3. Drill holes at the marked spots.
4. Perfectly align the holes in the ground anchor (12)
with the holes in the floor.
10 assembly with floor fastening

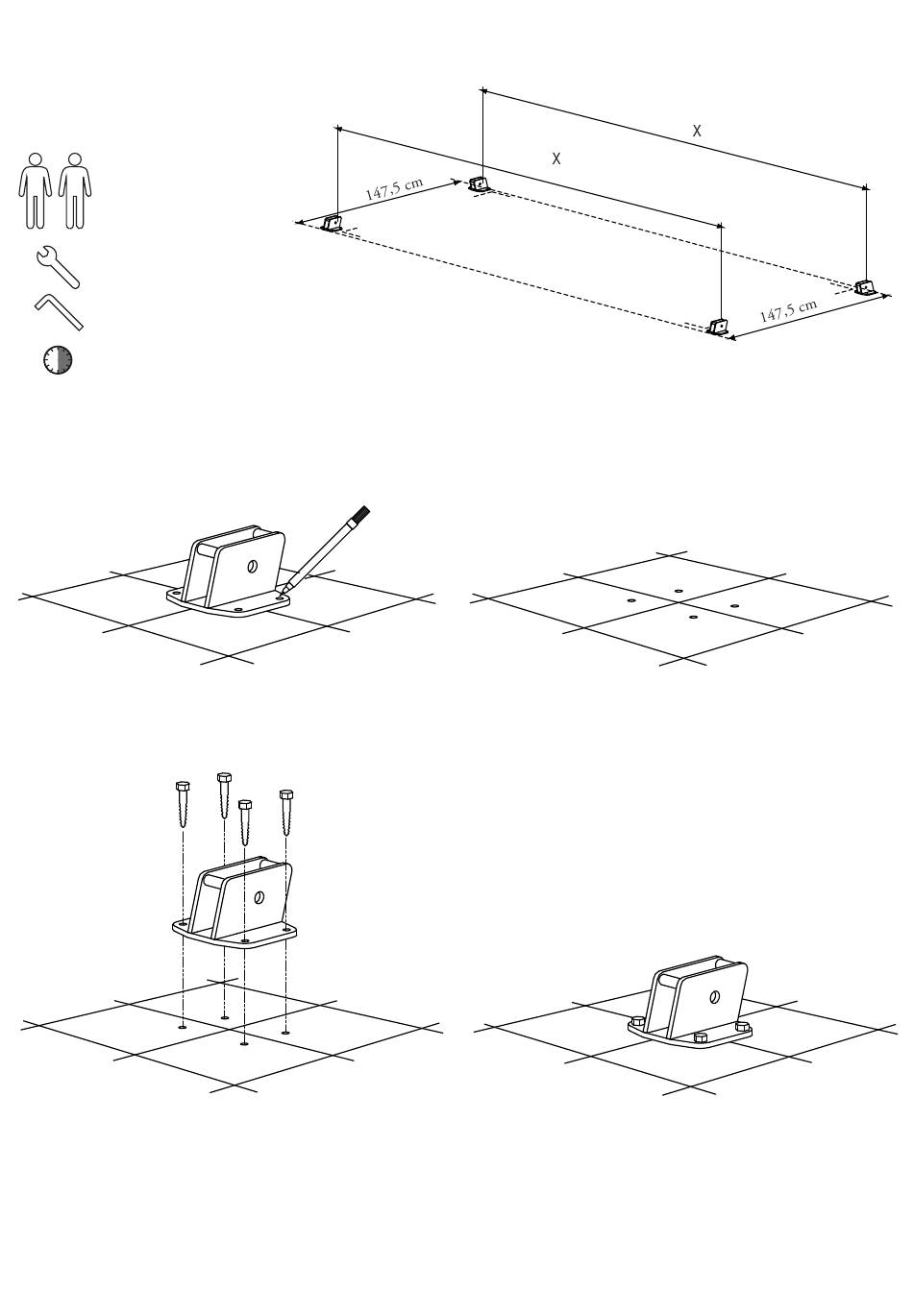

1. Position the ground anchors (12)
on the floor as shown in the
drawing, at a distance of x.
5. You can now attach each ground anchor (12) to the
floor by means of bolts (use the fixing media most
suited to the type of ground on which you intend to
install the Hopper Shade).
In case of HS10 people X = 351.5 cm
In case of HS8 people X = 291.5 cm
In case of HS6 people X = 231.5 cm
