Summary of Contents for Extremis Acacia

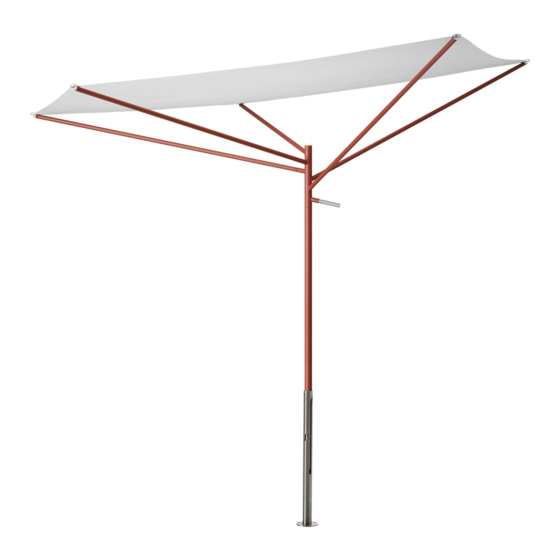

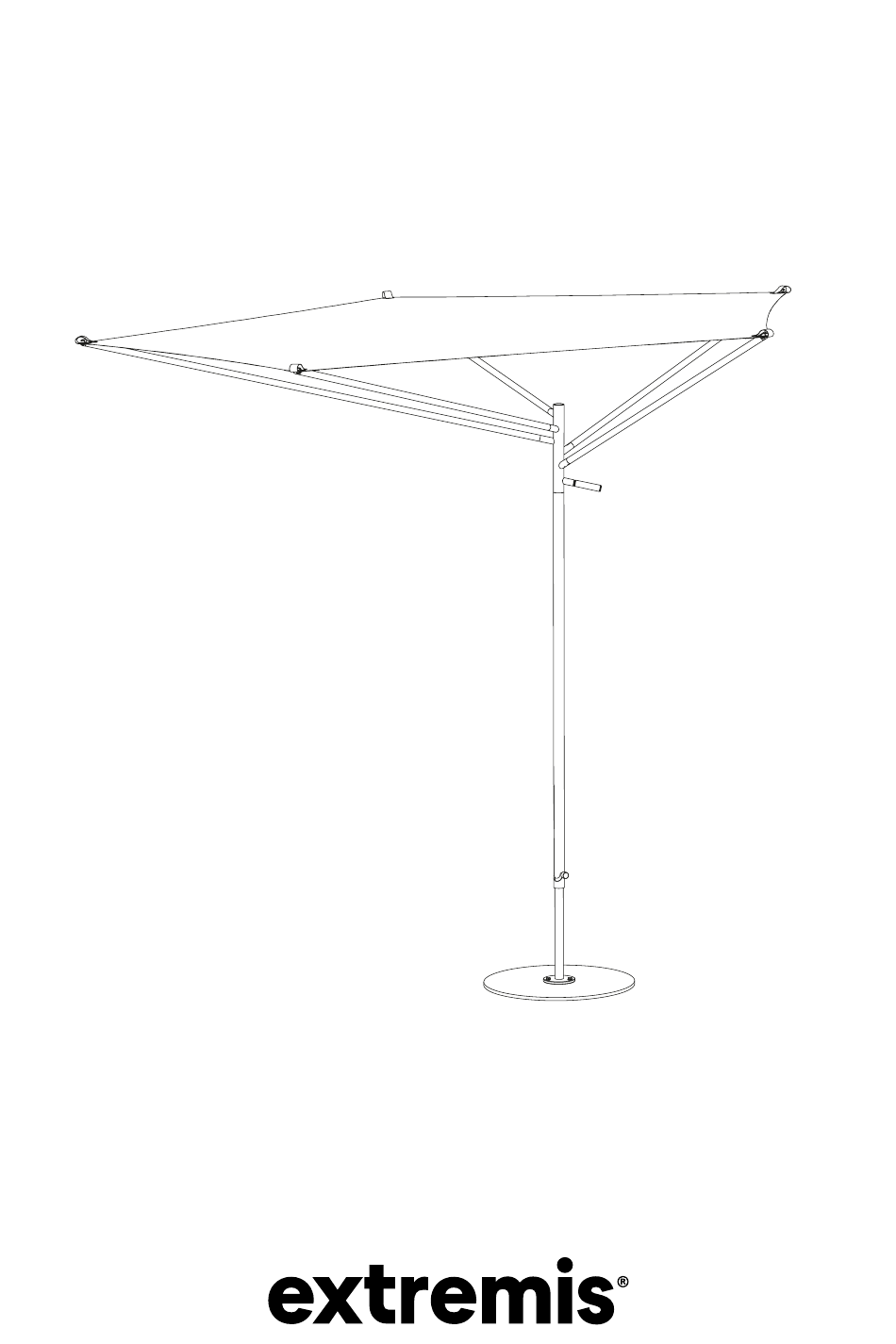

- Page 1 Acacia...
- Page 2 IMPORTANT! RETAIN FOR FUTURE REFERENCE: READ CAREFULLY.
- Page 4 Table of contents Mounting kit Exploded view Assembly Acacia Warnings - Text instructions - Maintenance This is an interactive PDF You can easily navigate through this manual, allowing you to smoothly jump from one page to the other.
- Page 5 Mounting kit 10 x M8x12 3 x M6x16 ACA326 Mounting kit to fix the ACA372 Mounting kit to fix baleens to the crown the lightweight parasol base 3 x M6x25 ACA373 Mounting kit to fix the standard parasol base 1 x handle 1 x knob ACA370 Mounting kit...
- Page 6 Exploded view...
- Page 7 A cacia 1a. Floor fastening N° 4 20’ ø 6 mm 1b. Lightweight parasol base ACA372 3 x M6x16...
- Page 8 1c. Standard parasol base ACA373 3 x M6x25 1d. Heavy duty parasol base ACA374 3 x M6x35...
- Page 9 Do not tighten Highest hole Lowest hole ACA310 Use the lowest hole for standard tables (Virus) Use the highest hole for high tables 1 x knob (Tiki table)
- Page 10 ACA310 1 x handle Replace bolt by handle before use...
- Page 11 ACA326 10 x M8x12...
- Page 13 Tip for easy mounting Start mounting the canopy to baleen n°2 and work your way in counterclockwise so that baleen n°3 is the last, as this is the lo- west. Push the top of the baleen upwards while hooking the sail eye over the end of the baleen.
- Page 14 Medium High Choose your disered height by sliding the central tube up/down...
- Page 15 Direct the parasol towards the sun by loosening the handle...
- Page 16 Warnings Text instructions Maintenance Warnings Assembly text instructions Maintenance ...
- Page 17 Warnings General • Do not use any sharp tools to open the packaging. • We strongly advise against using power tools. • Tripping hazard, mind your step. • Do not put out cigarettes on the bench. • Not grafitti proof. •...
- Page 18 the surface. • Color can fade to some extent when exposed to UV. • Flame retarding - NEN-EN13501-1 A2-sl - Satisfying the same criteria as Class B for the SBI-test according to EN13823. In addition, under conditions of a fully developed fire these products will nog significantly contribute to the fire load and fire growth.
- Page 19 Remove the tube and now drill at the places marked. Now place the tube back and attach using bolts or screws suitable for the type of ground on which the Acacia is to stand. b. Parasol base lightweight Place the galvanized steel foot plate on the ground and mount the tube on it with 3 M6x16 bolts.
- Page 20 2. Slide the central tube (with crown) over the galvanized steel foot and fix the height adjustment knob in the lowest hole if you want to use Acacia with standard tables (see Virus) or in the highest hole if you want to use Acacia with high tables. Do not tighten this yet.
- Page 21 Powder coating CLEANING Regularly Use Extremis Multicleaner, a 100% biodegradable detergent or common kitchen cleaning products. Avoid using aggressive products. These sur- faces are best cleaned with a neutral cleaning product diluted in water. REPAIRING DAMAGED POWDER COATING When damaged...
- Page 22 can be touched up with our paint pens. However this only camouflages the scratches without removing them. Galvanized steel CLEANING When dirty Clean with lukewarm water and a brush. REPARING DAMAGED PARTS WITH ZINC SPRAY When damaged Hot dip galvanization is the most durable way of protecting metal against rusting.
- Page 23 All rights reserved. Unless otherwise specified, all designs and photographs contained in this publication are copyright protected and are the property of Extremis. No part of this publication may be copied or distributed without Extremis’ prior written consent. The names of the authors of photographs to which we do not hold rights are mentioned here. We have done our utmost to provide a...
