Form 04584314
Edition 1
April 2005

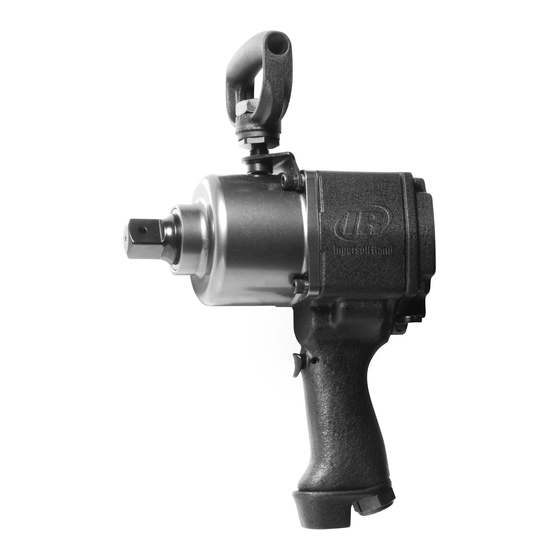

Air Impact Wrench
2934P2 and 2940P2
Maintenance Information
Save These Instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2934P2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ingersoll-Rand 2934P2

Summary of Contents for Ingersoll-Rand 2934P2

  • Page 1 Form 04584314 Edition 1 April 2005 Air Impact Wrench 2934P2 and 2940P2 Maintenance Information Save These Instructions...

  • Page 2: Setting The Power Regulator

    Case Bushing (47). Inject approximately 6 cc of grease into the Grease Fitting. Fill the oil reservoir in the handle with Ingersoll-Rand Note the twin Hammers (67) within the Hammer No. 10 Oil. Inject approximately 3 cc of oil into the air Frame Assembly (65).

  • Page 3: Disassembly Of The Motor

    Hold the Hammer Frame firmly and, without With the Impactool turned toward you, and the Trigger disturbing the Hammers, gently lift the Anvil, (16) secured by an alternate means, use a Pin Punch to simultaneously rotating it counterclockwise about 1/8 drive out the Trigger Retaining Pin (18).

  • Page 4: Assembly Of The Motor

    8. Follow the Plunger with the Throttle Valve (7) spring Using a sleeve that will contact only the outer ring of seat end facing up. the Rear Rotor Bearing (54), press the bearing into the 9. Place the Throttle Valve Spring (6), small end first on Rear End Plate (55).

  • Page 5: Assembly Of The Impact Mechanism

    HALF±ROUND NOTCH ON LEFT Coat the Hammers (67) with a light film of CAP SCREW SPECIFICATIONS Ingersoll-Rand Grease No. 170. Replace the Hammers in the Hammer Frame Assembly Tighten the Hammer Case Cap Screws to a minimum of (65) exactly as they were when you marked them prior 20 ft-lb (27.1 Nm) torque.

  • Page 6: Troubleshooting Guide

    TROUBLESHOOTING GUIDE Trouble Probable Cause Solution Low power Dirty Inlet Bushing or Air Using a clean, suitable, cleaning solution, in a well Strainer Screen and/or Exhaust ventilated area, clean Air Strainer Screen, Inlet Silencer Bushing and Exhaust Silencer. Worn or broken Vanes Replace complete set of Vanes.
  • Page 7 Ingersoll-Rand © 2005 Company...
