Meech Hyperion 929IPS Operating Manual page 12

Electrical Installation
WARNING
The 929IPS requires a grounded 24V DC supply. The 0V line must be connected to
ground. Failure to do so, will result in damage to the bar or the 24V supply and will
void the warranty.
A grounding post on the bar is provided for this purpose. Meech recommend that, for
certainty, the bar is grounded using this post, in addition to using a grounded 24V DC
supply.

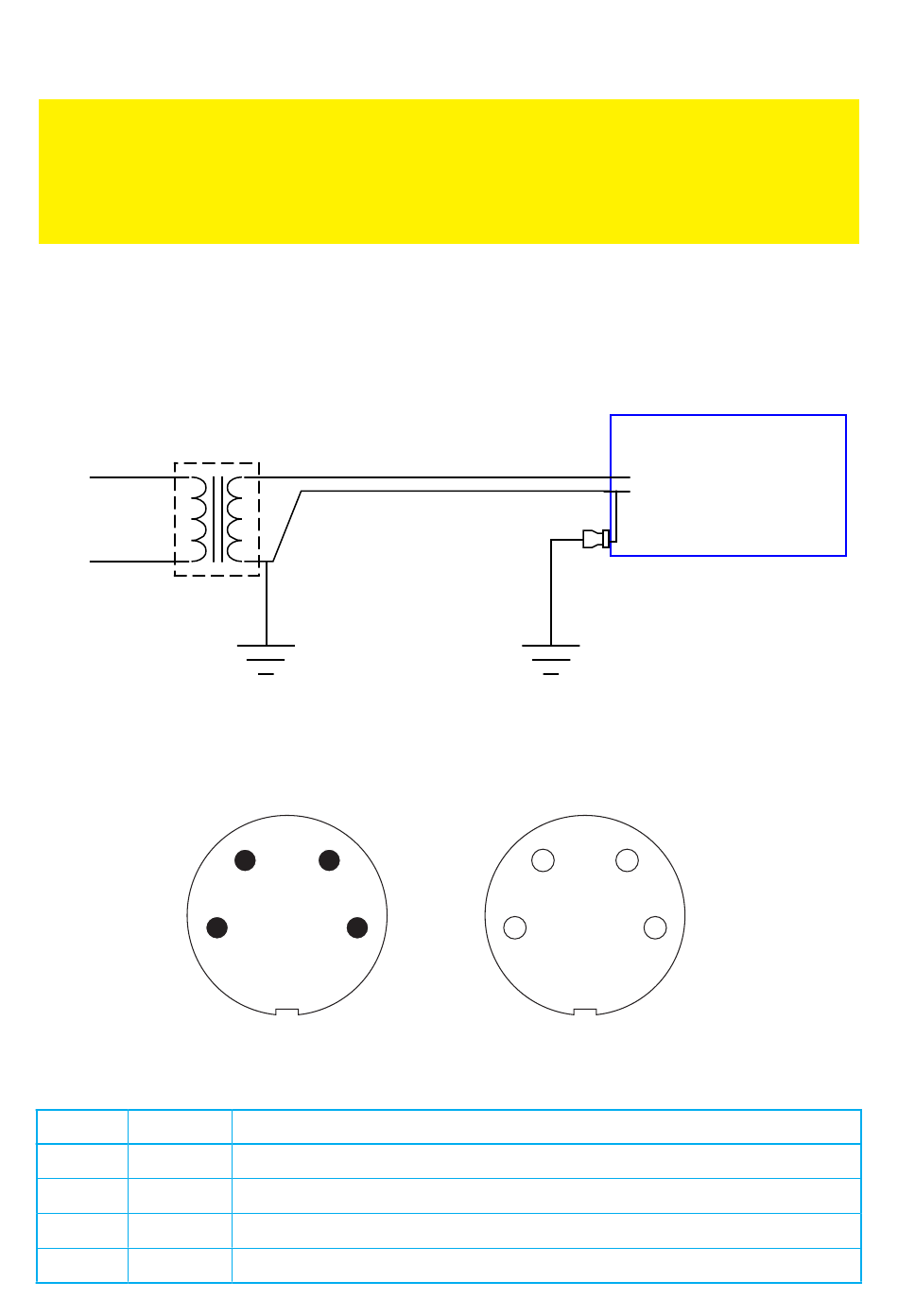

Power Supply
220V AC
Grounded 0V
Connection to the 929IPS is via an industrial M8 4 Pin connector. With the following
pin-outs:
Pin Colour
1 Brown
2 White
3 Blue
10
4 Black
2 4
1 3
Male connector on Bar
Function Specification
24V (21-27V)
Clean Pin Output 0V / 24V
0V / Ground
No connection
24V DC
0V
Grounding using
ground post
4 2
3 1
Female connector on Cable
929IPS
