SMC Networks IZH10 Series Quick Start Manual page 4

Series
Handheld Electrostatic Meter Precautions
Be sure to read this before handling. Refer to front matters 58 and 59 for Safety
Instructions.
Handling Precautions
Warning
1. Do not make any
exchanging the printed circuit board) to the
product.
It may cause human injuries and damage.
2. Use the device in the condition of specified range.
Using it out of the specified range may result in fires, electric
shock, or damage. Confirm the specifications before using.
3. Measurement near high-voltage
Avoid measuring near high-voltage exceeding specifications
as it can be dangerous.
4. Handling of ground wire
Be sure to provide a ground wire to ensure safety and high-
accuracy measurement when using the sensor.
Also, if the ground wire is not connected properly, the power is
pooled in the sensor part and/or ground terminal, which can
discharge to an operator's hand. Handle the sensor part and
ground terminal carefully.
If grounding is not provided,
• Measurement accuracy gets worse.
• The sensor is charged and can discharge to an operator's
hand.
5. Do not apply strong impact.
Do not drop, allow collision or apply excessive shock to the
sensor when handling. It can result in damage of the sensor
and accidents.

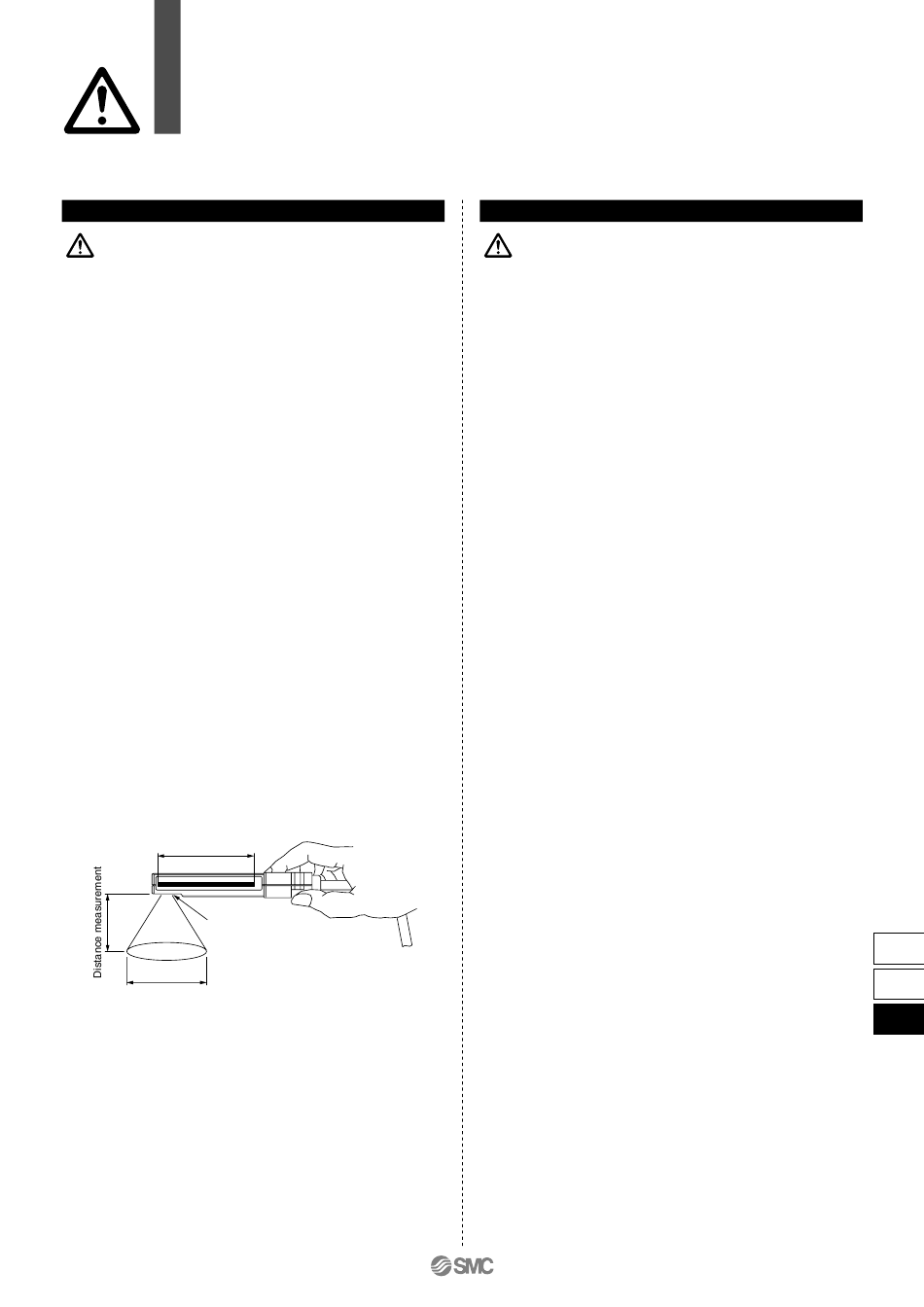

6. Distance measurement is 50 mm. Use display of
label attached to the sensors as a guide.
Approx. 50 mm
BEST DETECTING POSITION 50mm
Detection hole
Detection area
7. The measurement of a part with a high-charge
potential can be highly dangerous as it can cause a
discharge to the user's hand.
In this case, use a handle specific for measuring high voltage,
which is available as an option, and wear rubber gloves, etc.
Also, gradually bring the sensor part close to the measured
target from a distance, and stop the measurement
immediately when the displayed value overflows (HHH) or
underflows (LLL). (A target with a high-charge potential is very
dangerous. The measured value does not changed even if the
distance is shortened.)
IZH10
modifications (including
Operating Environment
Warning
1. Handheld electrostatic meters are CE marked;
however, they are not equipped with surge
protection against
countermeasures should be applied directly to
system components as necessary.
2. Handheld electrostatic meters do not have an
explosion proof rating. Never use in the presence of
an explosive gas as this may cause a serious
explosion.
lighting. Lighting surge
