E-TMS10-PL-0304
REVISED STARTING SERIAL# 3522
ELECTRIC TILE SAW
PARTS LIST MANUAL

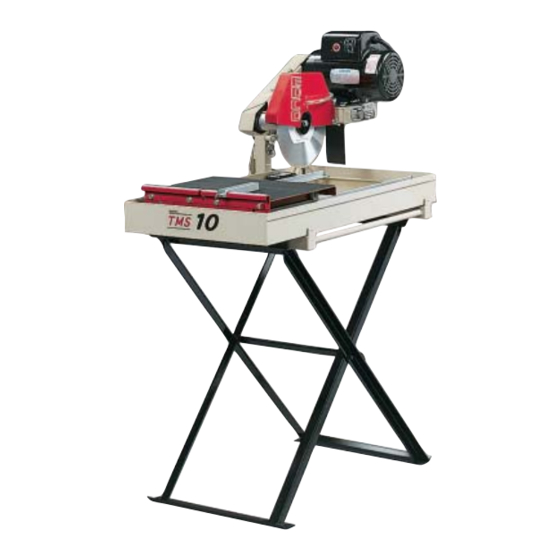

Model TMS-10
(SHOWN WITH OPTIONAL FOLDING STAND)
100 Thomas Johnson Drive, Frederick, MD 21702-4600 USA
Phone (301) 663-1600 • 1-800-638-3326
Printed in USA
Fax (301) 663-1607 • 1-800-447-3326
©2004
Page 1
Website: www.edcoinc.com • Email: sales@edcoinc.com
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Edco TMS10-1L
Summary of Contents for Edco TMS10-1L
- Page 1 E-TMS10-PL-0304 REVISED STARTING SERIAL# 3522 ELECTRIC TILE SAW PARTS LIST MANUAL Model TMS-10 (SHOWN WITH OPTIONAL FOLDING STAND) 100 Thomas Johnson Drive, Frederick, MD 21702-4600 USA Phone (301) 663-1600 • 1-800-638-3326 Printed in USA Fax (301) 663-1607 • 1-800-447-3326 ©2004 Page 1 Website: www.edcoinc.com •...
- Page 2 Do not modify this machine. maintain a safe operating distance to other personnel. Your work Use only genuine EDCO parts and accessories. Repairs and ser- area should be defined and appropriately marked so bystanders...
-
Page 3: How To Order Replacement Parts
LEESON 1.5 HP, 1 PHASE, 60 HZ, 115V HOW TO ORDER REPLACEMENT PARTS FILL IN INFORMATION BELOW Date of Purchase ______________________ To insure product safety and reliability, always use genuine EDCO replacement parts when making __________________ Name of Machine repairs to the equipment. Model # ______________________________... - Page 4 E-TMS10-PL-0304 ILLUSTRATION 1 : MAIN GROUPING 100 Thomas Johnson Drive, Frederick, MD 21702-4600 USA Phone (301) 663-1600 • 1-800-638-3326 Printed in USA Fax (301) 663-1607 • 1-800-447-3326 ©2004 Page 4 Website: www.edcoinc.com • Email: sales@edcoinc.com...
- Page 5 E-TMS10-PL-0304 ARBOR HEIGHT LOCKING BAR ASSEMBLY HAS CHANGED - CLICK HERE FOR CHANGES PARTS LISTING - ILLUSTRATION 1 : MAIN GROUPING ITEM# PART# DESCRIPTION QTY. ITEM# PART# DESCRIPTION QTY. 42101A PAN ASSY. W/ RAILS & STOPPER 10038 WASHER, LOCK 1/4 (INCLUDES ITEMS 2-6) 10602 WASHER, FLAT 1/4...
- Page 6 E-TMS10-PL-0304 ILLUSTRATION 2 : ROLLING TABLE ASSEMBLY GROUPING ITEM # 6 REVISED APRIL 2007 NEW PART NUMBERS: 42221 - RUBBER PAD 12x8x3/16 42222 - RUBBER PAD 12x7-1/2x3/16 CUT GUIDE ACCESSSORY KIT (OPTIONAL) ITEM# PART# DESCRIPTION QTY. 42170 TABLE COMPLETE, ROLLING (INCLUDES ITEMS 2-18) 42171 TABLE, ROLLING 42172...
- Page 7 E-TMS10-PL-0304 ILLUSTRATION 3 : ARBOR ASSEMBLY GROUPING ITEM# PART# DESCRIPTION QTY. ITEM# PART# DESCRIPTION QTY. 42114T ARBOR ASSEMBLY COMPLETE 40036 KEY, WOODRUFF 1/8x3/8 (#403) (INCLUDES ITEMS 2-9) 42117 ARBOR BACKING PLATE 2-1/2” 42115 ARBOR SHAFT 6-3/4”L 42118 ARBOR BLADE CAP 2-1/2” 42116 ARBOR HOUSING 10453...
-
Page 8: Limited Equipment Warranty
EDCO will not in any event be liable to the user, any successors in interest or any beneficiary or assignee This warranty, does not apply to failure occurring as a... - Page 9 ADDENDUM TO DOC.# E-TMS10-PL-0304 E-TMS10-PLA-1004 MODEL TMS-10 REV. STARTING SERIAL # 3527 REVISED ARBOR HEIGHT LOCKING BAR ASSEMBLY BELT COVER PART# 42112 MOTOR & ARBOR DECK PART# 42108N BASE & POST FRAME ASSY. PART# 42107 ITEM# PART# DESCRIPTION QTY. 10393 SCREW, CAP 3/8-24 X 2-1/2 10025 WASHER, FLAT 3/8...
- Page 10 E-TMS10CART-PL-1100 MODEL TMS-10 CART ADAPTER BRACKET KIT PART NO. 24656 TMS-10 BASE FRAME SELF-TAPPING SCREW ADAPTOR BRACKET TMS-10 FRAME BASE CENTER TMS-10 BASE FRAME OVER CART & ADAPTOR. DRILL 7/32" DIA. HOLE IN BASE FRAME FOR SELF-TAPPING SCREW. CART FRONT RAIL CART- DRILL 5/16"...
