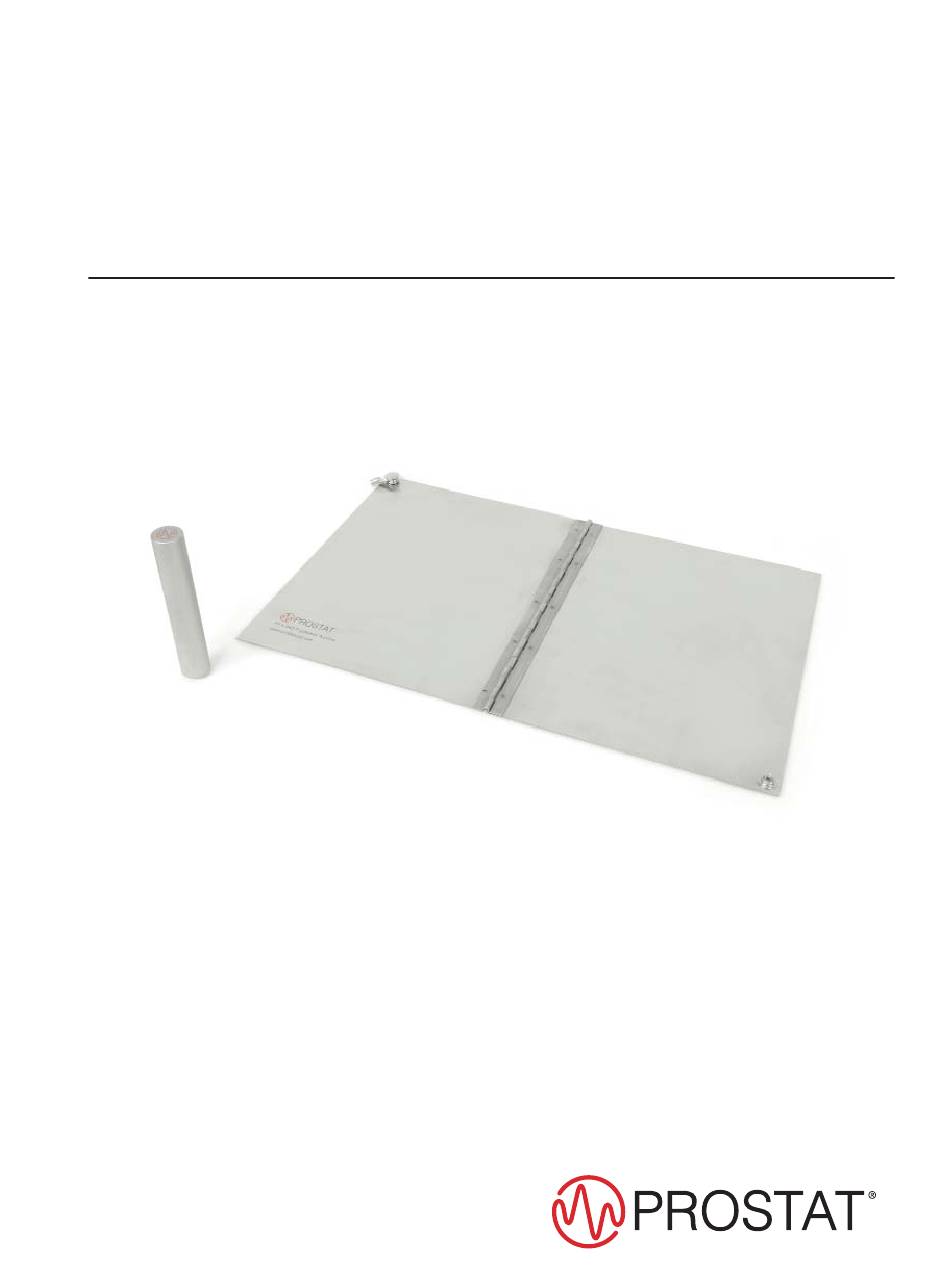

- Page 1 FOOTWEAR AUDITOR PFA-860 User Manual...
-
Page 3: Table Of Contents
General Specifi ca ons Copyright © 2011 by Prostat® Corpora on. All rights reserved. Printed in the United States of America. No part of this manual may be used or reproduced in any manner whatsoever without wri en permission. For informa on contact Prostat Corpora on, 1072 Tower Lane, Bensenville, IL 60106 USA Prostat is the registered trademark of Prostat®... -
Page 4: Introduc On & Descrip On

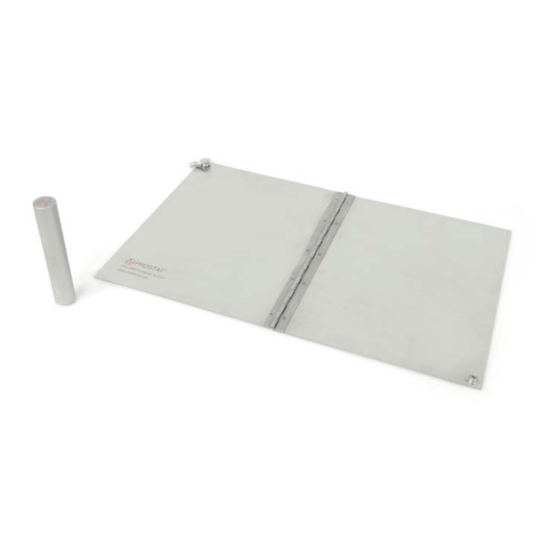

Two stainless steel plates 1/16 inch thick, welded to 1/4 inch stainless steel piano hinge. Func onal Size 17 x 11 inches. Folds to 8 x 11 x 0.25 inches for storage in standard Prostat kits. Equipped with 2 snap connec ons at opposite corners for convenience. Bo om surface lami- nated with polypropylene insula ng material. -
Page 5: Tes Ng Footwear Resistance Through Human Test Subject
PFA-860 Footwear Auditor C. Check the con nuity of the test plate using the following procedure: 1. Place the resistance meter on a table top or other stable surface and a ach the leads. 2. Set the Main Selector Switch to CONTINUITY Se ng. -
Page 6: Tes Ng Footwear Resistance Through Shoe To Test Plate
PFA-860 Footwear Auditor b. Plug the second test lead into the banana recep- tacle on the Hand Held Wand. c. While the Human Test Subject is wearing the shoes in ques on, the subject stands on the hinged test plate with one foot on each side of the hinge while holding the Hand Wand fi... - Page 7 PFA-860 Footwear Auditor b. Place a strip of aluminum foil approximately 1 inch wide by 14 inches long in the test shoe. Make sure that the foil strip runs the full length of the shoe from toe to heel. Have the Test Subject don the shoe Approximately 2 inches of foil should extend from the heel of the shoe.
- Page 8 PFA-860 Footwear Auditor PFA-860 Footwear Auditor Specifi ca ons Test Plate: Two stainless steel plates 1/16 inch thick, welded to ¼ inch stainless steel piano hinge. Equipped with 2 snap connec ons at opposite corners. Bo om surface lami nated with polypropylene insula ng material.
- Page 9 PFA-860 Footwear Auditor NOTES Rev. C / October 2011...
- Page 10 PFA-860 Footwear Auditor NOTES Rev. C / October 2011...
- Page 12 Specifi ca ons are subject to change without no ce. All Prostat trademarks and trade names are the property of Prostat Corpora on. All other trademarks and trade names are the property of their respec ve companies. P R O F E S S I O N A L...
