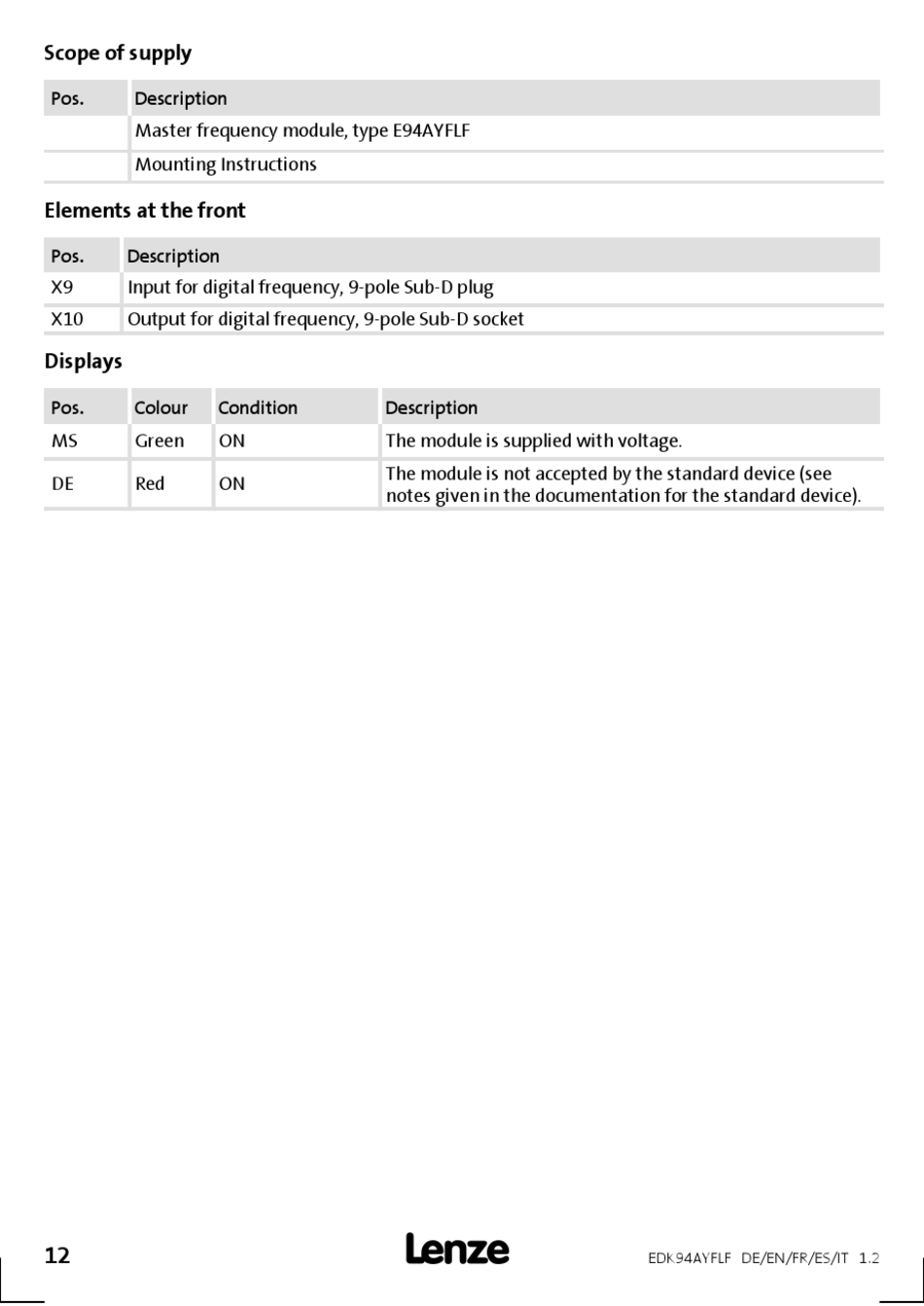

Lenze E94AYFLF Mounting Instructions page 12

Scope of supply
Pos. Description
Master frequency module, type E94AYFLF
Mounting Instructions
Elements at the front
Pos. Description
X9 Input for digital frequency, 9-pole Sub-D plug
X10 Output for digital frequency, 9-pole Sub-D socket
Displays
Pos. Colour
MS Green
DE Red
12
Condition Description
ON The module is supplied with voltage.
The module is not accepted by the standard device (see
ON
notes given in the documentation for the standard device).

