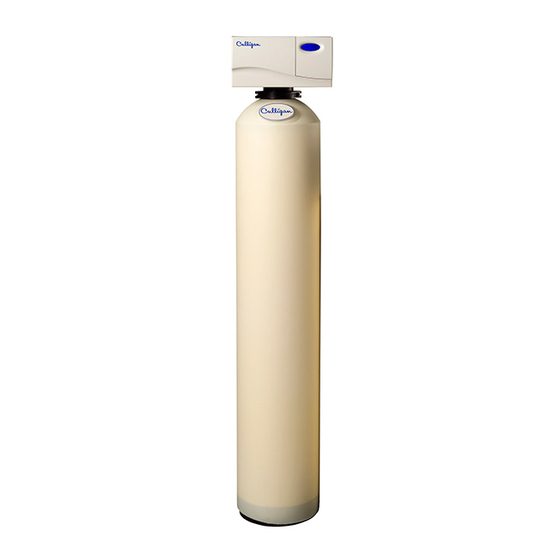

- Page 1 Culligan ® Smart Filter Arsenic Reduction Automatic Water Conditioner Owners Guide...
- Page 2 We promise that you’ll never want to be without it again. Congratulations, too, on selecting one of the “first family” of water filters in the prestigious Culligan Advanced Gold Series. With Culligan’s many years of knowledge and experience in water treatment, you can be confident that the model you selected has been designed and engineered to provide years of service with a minimum of care and attention.
-
Page 3: Table Of Contents
Table of Performance Data Sheets are included in this manual for various Culligan Smart Filter Arsenic Reduction Water Conditioner models. Refer to the Performance Data Sheet for your specific filter, Contents as there are slight differences between the models. The filter warranty is located on page 24 of this Owner’s Guide. -
Page 4: Specifications
Specifications Arsenic Filter Performance Specifications 10-inch System 12-inch System 14-inch System General Control Valve 1” Reinforced Thermoplastic Timer Electronic GBE Overall Conditioner Height 63 in. 61 in. 74 in. Media tank Design Quadra-Hull Tank Media Tank Dimensions (Dia x Ht) 10 x 54 in. -
Page 5: Conditioner Operation
Settings The Culligan Automatic Water Filter is designed to perform efficiently on a wide range of water supplies. In order to ensure proper operation of the filter, and before initiating the initial recharge and putting the unit into service, the following settings need to be made. -
Page 6: Navigating The Menu
Navigating This is the “home” screen. Pressing any Filtering key except CANCEL (“x”) takes you to the the Menus main menu. Jan-01-09 12:01 a and Keypad > 1) information 2) manual mode 3) set date/time 4) ACCESSORIES This is the main menu. The pointer shows 1) information where you are in the menu. -
Page 7: First Time Setup
First Time First Set-up Procedure Controller Set-up After completing the plumbing connections to the water softener, follow Process these steps to turn on and program the softener controller. STEP 1: Plug in the wall transformer STEP 2: Perform the on-display “First Time Setup” process „... - Page 8 Note: If this unit will be installed with a modem, it is required that this electronic ID number is reported back to Culligan on the IQR form. Pressing the DOWN arrow button will change the Set Month display to read “Set Month”.
- Page 9 If the value displayed is NOT correct, pressing the “CHECK MARK” button will change • the display, to show a “>” symbol next to the displayed value. Use the UP or DOWN arrow to change the setting. Once the desired value is displayed, this value can be accepted by pressing the “CHECK MARK”...
- Page 10 If the value displayed is NOT correct, pressing the “CHECK MARK” button will change • the display, to show a “>” symbol next to the displayed value. Use the UP or DOWN arrow to change the setting. Once the desired value is displayed, this value can be accepted by pressing the “CHECK MARK”...
- Page 11 12. Set Total Capacity Total capacity 1000 gallons Note: TOT aL CaPaCiTy is the estimated gallons in between regeneration. • If the value displayed is NOT correct, pressing the “CHeCK MaRK” button will change the display, to show a “>” symbol next to the displayed value. Use the UP or dOWN arrow to change the setting.
-
Page 12: Set Time & Date
Set Date and Set Date and TIme TIme To update the date or time and be updated at the control valve or remote display. Follow the procedure below to update the date or time. Filtering -01-09 12:01 A 1) information dOWN Press arrow... - Page 13 Set Day Set Day ChECk mARk • If the value displayed is NOT correct, pressing the “ ” button will change doWN the display, to show a “>” symbol next to the displayed value. Use the arrow to change the setting. Once the desired value is displayed, this value can be accepted by ChECk mARk pressing the “...
- Page 14 doWN Pressing the arrow will accept that value and take you to the next question. Set Minute Set minute ChECk mARk • If the value displayed is NOT correct, pressing the “ ” button will change doWN the display, to show a “>” symbol next to the displayed value. Use the arrow to change the setting.
-
Page 15: Information
Information The following information can be displayed at the control valve or remote display. filtering -01-09 12:01 a > 1) information doWN From the home screen, press the arrow to 2) manual mode iNfoRmATioN ChECk mARk . Press the button. Press the 3) set date/time iNfoRmATioN down arrow to scroll through the... -
Page 16: Manual Regeneration Information
Follow the procedure below to initiate a manual regeneration at the control valve or the remote Manual display. Regeneration Filtering -01-09 12:01 A 1) information > 2) manual mode 3) set date/time 4) Accessories doWN Press arrow ChECk mARk Pressing the button will change the display to show a “>”... -
Page 17: Care And Cleaning Of Your Water Conditioner
Use and Care Guide, call your Culligan Dealer. If you have further questions, please call your local independently operated Culligan dealer. He or she will be glad to be of assistance to you. For your nearest Culligan dealer, call (800) 285-5442. Recommended Preventative Maintenance Inspection Schedule The Culligan Gold Series water filter has been designed to provide a good, consistent service life. -
Page 18: Things To Check Before You Call For Service
Guests, family additions, new water-using appliances, etc., all will result in more water usage and will require more capacity from your conditioner. You can reprogram your recharging schedule by following the directions on pages 4 – 6. Call your Culligan dealer for advice and save a service call. -
Page 19: Error Codes
This message is displayed if an error has been detected that Call the number shown. If possible, place this call using a phone Call Culligan at requires servicing and that will allow you to see and enter changes to the main controller if... - Page 20 If you are going away on vacation and want to save salt by not having the unit recharge while you’re away. Bypass Valve In the back of Culligan water conditioners is a push-button Cul-Flo-Valv Bypass. To bypass unit, ® simply turn the blue knob clockwise. To return to service, reverse the procedure - turn the blue knob counter-clockwise.
-
Page 21: Meter Performance Data Sheet
Performance Culligan knows the more informed you are about your water treatment systems, the more confident you will be about its performance. It’s because of this and more than seventy years of commitment to customer satisfaction that Data Sheet Culligan is providing this Performance Data Sheet to its customers. - Page 22 Performance Culligan knows the more informed you are about your water treatment systems, the more confident you will be about its performance. It’s because of this and more than seventy years of commitment to customer satisfaction that Data Sheet Culligan is providing this Performance Data Sheet to its customers.
-
Page 23: Meter Performance Data Sheet
Performance Culligan knows the more informed you are about your water treatment systems, the more confident you will be about its performance. It’s because of this and more than seventy years of commitment to customer satisfaction that Data Sheet Culligan is providing this Performance Data Sheet to its customers. -
Page 24: Arsenic Fact Sheet
Some laboratories may also be able to analyze specifically for (speciate) the form(s) of arsenic present in a water sample if requested. The Culligan Smart Filter Arsenic Reduction Automatic Water Conditioner is designed to reduce arsenic: both pentavalent and trivalent forms of arsenic. This treatment system was... - Page 25 Page left intentionally blank.
-
Page 26: Warranty
Culligan specifications, is not covered by this warranty. Refer to the specifications section in the Installation and Operating manual for application parameters. - Page 27 You Get We’re here to provide you with fast, dependable service, making sure any problems you have are taken care of. The Culligan Man has been around for over seventy years, delivery dependable More Than service all along. That’s why people say “Hey, Culligan Man! ”...
