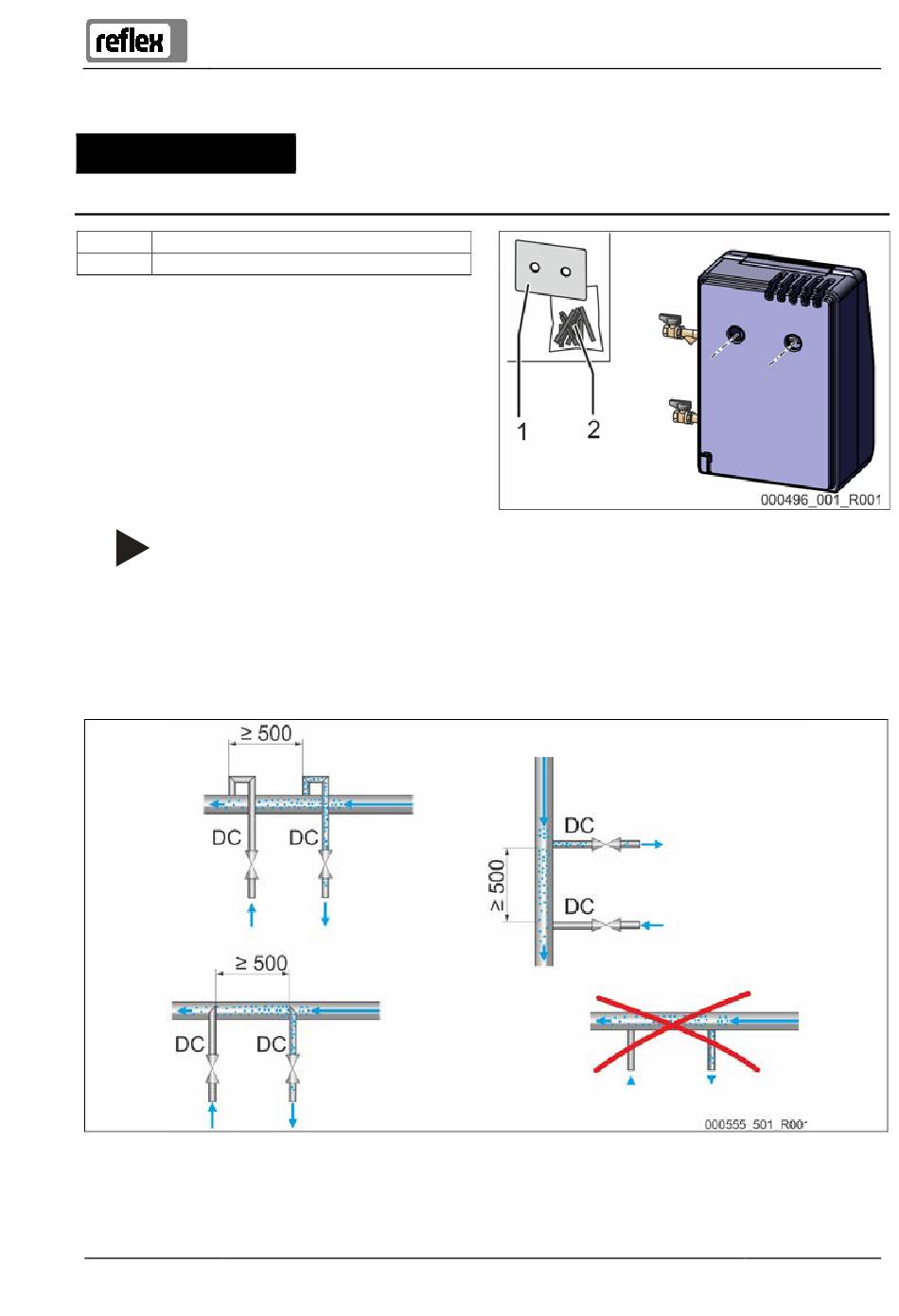

Wall mounting

ATTENTION
Material damage due to sound and noise transfer to building parts
• Do not install the device on false or stud walls that could act as a sound box or resonating body.
1 Drilling template
2 Set of screws
Use the holes provided at the rear of the housing to attach the device at
the wall. Dependent on the wall properties, the fastening materials must
be checked and if necessary adapted prior to installation.
Note!
Use the enclosed drilling template and set of screws for wall mounting.
1. Attach the drilling template to the wall with sticky tape.
2. Drill the holes for attaching the device
3. Remove the drilling template.
4. Hang the device on the wall.
6.4.3

Hydraulic connection

1. Install the 'DC' degassing pipes as shown below:
Comply with the following points:
• Prevent overloading of the dirt trap in the device resulting from coarse dirt.
• Install the gas-rich degassing pipe upstream of the gas-poor degassing pipe (when viewed in the system flow direction).
• Preferably install at the return flow side of the plant system.
– The water temperature must be in the range of 0 °C – 60 °C to ensure sufficient degassing capacity.
