215-006 Rev. B; ECN 15-03-004
© 2015 Bradley
Page 1 of 7 4/29/2015

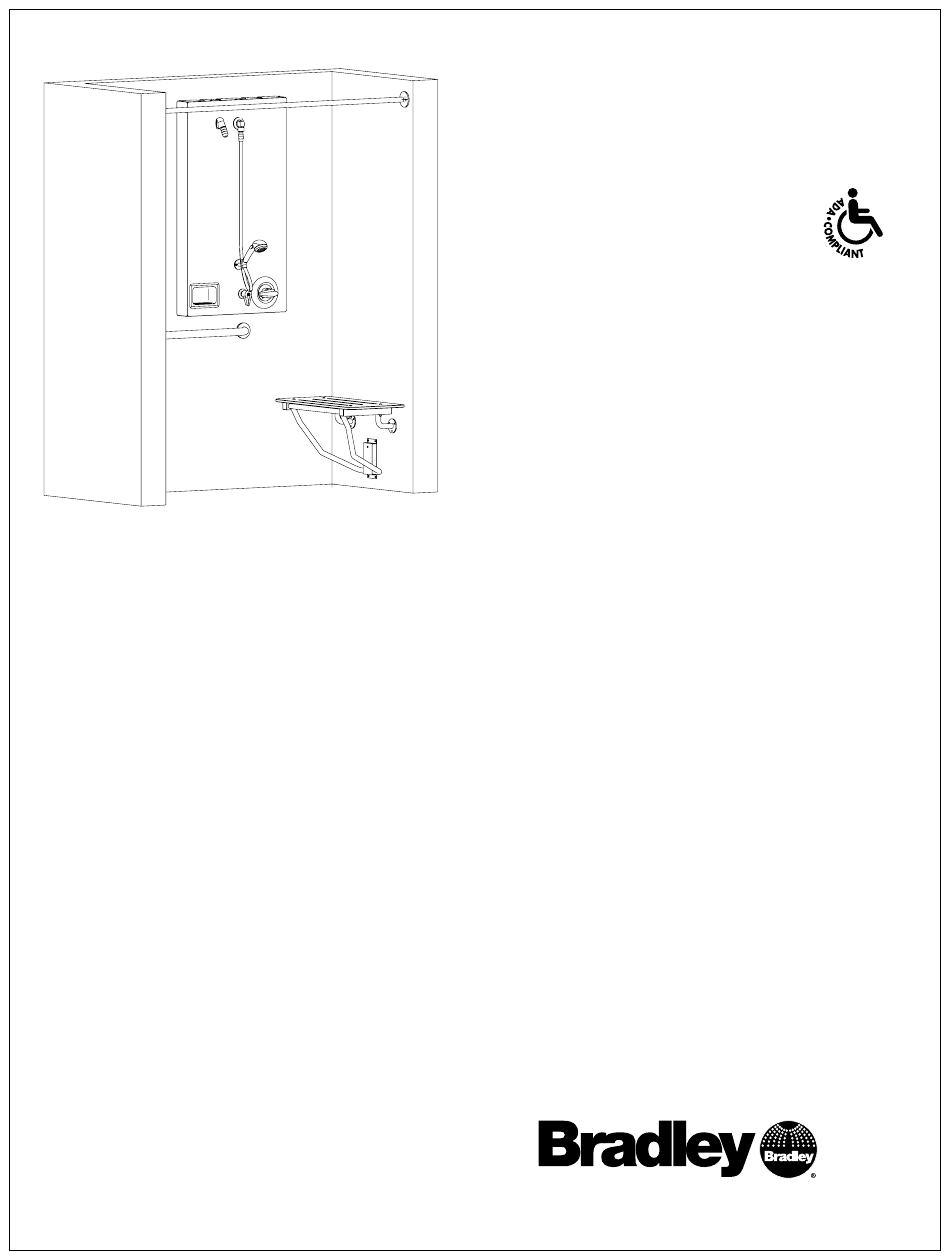

Valve Right/Seat Right Shown
Installation

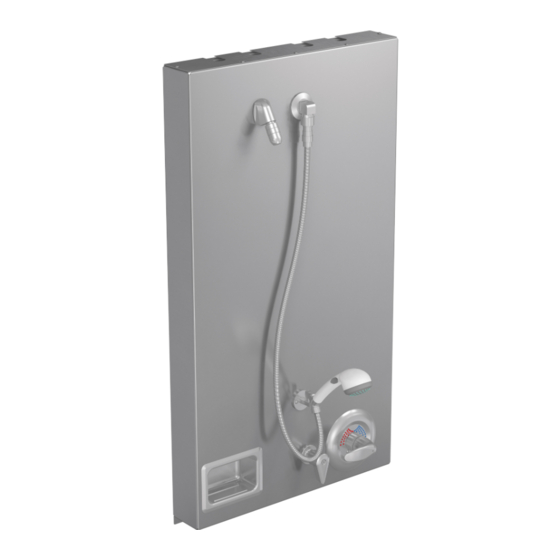

HN-250 Surface-Mounted
Shower
California Title 24
Table of Contents
Pre-Installation Information . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Rough-Ins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-6
Cleaning and Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . 7
P.O. Box 309, Menomonee Falls, WI USA 53052-0309
800 BRADLEY (800 272 3539)
bradleycorp.com
+1 262 251 6000
Advertisement
Table of Contents
Related Manuals for Bradley HN-250
Summary of Contents for Bradley HN-250
- Page 1 Cleaning and Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Valve Right/Seat Right Shown 215-006 Rev. B; ECN 15-03-004 P.O. Box 309, Menomonee Falls, WI USA 53052-0309 © 2015 Bradley 800 BRADLEY (800 272 3539) +1 262 251 6000 Page 1 of 7 4/29/2015 bradleycorp.com...
- Page 2 Plumbing contractor shall be responsible for installing shower control pane at the correct height to meet accessibility requirements. This manual covers all of the HN-250 variations and options available, including shower seat and curtain installation. Simply omit the steps which do not apply to the unit you are installing.
- Page 3 HN-250 Surface-Mounted Shower (Title 24) Installation Pre-Installation Information The HN-250 shower is furnished assembled for job site installation. Particular care must be taken by the contractor for proper placement of the shower. Always check local codes for compliance. Material Control Panel Material: The shower control panel is constructed of 14-gauge type 304 stainless steel .
- Page 4 (613mm) 4" (102mm) 72" 2" (1829mm) (613mm) 1/2" NPT Supplies 48" to 60" (1219 to 1524mm) Valve 19" (483mm) 40" (1016mm) 33" (838mm) Top of Grab Bar 18" (457mm) Top of Seat Bradley • 215-006 Rev. B; ECN 15-03-004 4/29/2015...
- Page 5 (supplied by installer) . (1972mm) A .F .F Mount Shower and Grab Bar Shower Mounting Bracket Hang the HN-250 shower onto the mounting bracket by placing the top angle of the shower into the lip of the bracket . 1/4-20 screws (by installer) Secure the bottom cover flange to the wall with three 1/4"...
- Page 6 Install ten hooks onto curtain rod and hang curtain on rod . Shower Curtain Repair Parts Part No Description 151-001 Curtain hooks 113-313A Curtain Rod 150-157 Shower Rod Flange 269-373 #10-13 x 2" Phillips Head Screw 170-006 Shower Curtain Bradley • 215-006 Rev. B; ECN 15-03-004 4/29/2015...
- Page 7 . It is emphasized that all products should be used in strict accordance with package instructions . Bradley • 215-006 Rev. B; ECN 15-03-004 4/29/2015...
