Bradley 400 Series Installation Manual

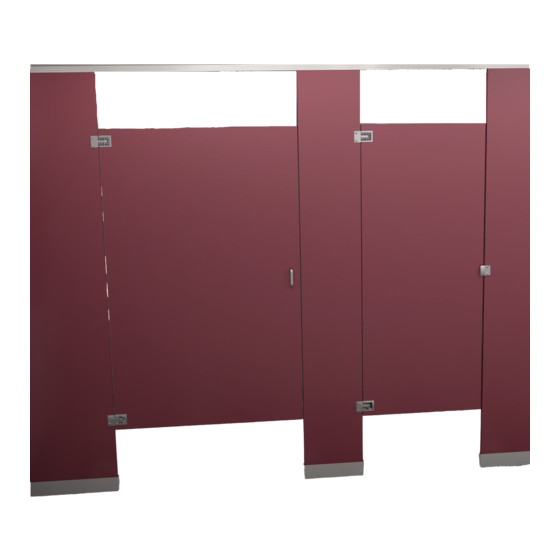

Phenolic privacy restroom partitions floor-mounted with overhead brace
Hide thumbs Also See for 400 Series:
Table of Contents

Advertisement

Quick Links

Download this manual
For 69", 72" & 69"/72" Tall
Doors and Panels Only
Read the instructions in this manual before beginning installation. Save these instructions
and refer to them for inspection, maintenance, and troubleshooting information.
For questions regarding the operation, installation or maintenance of this product, visit bradleycorp.com
or call 800.BRADLEY (800.272.3539).
Product warranties and parts information may also be found on our website at bradleycorp.com.
*HDWC-INSTR-041*
HDWC-INSTR-041 Rev. A: ECO 20-14-002S
© 2021 Bradley
Page 1 of 33
6/25/2021

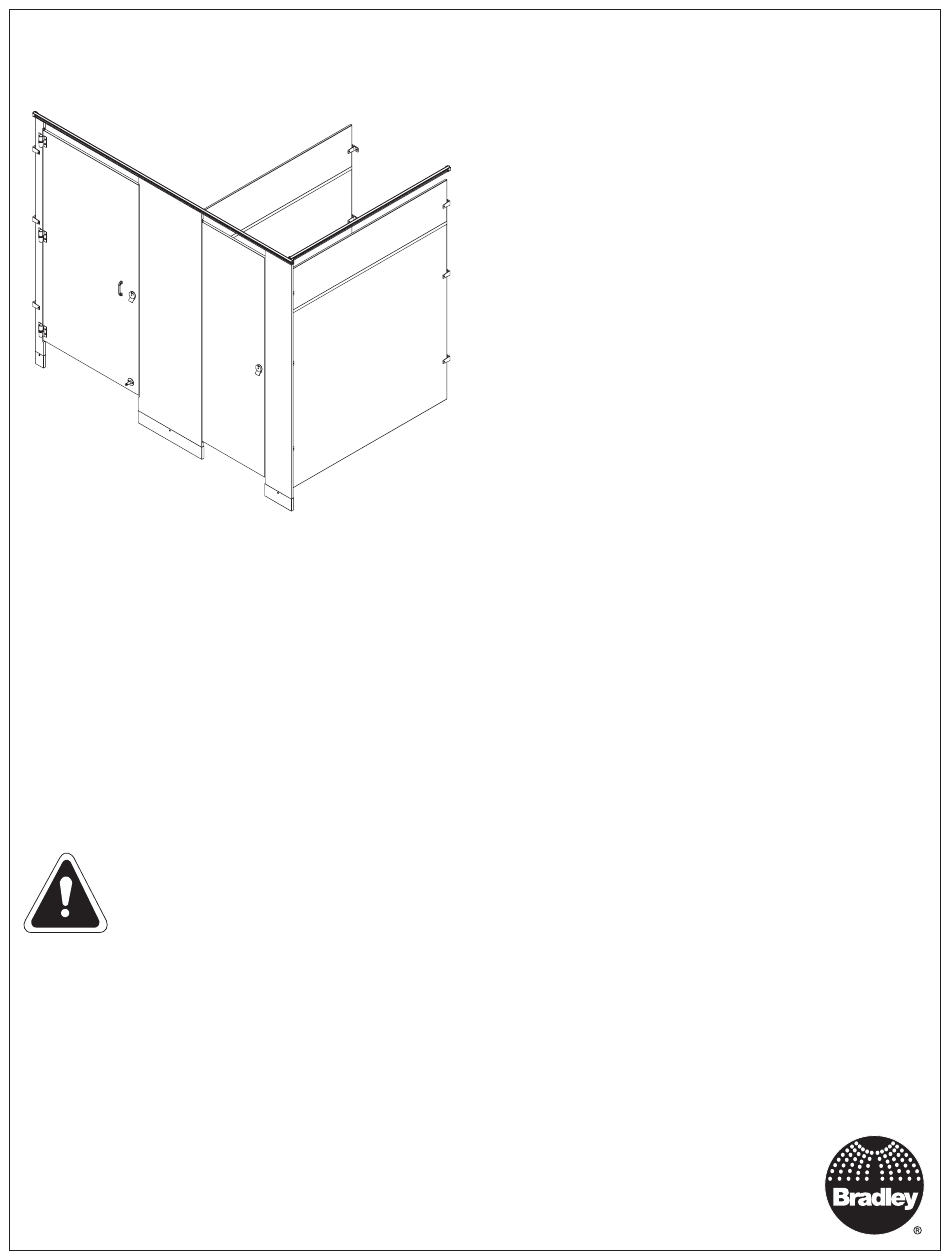

Installation
Phenolic Privacy Restroom Partitions
Floor-Mounted with Overhead Brace -
Series 400

Table of Contents

Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Supplies Required . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Hardware Provided . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Example of Submittal Drawing. . . . . . . . . . . . . . . . . . . . .3
Door Descriptions & Part Numbers . . . . . . . . . . . . . . . . .4
Pilaster Descriptions & Part Numbers . . . . . . . . . . . . . . .5
Pilaster Configurations & Part Numbers . . . . . . . . . . . . .6
Layout Dimensions for Brackets . . . . . . . . . . . . . . . . . . .9
Mounting Brackets to Wall . . . . . . . . . . . . . . . . . . . . . . .10
Leveling Screws to Pilaster . . . . . . . . . . . . . . . . . . . . . .11
Mounting Brackets to Pilaster . . . . . . . . . . . . . . . . .12-13
Pilaster Mounting Hardware . . . . . . . . . . . . . . . . . . . . .13
Pilasters and Panels . . . . . . . . . . . . . . . . . . . . . . . .14-17
Wall-Hung Pilasters . . . . . . . . . . . . . . . . . . . . . . . . .18-21
Pilaster Shoes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
Headrail . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
Hinges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24-25
Door Hardware. . . . . . . . . . . . . . . . . . . . . . . . . . . . .26-31
Urinal Screens . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32-33
Menomonee Falls, WI 53052 USA
800 BRADLEY (800 272 3539)
P.O. Box 309
+1 262 251 6000
bradleycorp.com
