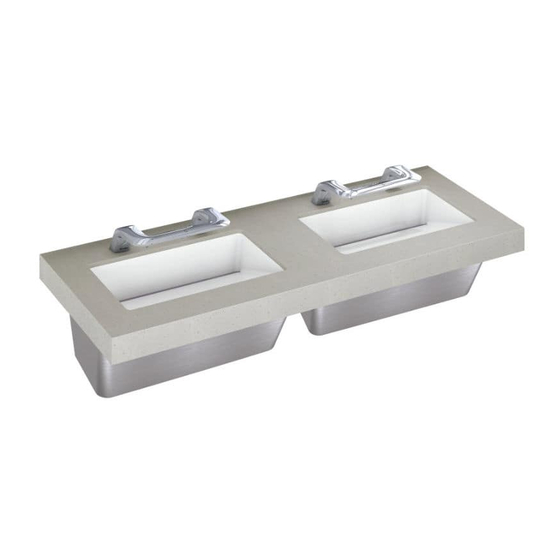

Bradley OmniDeck with WashBar 5000 Series Installation Manual

Bradley OmniDeck with WashBar 5000 Series Installation Manual

Omnideck with washbar
Hide thumbs Also See for OmniDeck with WashBar 5000 Series:

Advertisement

215-1869 Rev. B; ECN 17-11-004B
© 2017 Bradley
Page 1 of 28
8/24/2017
Installation
LD-5010
OmniDeck
with WashBar

Table of Contents

Pre-Installation Information ................................................2
Supplies Required .............................................................2
Components ...................................................................3-4
Dimensions ...................................................................5-10
Structural Rough-Ins ........................................................11
Plumbing and Electrical Rough-Ins .................................12
Drain Assembly ...............................................................13
WashBar Installation ........................................................13
Aerator Installation ...........................................................14
Bowl Mounting .................................................................15
Install P-Trap ....................................................................15
Strainer and Drain Cap ....................................................15
Dryer Motor Assembly .....................................................16
Attach Power Line Filter ..................................................17
Control Box and Valve Installation ...................................18
Soap Installation ..............................................................19
Electrical Connections .....................................................20
Adjust Temperature with Water Running .........................20
Access Panel ...................................................................21
Master Control Box .....................................................22-26
Cleaning and Maintenance .........................................27-28
Menomonee Falls, WI 53052 USA
800 BRADLEY (800 272 3539)
+1 262 251 6000
- 5000 Series
P.O. Box 309
bradleycorp.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OmniDeck with WashBar 5000 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Bradley OmniDeck with WashBar 5000 Series

  • Page 1: Table Of Contents

    Access Panel ..............21 Master Control Box .............22-26 Cleaning and Maintenance .........27-28 P.O. Box 309 215-1869 Rev. B; ECN 17-11-004B Menomonee Falls, WI 53052 USA © 2017 Bradley 800 BRADLEY (800 272 3539) +1 262 251 6000 Page 1 of 28 8/24/2017 bradleycorp.com...
  • Page 2: Pre-Installation Information

    • Phillips Screw Driver • Flat Head Screw Driver • Level • 5/16" nut driver • 5/16" socket (with or without extension) • Construction adhesive suitable for solid surface, forming a strong permanent bond. Bradley • 215-1869 Rev. B; ECN 17-11-004B 8/24/2017...
  • Page 3: Components

    (S39-845) Adapter (2x) Chrome P-trap (S29-094) #10 x 3/8" Screw (2x) (261-147) Plastic P-trap (269-1697) (P18-054) DC Lead Free Valve DC Lead Free Valve Assembly, Single TMA Assembly, Single TL (S08-2401TMA) (S08-2401TL) Bradley • 215-1869 Rev. B; ECN 17-11-004B 8/24/2017...
  • Page 4 Foam Pump with Internal Press Fit Connection (269-2519) Dryer Motor (S39-844) Dryer Vibration Pad 4" x 10" (124-105) Gallon Jug (Not Shown) (Supplied by Others) Hook and Loop Strap (269-2574) Soap Tank Bracket (140-1171) Bradley • 215-1869 Rev. B; ECN 17-11-004B 8/24/2017...
  • Page 5: Dimensions

    Dimensions - 1-Person Top View 13-1/2" (343) (mm) 11" 3-1/8" (279) (79) 10-3/4" (273) 5" (127) 20-1/2" 11-1/2" (521) (292) 21-5/8" (549) 30" (762) Front View 5" 5" (127) (127) 19-1/8" (485) 22-1/2" (571) Bradley • 215-1869 Rev. B; ECN 17-11-004B 8/24/2017...
  • Page 6 Dimensions - 2-Person Top View (mm) 13-1/2" (343) 11" 3-1/8" (279) (79) 10-3/4" (273) 5" 20-1/2" (127) 11-1/2" (521) (292) 21-5/8" (549) 60" (1524) Front View 5" 5" (127) (127) 19-1/5" (485) 22-1/2" (571) Bradley • 215-1869 Rev. B; ECN 17-11-004B 8/24/2017...
  • Page 7 Installation LD-5010 Dimensions - 3-Person Top View (mm) 13-1/2" (343) 11" 3-1/8" (279) (79) 10-3/4" 5" (273) (127) 20-1/2" 11-1/2" (521) (292) Front View 5" 5" (127) (127) 19-1/5" (485) 22-1/2" (571) Bradley • 215-1869 Rev. B; ECN 17-11-004B 8/24/2017...
  • Page 8 Dimensions - 4-Person Top View (mm) 13-1/2" (343) 3-1/8" 11" (79) (279) 10-3/4" (273) 5" 20-1/2" (127) 11-1/2" (521) (292) 21-5/8" (549) Front View 5" 5" (127) (127) 19-1/5" (485) 22-1/2" (571) Bradley • 215-1869 Rev. B; ECN 17-11-004B 8/24/2017...
  • Page 9 17" 17" (432) (432) Deck depth must be 20-1/2" minimum for ADA, Deck depth must be 20-1/2" minimum for ADA, Enhanced Reach depth is only 20-1/2". Enhanced Reach depth is only 20-1/2" Bradley • 215-1869 Rev. B; ECN 17-11-004B 8/24/2017...
  • Page 10 7-7/8" 26-15/16" (372) (200) (685) 14-7/8" 9-1/16" (377) (230) 9-1/16" (230) 16-15/16" (430) 16-15/16" Deck depth must be 21" minimum for CSA (430) Deck depth must be 23-1/2" (597) minimum for QBC Bradley • 215-1869 Rev. B; ECN 17-11-004B 8/24/2017...
  • Page 11: Structural Rough-Ins

    RIM HEIGHT VERTICAL HEIGHT ADJUSTMENTS FIXTURE STYLE 34" No Adjustment Standard Height, ADA, TAS Subtract 3" Juvenile, ADA and TAS 33-1/16" Subtract 15/16" 34-1/16" Add 1/16" BCBC and QBC 33-7/8" Subtract 1/8" Bradley • 215-1869 Rev. B; ECN 17-11-004B 8/24/2017...
  • Page 12: Plumbing And Electrical Rough-Ins

    Finished Floor CODE DESCRIPTION QTY. 1½" NPT Drain, Stub-out 2" from wall ½" Nominal (⁵⁄₈" O.D. Comp.) Hot/Cold supplies, Stub-out 2" from wall 110V GFI protected electrical outlet (15 amp circuit breaker) Bradley • 215-1869 Rev. B; ECN 17-11-004B 8/24/2017...
  • Page 13: Drain Assembly

    (right side only). Soap Tube (Clear), 1/4" Water Tube, LED Cable (Gray), Soap Sensor Cable (Shorter Cable) and Air/Water Cable (Longer Cable) Attach the 1/4" supply tube to the 1/4" union elbow. Bradley • 215-1869 Rev. B; ECN 17-11-004B 8/24/2017...
  • Page 14: Aerator Installation

    Once fitup is correct, remove soap Box Lever container with pump attached and set aside. Soap container will be installed in a later step. Soap Control Soap Pump Box Flange Flange Soap Pump Groove Bradley • 215-1869 Rev. B; ECN 17-11-004B 8/24/2017...
  • Page 15: Bowl Mounting

    Grommets should hold drain cap securely against drain trough walls. To remove drain cap, carefully slip flat screwdriver into left or right hand corner of drain cap and gently lift upwards. Bradley • 215-1869 Rev. B; ECN 17-11-004B 8/24/2017...
  • Page 16: Dryer Motor Assembly

    RJ45 connector cable from motor and discard. Dryer Motor Feet RJ45 Connector Cable (unplug from motor and discard) Dryer Motor, 120V/60Hz Water Detector Wire Power Cord to GFCI Outlet Power Cord to DC Adapter Bradley • 215-1869 Rev. B; ECN 17-11-004B 8/24/2017...
  • Page 17: Attach Power Line Filter

    Installation LD-5010 Attach Power Line Filter Secure dryer power line filter to underside of bowl using (2) #10 x 1" screws provided. Bradley • 215-1869 Rev. B; ECN 17-11-004B 8/24/2017...
  • Page 18: Control Box And Valve Installation

    For tempered line installation, secure 1/2" supply hose valve. For TL option, only connect cold supply. to tempered water supply and TL valve inlet (not shown). Secure valve to bowl using (2) #10 x 1/2" long screws. Bradley • 215-1869 Rev. B; ECN 17-11-004B 8/24/2017...
  • Page 19: Soap Installation

    8 times. Soap Pump Groove For ease of soap container removal, pull tank while rotating bottom of tank out. Hook and Loop Strap Soap Container Top Flange Bracket Cable Tie Slot Bradley • 215-1869 Rev. B; ECN 17-11-004B 8/24/2017...
  • Page 20: Electrical Connections

    Using cover, turn cartridge gently until desired water temperature is reached. Water in excess of 110°F Do not turn past stops as this may (43°C) may cause scalding. damage unit. Push cover down and tighten screw. Bradley • 215-1869 Rev. B; ECN 17-11-004B 8/24/2017...
  • Page 21: Access Panel

    Rotate access panel up and secure by rotating thumbscrews to the closed position To open access panel, rotate thumb screw, slightly push panel up and swing access panel down. Do not remove thumbscrews. Bradley • 215-1869 Rev. B; ECN 17-11-004B 8/24/2017...
  • Page 22: Master Control Box

    WashBar LEDs will return to blue indicating that the WashBar is in Standby/Idle Mode. • The power LED on the master control box will be GREEN indicating the unit has power. Bradley • 215-1869 Rev. B; ECN 17-11-004B 8/24/2017...
  • Page 23 Dryer, water or soap has timed-out. This is caused by a obstructed sensor. Remove obstruction or wipe sensors with microfiber cloth to prevent from scratching sensor. System will return operational automatically once cleared. Bradley • 215-1869 Rev. B; ECN 17-11-004B 8/24/2017...
  • Page 24 • Red LED: Liquid Soap (3200 dispensing cycles occur before low soap counter needs to be reset. This is the Default setting when WashBar is reset.) • Blue LED: Foam Soap (4000 dispensing cycles occur before low soap counter needs to be reset.) Bradley • 215-1869 Rev. B; ECN 17-11-004B 8/24/2017...
  • Page 25 4. Remove USB flash drive if desired. Leaving USB flash drive in master control board will not affect WashBar performance. Software version will display on the LCD screen. Software can be reversed to a previous version by having only an earlier version of the software on the USB flash drive. Bradley • 215-1869 Rev. B; ECN 17-11-004B 8/24/2017...
  • Page 26 Cycle counts are displayed x1000 (ex. 65 = 65,000) • REV followed by the software revision • SOP followed by the soap cycle count • H2O followed by the water cycle count • AIR followed by the dryer cycle count Bradley • 215-1869 Rev. B; ECN 17-11-004B 8/24/2017...
  • Page 27: Cleaning And Maintenance

    For complete instructions on this additional maintenance, visit bradleycorp.com. Repair Kits: Terreon repair kits are available. Contact your Bradley representative or distributor for part numbers and pricing. Repair kits are made to order and have a shelf life of 30 days.
  • Page 28 Soap thickness is determined by a measurement called viscosity. Soap viscosity should be between 100 cps (centipoise) and 2500 cps for all Bradley soap dispensers. Thick soaps flow slower and inhibit the “flushing” action of the valves, which allows the soap to congeal in the valve and cause clogs.
