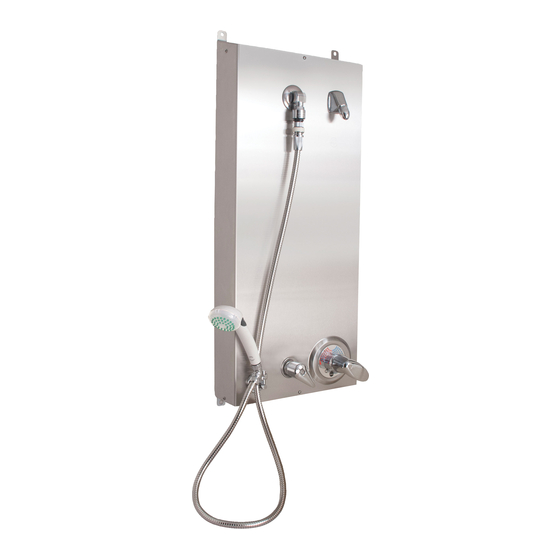

HN250
Valve Right/Seat Left shown
Valve Left/Seat Right is opposite
36" x 36" Enclosure is not provided
as standard equipment
Read the entire installation manual to ensure proper installation of your HN250 shower.
This manual covers all of the HN250 variations and options available, including shower seat and curtain
installation. Simply omit the steps which do not apply to the unit you are installing.
Valve Left/Seat Right version is shown throughout this manual. Valve Right/Seat Left is opposite.
Plumbing contractor shall be responsible for installing shower panel at the correct height to meet
accessibility requirements.
This installation manual and parts list should be filed by the building owner's maintenance department.
Product warranties and parts information may also be found under "Products" on our website at
www.bradleycorp.com.
215-1190 Rev. J: ECO 21-03-015
© 2021 Bradley
Page 1 of 5 7/30/2021
Installation
Bradley
HN250 Surface-Mounted
Shower
Table of Contents
Pre-Installation Information . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Components and Shower Stall Dimensions . . . . . . . . . . . . . 2
Installation Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-5
Cleaning Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
IMPORTANT
ADA Compliant
®
P.O. Box 309
Menomonee Falls, WI 53052 USA
800 BRADLEY (800 272 3539)
+1 262 251 6000
www.bradleycorp.com
Advertisement
Table of Contents
Related Manuals for Bradley HN250
Summary of Contents for Bradley HN250
- Page 1 Read the entire installation manual to ensure proper installation of your HN250 shower. This manual covers all of the HN250 variations and options available, including shower seat and curtain installation. Simply omit the steps which do not apply to the unit you are installing.
-
Page 2: Pre-Installation Information
300 pounds) . Overview The Bradley ADA compliant HN250 comes assembled for job site installation . When installed in a 36" x 36" stall, the HN250 provides a shower which meets ADA accessibility codes . Check local codes for dimensional compliance . -
Page 3: Installation Instructions
48"-60" 1/2" NPT Hot and Cold or A .F .F . Tempered Supply center of valves 48" A .F .F . 10-1/2" 11-1/8" top of grab bar 33" A .F .F . Bradley • 215-1190 Rev. J: ECO 21-03-015 7/30/2021... - Page 4 3 . Using the holes at the top of the shroud as a template, drill and tap #10-24 holes in the slip ring . 4 . Secure the shroud to the slip ring using the #10-24 screws (provided), #10-24 Screw Shroud Bracket Shower Body Bradley • 215-1190 Rev. J: ECO 21-03-015 7/30/2021...
-
Page 5: Cleaning Instructions
. A steel nail or screw may be the cause of the trouble . 4 . If the showerhead delivers an uneven spray, remove the showerhead from the unit, disassemble, and remove foreign matter . 5 . Reassemble showerhead and reinstall into unit . Bradley • 215-1190 Rev. J: ECO 21-03-015 7/30/2021...
