Thank you for your purchase of a NAUTICAM product.
At NAUTICAM, we pride ourselves in the ability to recognize the
requirements of professional as well as amateur underwater
photographers and fulfill them through the innovative designs of our
products. We strive to achieve a high level of user-friendliness by
allowing stress-free installation and easy operation of all important
functions of the camera.
Please read this manual carefully before using the product, this will
maximize its performance as well as its lifetime.
W W W W
ARRANTY ARRANTY ARRANTY ARRANTY
All NAUTICAM Products are warranted against any material and
manufacturing defects for two years from the date of purchase for
consumer use. This warranty only applies to products purchased from
authorized NAUTICAM dealers and does not extend beyond the original
retail purchaser.
To return your product for service, please contact your regional
authorized service center(s). Please note that this warranty only applies
when the product is purchased in the territory where the service center
is located.
NAUTICAM does not hold responsibility for damage, of any nature, to
any equipment used with and/or placed within our products.
NAUTICAM accepts no liability for any loss of captured images or the
inability to capture images even if it is due to the malfunctioning of our
products.
Unauthorized modifications and/or repairs of our products will
automatically invalidate the warranty.
P
RECAUTIONS
After installation of the port combo, please make sure the O-ring (s)
are free from debris and uneven surface issues.
A water-tight test without the camera inside the housing is highly
recommended after the changing of port and O-ring(s).
Do not use lubricants from other brands with the silicone rubber O-
ring on this housing, only use the lubricant provided by NAUTICAM.
Discontinue use immediately should you notice any leakage.
Do not open the product in a wet or sandy environment. Protect the
interior from moisture and debris in order to prevent malfunction or
leakage.
Defective products should be shipped to our distributors for service,
unauthorized disassembling and/or modifications could result in
malfunction or leakage.
P
ACKAGE CONTENTS
• N85-N120 50mm Port adaptor II
• Rear cap
• 1x Spare O-ring
• Lubricant
• Manual instruction card

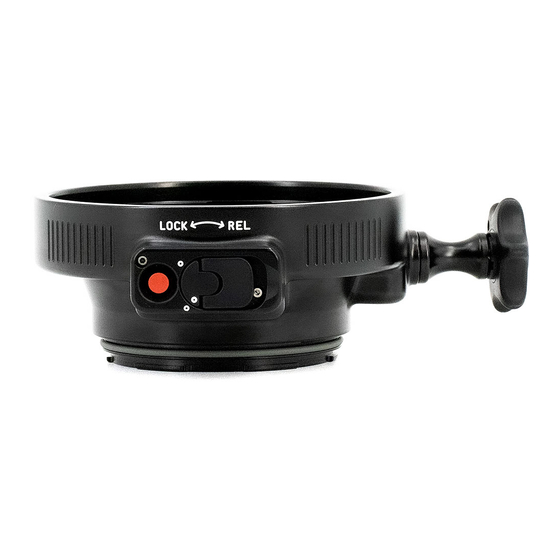

N85- - - - N120 50mm N120 50mm
N85 N85 N120 50mm N120 50mm

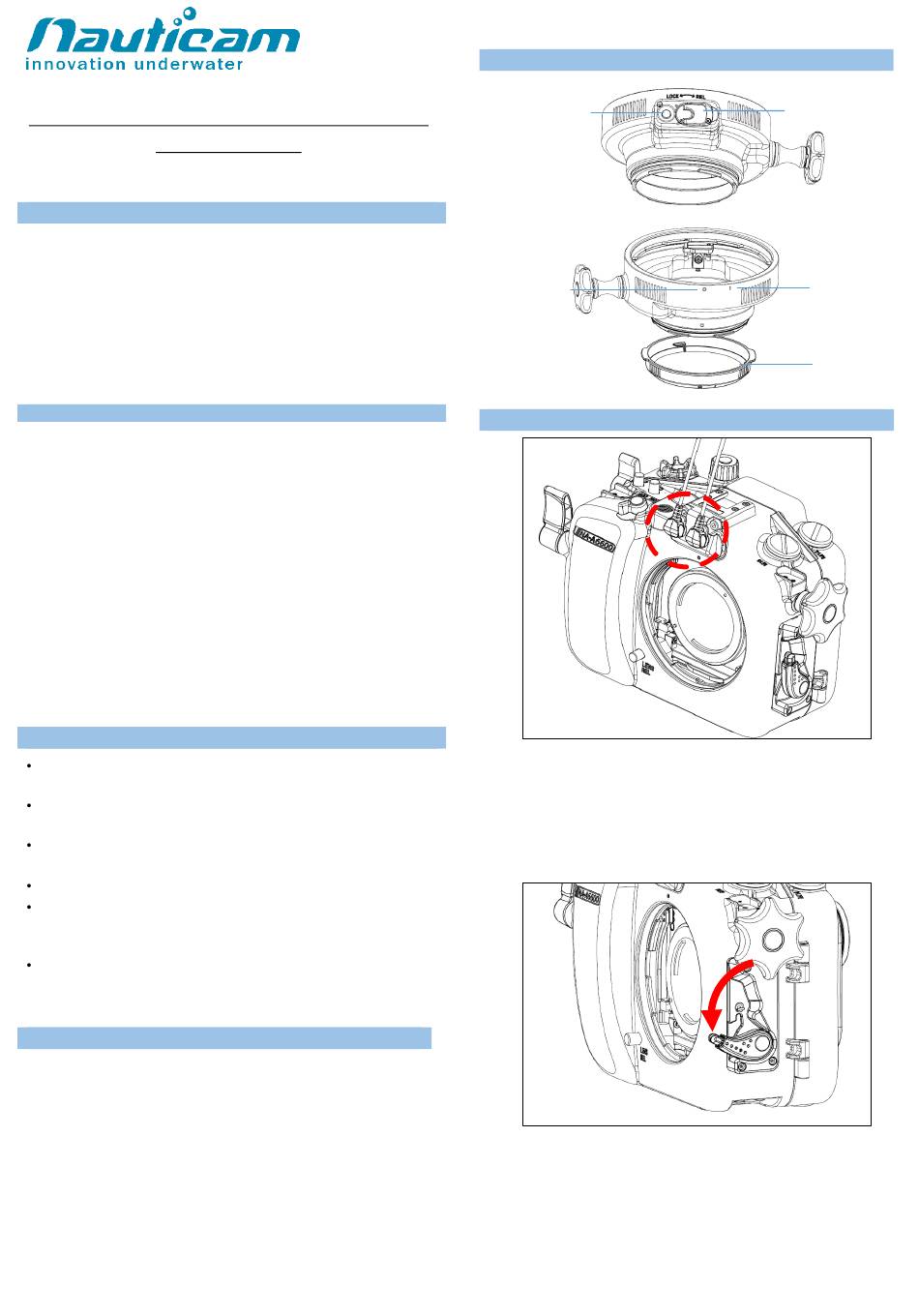

I P
DENTIFICATION OF ARTS
Port Release
Safety Button
Port Alignment
Index
M THE ADAPTOR
OUNT TO
1. Install the camera body into the housing first and mount
the optical fiber cables to the housing in the case of using
strobes.
Please refer to the housing manual for installing camera
and mounting port to the housing.
2. Turn the port locking lever of the housing to the release
position as shown.
Port Lock
Lever
Port
Alignment
'I' Mark
Port
Cap
A H
OUSING
