Nauticam N100 Flat Port 29 Instruction Manual

37601 37 601
37 37 601 601
N100 Flat Port 29 for Nikkor Z N100 Flat Port 29 for Nikkor Z N100 Flat Port 29 for Nikkor Z N100 Flat Port 29 for Nikkor Z
DX 16- - - - 50mm f/3.5 DX 16 50mm f/3.5- - - - 6.3 VR
DX 16 DX 16 50mm f/3.5 50mm f/3.5
Instruction Manual
F F F F
OREWORD OREWORD OREWORD OREWORD
Thank you for your purchase of a NAUTICAM product.
At NAUTICAM, we pride ourselves in the ability to recognize the
requirements of professional as well as amateur underwater
photographers and fulfill them through the innovative designs of our
products. We strive to achieve a high level of user-friendliness by
allowing stress-free installation and easy operation of all important
functions of the camera.
Please read this manual carefully before using the product, this will
maximize its performance as well as its lifetime.
W W W W
ARRANTY ARRANTY
ARRANTY ARRANTY
All NAUTICAM Products are warranted against any material and
manufacturing defects for two years from the date of purchase for
consumer use. This warranty only applies to products purchased from
authorized NAUTICAM dealers and does not extend beyond the original
retail purchaser.
To return your product for service, please contact your regional
authorized service center(s). Please note that this warranty only applies
when the product is purchased in the territory where the service center is
located.
NAUTICAM does not hold responsibility for damage, of any nature, to any
equipment used with and/or placed within our products.
NAUTICAM accepts no liability for any loss of captured images or the
inability to capture images even if it is due to the malfunctioning of our
products.
Unauthorized modifications and/or repairs of our products will
automatically invalidate the warranty.
P
RECAUTIONS
After installation of the port combo, please make sure the O-ring (s) are
free from debris and uneven surface issues.
A water-tight test without the camera inside the housing is highly
recommended after the changing of port and O-ring(s).
Do not use lubricants from other brands with the silicone rubber O-ring
on this housing, only use the lubricant provided by NAUTICAM.
Discontinue use immediately should you notice any leakage.
Do not open the product in a wet or sandy environment. Protect the
interior from moisture and debris in order to prevent malfunction or
leakage.
Defective products should be shipped to our distributors for service,
unauthorized disassembling and/or modifications could result in
malfunction or leakage.
P
ACKAGE CONTENTS
•

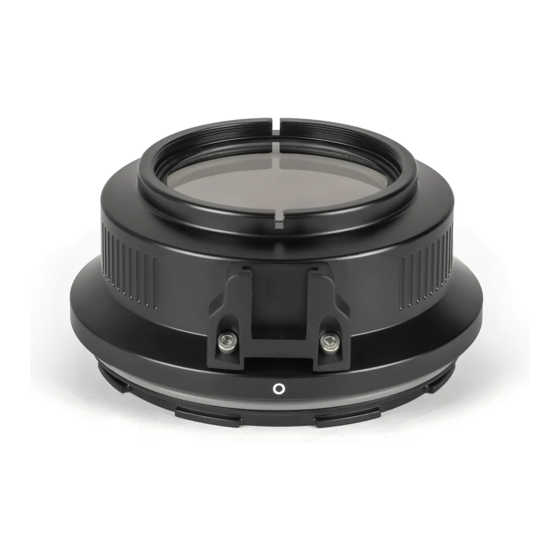

N100 Flat port 29
•
Front cap
•
Rear cap
•
1x Spare O-ring
•
Lubricant
•
Manual instruction card
•
Carry bag
6.3 VR
6.3 VR 6.3 VR

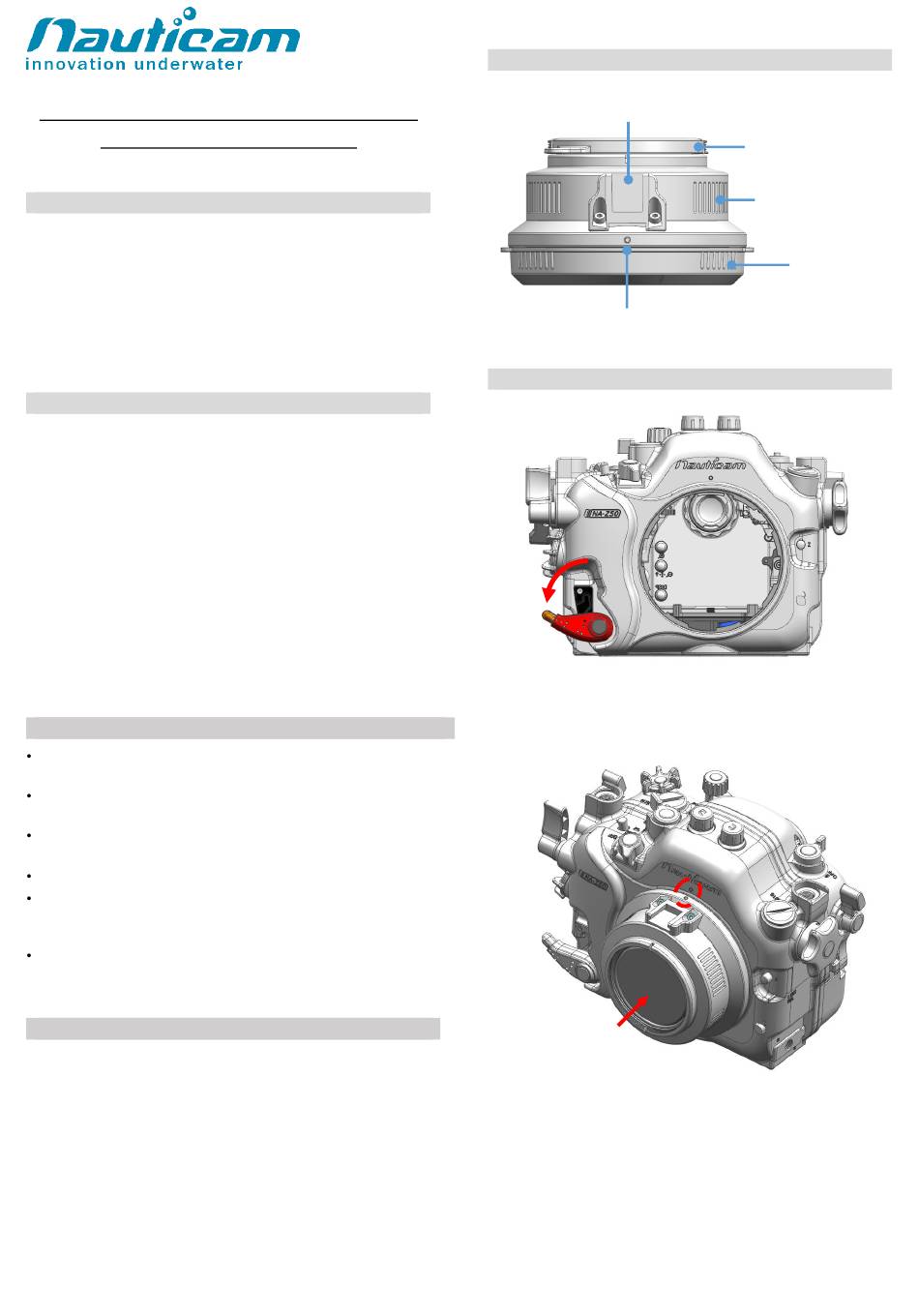

I I I I P P P P
DENTIFICATION OF DENTIFICATION OF ARTS ARTS
DENTIFICATION OF DENTIFICATION OF ARTS ARTS
Coldshoe mount
Alignment 'O' index
M M M M
OUNTING THE PORT OUNTING THE PORT
OUNTING OUNTING THE PORT THE PORT
1. Turn the port locking lever of the housing to the release
position as shown.
2. Align the port mounting indicates of the N100 Flat port 29
and the housing. . . .
Then, gently push the adaptor into the port opening of the
housing, until it cannot go in any further.
Front cap
N100 Flat port 29
Rear cap
