Summary of Contents for Nauticam 45 Viewfinder
- Page 2 1. All NAUTICAM Products are warranted against any material and manufacturing defects for one year from the date of purchase for consumer use. 2. NAUTICAM accepts no liability for any damage to and defects in the viewfinder caused by improper use and/or poor maintenance; it is the responsibility of the owner to carefully follow the instructions in this manual.
- Page 3 O-ring(s). 2. Do not use lubricants from other brands with the silicone rubber O-rings on this product, only use the lubricant provided by NAUTICAM. 3. Discontinue use immediately should you notice any leakage. 4. Store the product in a robust, shock-proof container during transportation.

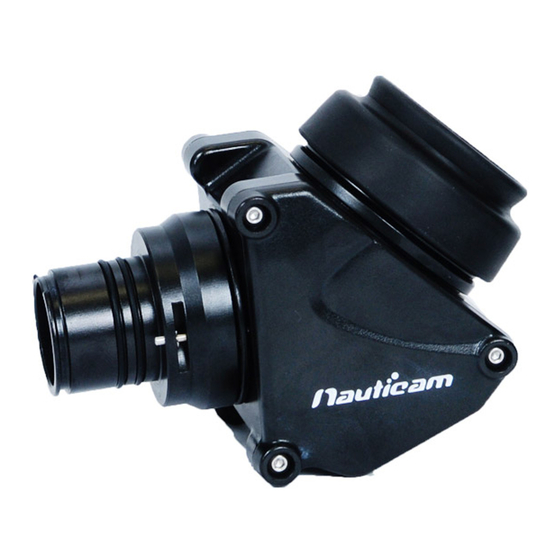

- Page 4 Specifications Identification of Parts Changing the viewfinder Care and Maintenance Construction Casing: Aluminium alloy Surface treatment: Anodised Lenses and prisms: Multi-layer coated optical glass Dimensions 81.4 mm (H) x 85.7mm (W) x 108.6 mm (D) Weight 460g...
- Page 5 Entrance pupil Dioptric adjustment knob Eyepiece...
- Page 6 Please follow the steps below to change from the 0.66x viewfinder to the Enhanced 180° viewfinder on Nauticam housings. 1. Remove the retainer O-ring of the 2. Take off the 0.66x viewfinder by 0.66x viewfinder inside the rear gently pushing it from the inside half of the housing.
- Page 7 Gently push the viewfinder The 45° viewfinder can be inside the mounting ring until rotated at any desired angle. it cannot go in any further.
- Page 8 O-rings with the provided lubricant before reinstalling it in the groove. A damaged O-ring should be discarded immediately and replaced only with one that is provided by NAUTICAM. 3. Replace the O-rings annually.
