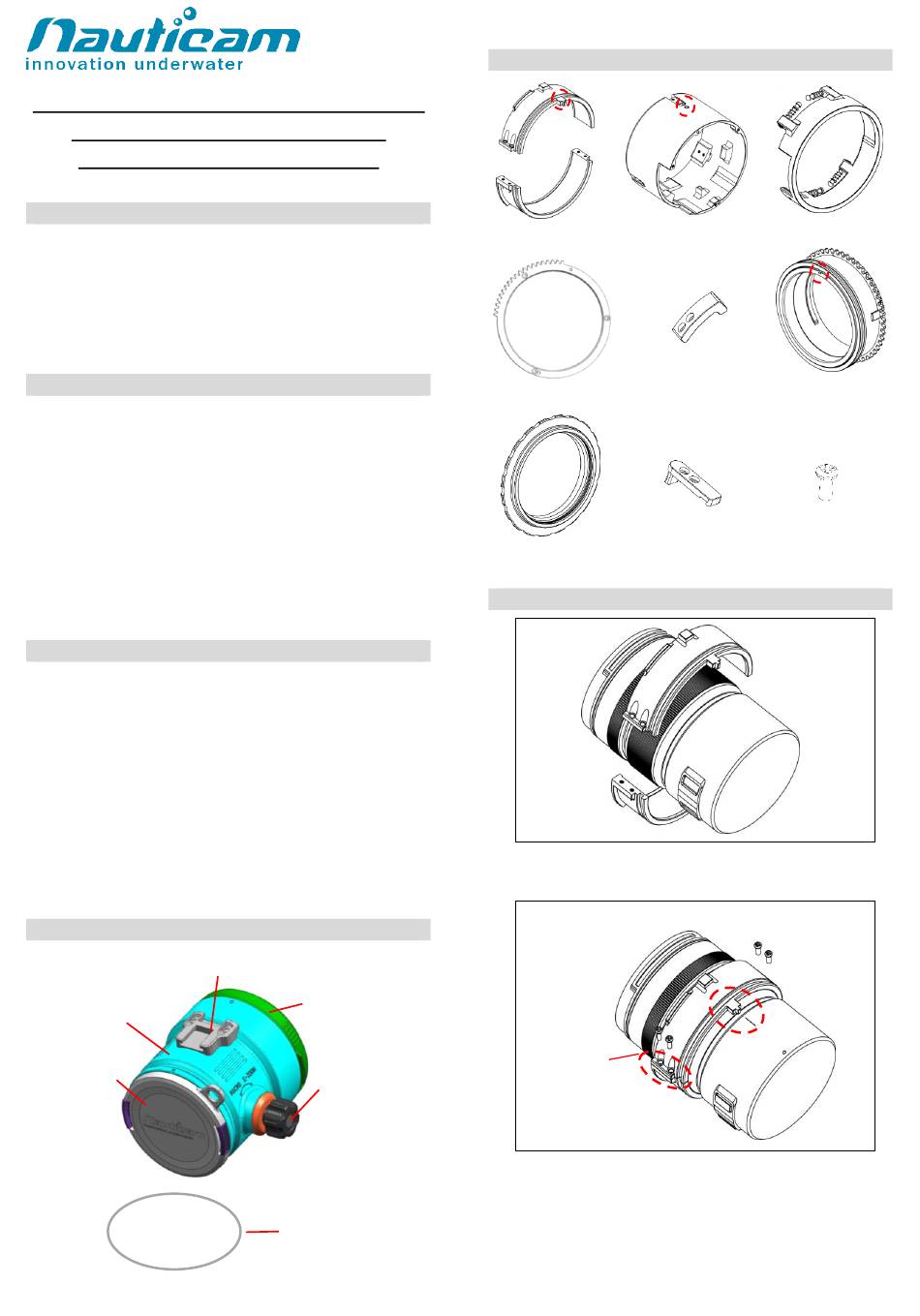

Nauticam 36060 Instruction Manual

Alignment index
36060
Macro Port and Zoom Gear Set for
Olympus 12-50mm EZ to use with
GH5/EM1X (for NA-GH5/EM1X)
Instruction Manual
F
OREWORD
Thank you for your purchase of a NAUTICAM product.
At NAUTICAM, we pride ourselves in the ability to recognize the requirements
of professional as well as amateur underwater photographers and fulfill them
through the innovative designs of our products. We strive to achieve a high
level of user-friendliness by allowing stress-free installation and easy
operation of all important functions of the camera.
Please read this manual carefully before using the product, this will maximize
its performance as well as its lifetime.
W
ARRANTY
All NAUTICAM Products are warranted against any material and
manufacturing defects for two years from the date of purchase for consumer
use. This warranty only applies to products purchased from authorized
NAUTICAM dealers and does not extend beyond the original retail purchaser.
To return your product for service, please contact your regional authorized
service centre(s). Please note that this warranty only applies when the product
is purchased in the territory where the service centre is located.
NAUTICAM does not hold responsibility for damage, of any nature, to any
equipment used with and/or placed within our products.
NAUTICAM accepts no liability for any loss of captured images or the inability
to capture images even if it is due to the malfunctioning of our products.
Unauthorized modifications and/or repairs of our products will automatically
invalidate the warranty.
P -
RE CAUTIONS
·
After installation of the port combo, please make sure the o-ring (s) are
free from debris and uneven surface issues.
·
A water-tight test without the camera inside the housing is highly
recommended after the changing of port and O-ring(s).
·
Do not use lubricants from other brands with the silicone rubber O-ring
on this housing, only use the lubricant provided by NAUTICAM.
·
Discontinue use immediately should you notice any leakage.
·
Do not open the product in a wet or sandy environment. Protect the
interior from moisture and debris in order to prevent malfunction or
leakage.
·
Defective products should be shipped to our distributors for service,
unauthorized disassembling and/or modifications could result in
malfunction or leakage.
I P P
DENTIFICATION OF ORT
Cold shoe

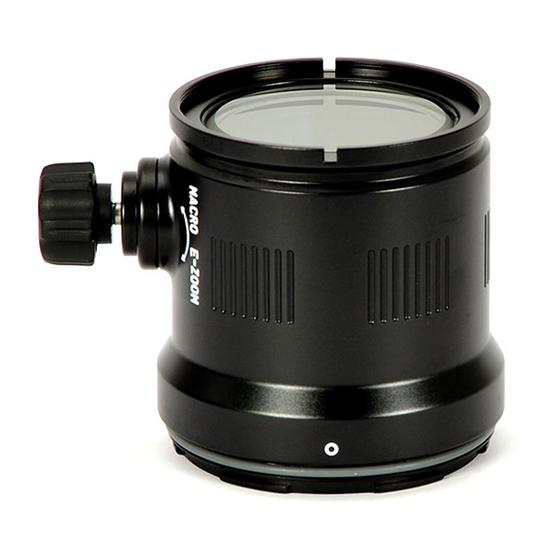

Macro Port
with M77 thread for
Olympus M.Zuiko Digital ED 12-
50mm F3.5-6.3 EZ
Plastic port cap
ARTS
Rear port cap
Control knob
Spare O-ring
I Z
DENTIFICATION OF OOM GEAR
Zoom gear tube - Zoom Gear
Two half-rings - Zoom Gear
Zoom gear ring - Zoom Gear
Positioning Block x3
Locking ring
- Macro Switch Gear
- Macro switch Gear
M G
OUNTING THE EAR ON A LENS
1. Mount the two half-rings on the lens zoom ring as indicated
in the diagram.
Gap between
the two half-rings
2. Align the alignment index on the ring with the line on the
lens before tightening the four screws. While tightening the
screws, make sure that the gaps on both sides are even and
the ring does not slip when turning at E-ZOOM mode.
P
ARTS
Spring ring - Zoom gear
Inner groove
Macro Switch Block
Macro switch gear
- Zoom Gear
Screw x12
Current as of 2019-05-16
