Nauticam 37304 Instruction Manual

Instruction Manual for N100 to N120
55mm / 35.5mm Port Adaptor
PN# 37304/37305
F
OREWORD
Thank you for your purchase of a NAUTICAM product.
At NAUTICAM, we pride ourselves in the ability to recognize the requirements
of professional as well as amateur underwater photographers and fulfill them
through the innovative designs of our products. We strive to achieve a high
level of user-friendliness by allowing stress-free installation and easy
operation of all important functions of the camera.
Please read this manual carefully before using the product, this will maximize
its performance as well as its lifetime.
W
ARRANTY
All NAUTICAM Products are warranted against any material and
manufacturing defects for two years from the date of purchase for consumer
use. This warranty only applies to products purchased from authorized
NAUTICAM dealers and does not extend beyond the original retail purchaser.
To return your product for service, please contact your regional authorized
service center(s). Please note that this warranty only applies when the product
is purchased in the territory where the service center is located.
NAUTICAM does not hold responsibility for damage, of any nature, to any
equipment used with and/or placed within our products.
NAUTICAM accepts no liability for any loss of captured images or the inability
to capture images even if it is due to the malfunctioning of our products.
Unauthorized modifications and/or repairs of our products will automatically
invalidate the warranty.
P -
RE CAUTIONS
·
After installation of the port combo, please make sure the O-ring (s)
are free from debris and uneven surface issues.
·
A water-tight test without the camera inside the housing is highly
recommended after the changing of port and O-ring(s).
·
Do not use lubricants from other brands with the silicone rubber O-ring
on this housing, only use the lubricant provided by NAUTICAM.
·
Discontinue use immediately should you notice any leakage.
·
Do not open the product in a wet or sandy environment. Protect the
interior from moisture and debris in order to prevent malfunction or
leakage.
·
Defective products should be shipped to our distributors for service,
unauthorized disassembling and/or modifications could result in
malfunction or leakage.

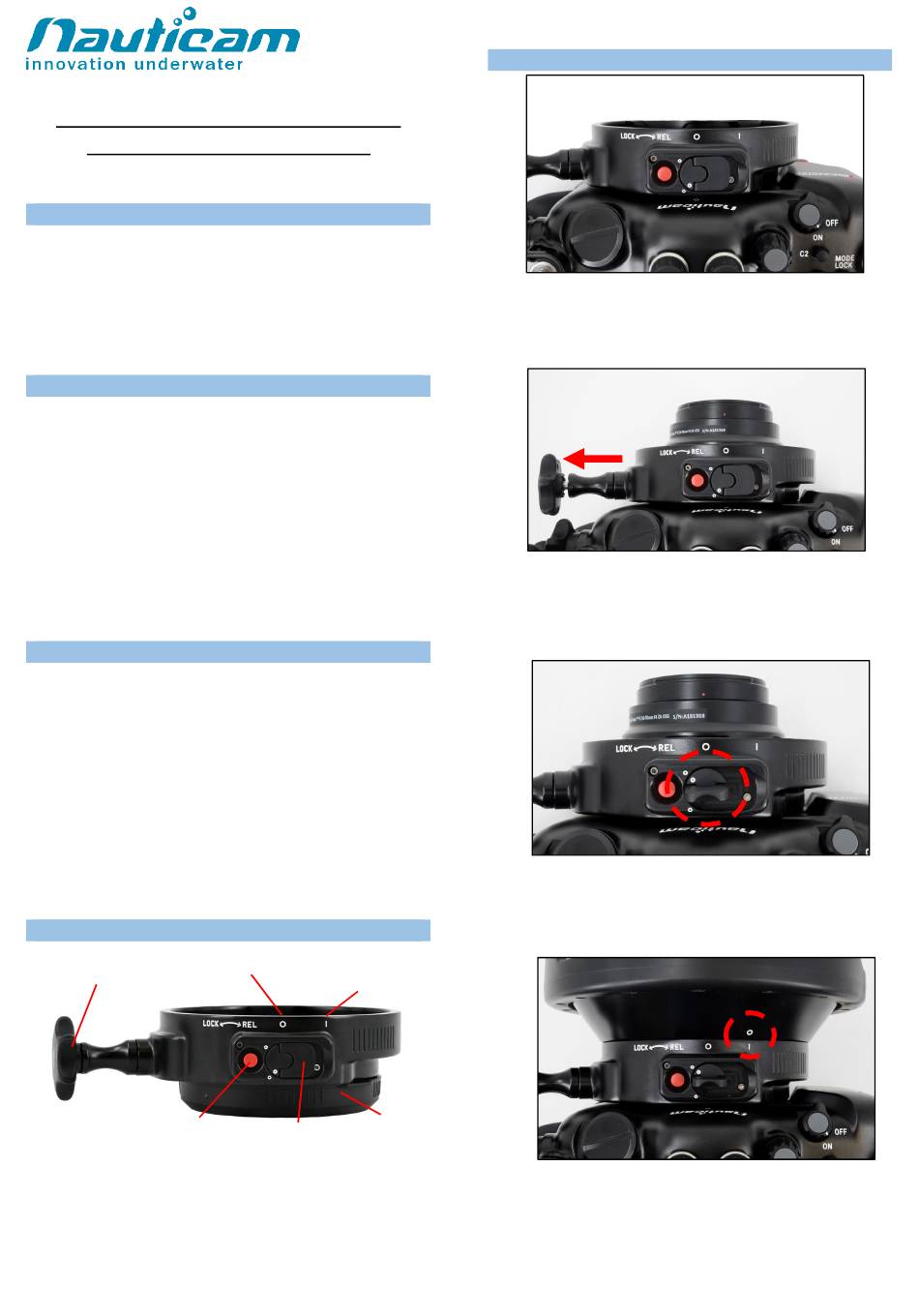

I P
DENTIFICATION OF ARTS
Port alignment index
Zoom/Focus Knob
Port Release Safety Button
Port alignment ''I'' mark
Port cap
Port Lock Lever
M H
OUNT ON THE OUSING
1. After install the camera body only into the housing, mount
the N100 to N120 35.5mm port adaptor II to the housing.
*Please refer to the housing manual for installing camera and
mounting port to the housing.
2. Mount the lens (with gears attached) on the camera.
Make sure that the knob on the adaptor is at its most
outward position before mounting/ dismounting the lens.
The knob should be left at this
3. Lift the Port lock/ release latch on the other side of the
adaptor. Then Press and hold the RED port release safety
button, turn the port lock/release latch clockwise until it
stops.
4. Align the "I" mark on the adaptor with the WHITE dot on
the port. Gently push the port towards the adaptor until it
cannot go in any further.
Current as of 2021-06-29
