Nauticam PL818 Instruction Manual

3 3 3 3 6062 6062 3 3 3 3 6063 6063 PL818 PL818 Zoom
6062 6062 6063 6063 PL818 PL818
Gears for Panasonic Leica DG Gears for Panasonic Leica DG
Gears for Gears for Panasonic Leica DG Panasonic Leica DG
Vario Elmarit 8 Vario Elmarit 8 Vario Elmarit 8 Vario Elmarit 8- - - - 18mm f/2.8
ASPH ASPH ASPH ASPH
Instruction Manual
F F F F
OREWORD OREWORD OREWORD OREWORD
Thank you for your purchase of a NAUTICAM product.
At NAUTICAM, we pride ourselves in the ability to recognize the
requirements of professional as well as amateur underwater
photographers and fulfill them through the innovative designs of our
products. We strive to achieve a high level of user-friendliness by
allowing stress-free installation and easy operation of all important
functions of the camera.
Please read this manual carefully before using the product, this will
maximize its performance as well as its lifetime.
W W W W
ARRANTY ARRANTY ARRANTY ARRANTY
All NAUTICAM Products are warranted against any material and
manufacturing defects for two years from the date of purchase for
consumer use. This warranty only applies to products purchased from
authorized NAUTICAM dealers and does not extend beyond the original
retail purchaser.
To return your product for service, please contact your regional
authorized service center(s). Please note that this warranty only applies
when the product is purchased in the territory where the service center is
located.
NAUTICAM does not hold responsibility for damage, of any nature, to any
equipment used with and/or placed within our products.
NAUTICAM accepts no liability for any loss of captured images or the
inability to capture images even if it is due to the malfunctioning of our
products.
Unauthorized modifications and/or repairs of our products will
automatically invalidate the warranty.
I I I I P P P P
DENTIFICATION OF DENTIFICATION OF DENTIFICATION OF DENTIFICATION OF ARTS ARTS ARTS ARTS
3 3 3 3 6062 6062 6062 6062

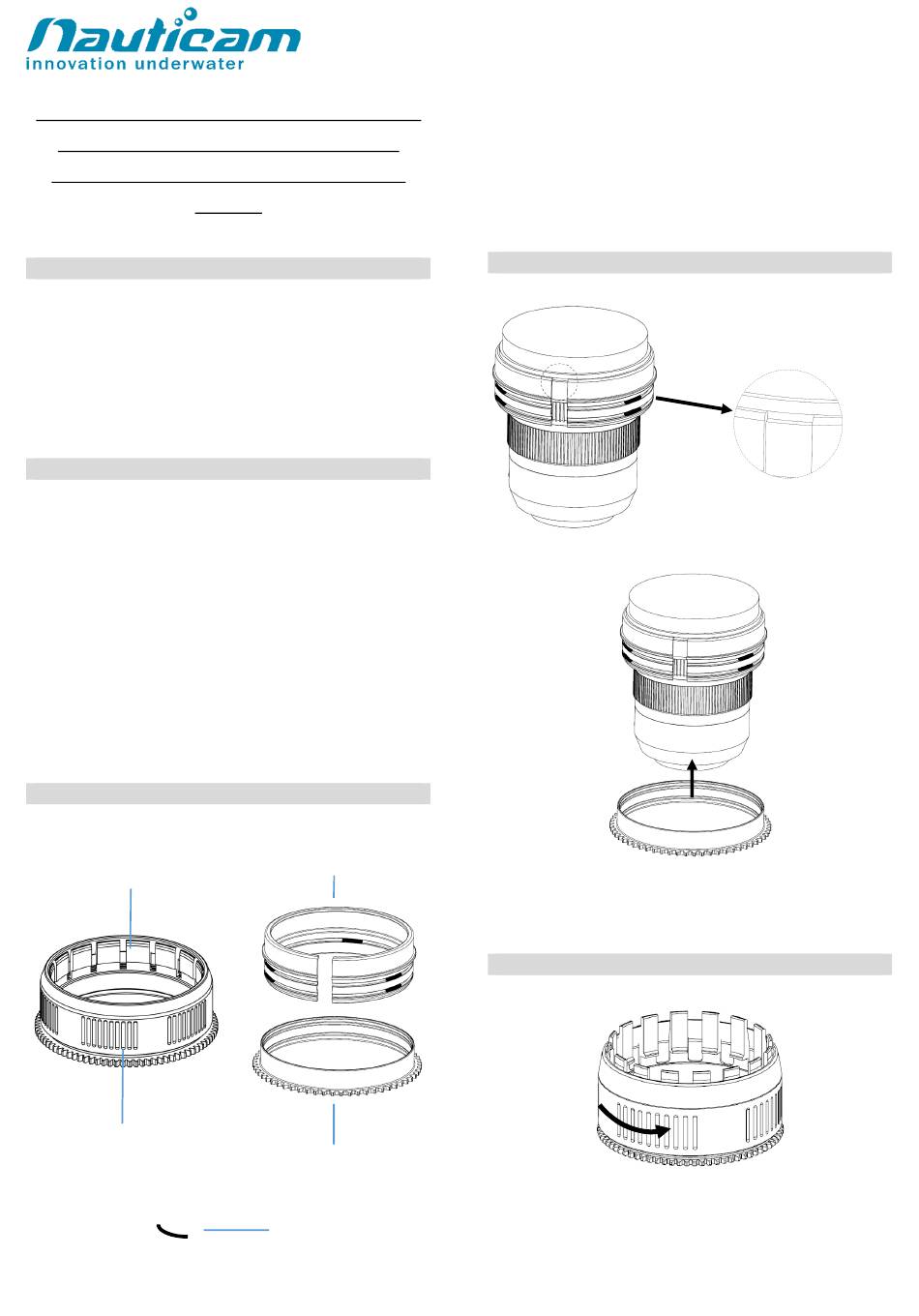

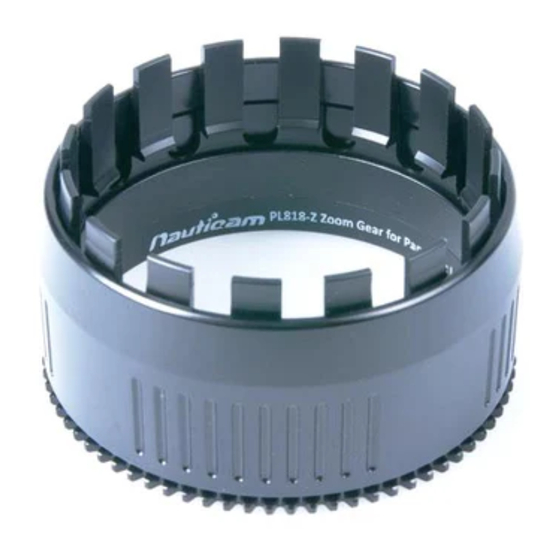

PL818-Z Zoom Gear
36062 36062 36062 36062
Locking Ring for PL818-Z
Zoom Gear
Zoom/ / / / Focus Focus
Zoom Zoom Focus Focus
18mm f/2.8- - - - 4.0 18mm f/2.8 18mm f/2.8 4.0 4.0 4.0
3 3 3 3 6063 6063
6063 6063
Plastic C-ring for PL818-F
Focus Gear
3 3 3 3 6063 6063 6063 6063
PL818-F Focus Gear
Spare Rubber grips
M M M M F F F F G G G G
OUNT THE OUNT THE OUNT THE OUNT THE OCUS OCUS OCUS OCUS EAR ON THE EAR ON THE EAR ON THE EAR ON THE LENS
1. Insert the Focus plastic C-ring as shown and place it over the lens
2. Insert the PL818-F Focus gear on the plastic C-ring until it reaches the
flange of the plastic C-ring.
M M M M Z Z Z Z G G G G
OUNT THE OUNT THE OOM OOM EAR ON THE LENS EAR ON THE
OUNT THE OUNT THE OOM OOM EAR ON THE EAR ON THE
1.Loose the zoom gear by turning the locking ring anti-clockwise.
LENS LENS LENS
LENS
LENS LENS
