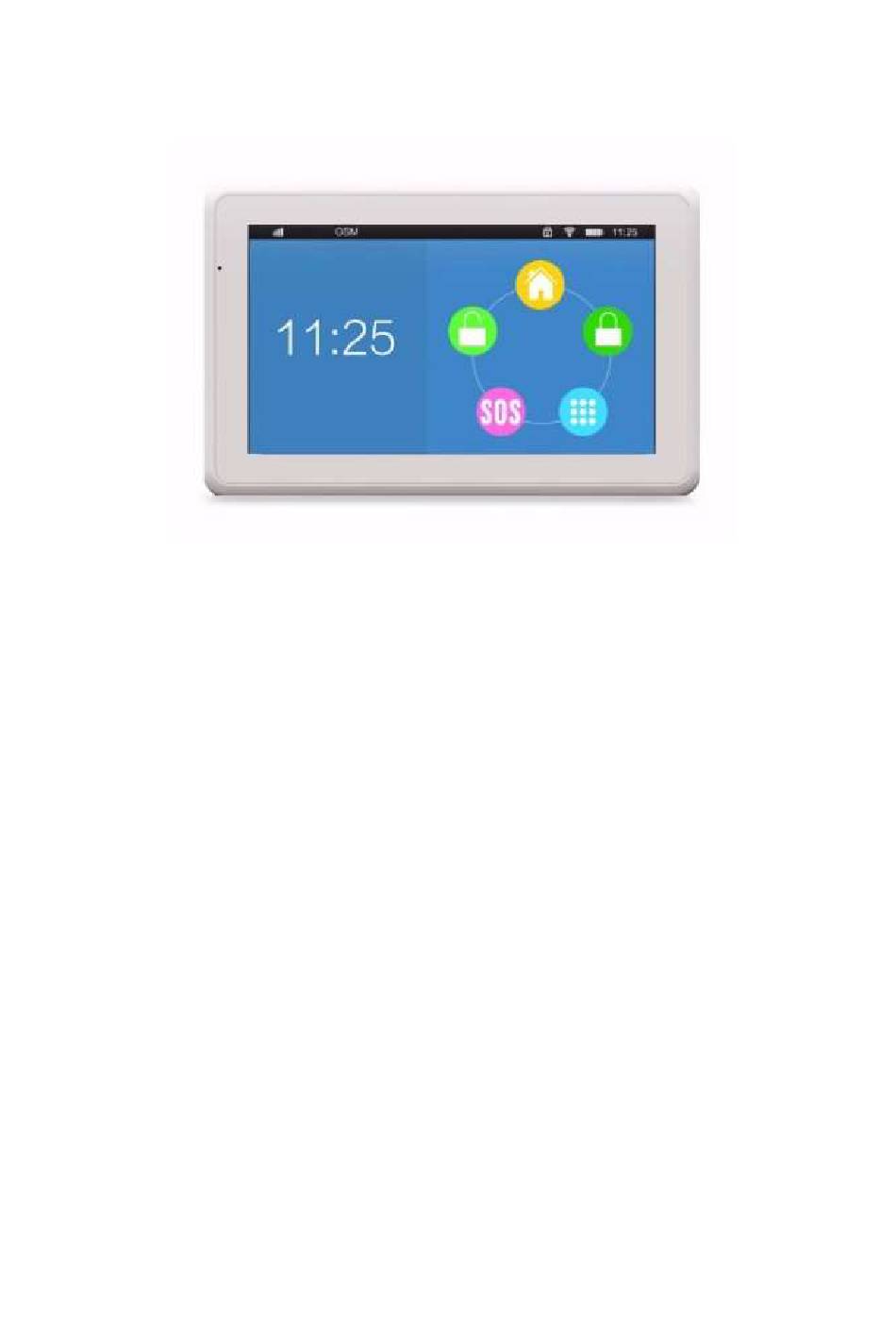

  • Page 1 KR-K7 User manual V1.0 Author: Bmol...
  • Page 2: Table Of Contents

    KR-K7 User manual Table of contents System Introduction ..........................5 Function Features ............................ 5 Host Installation ............................6 Zones and their function .......................... 8 Sensor zones ........................... 8 Wireless smart socket zones ......................8 Operation and Settings ..........................9 Initial Power-on ..........................9 Arm ..............................
  • Page 3 KR-K7 User manual Zone Attribute ..........................15 Zone attribute list ........................16 Network Event Code ........................17 Wireless Siren ..........................17 Programming the wireless siren ..................... 18 Wireless Siren Alarm settings ....................18 Program Wireless Smart Socket ....................18 Alarm Linkage wireless smart socket .................... 19 Appliance ...............................
  • Page 4 KR-K7 User manual 11.15 Restore factory ........................... 31 11.16 Phone Call ..........................32 11.17 Recording ........................... 32 11.18 Alarm Log ........................... 33 11.19 About me ............................ 34 SMS Setting and Command Chart ....................35 GPRS Management ........................... 39 13.1 Login Management Center ......................39 13.2...
  • Page 5: System Introduction

    KR-K7 User manual System Introduction The KR-K7 is a 7 inch TFT color screen with built-in powerful CPU master and excellent full touch screen menu alarm system. Embedded with high quality voice and clock chip, it is a high-end GSM /WIFI alarm system.
  • Page 6: Host Installation

    KR-K7 User manual Host Installation Host should be installed in the central position of the guarded area to optimize the receiving of the signals from all sensors. Keep away from large metal objects or appliances with high frequency interference, also avoid reinforced concrete walls and fire door barriers etc. The distance from the sensors to the host should be between 10-30 meters.
  • Page 7 KR-K7 User manual Host with stand Host with Wall mount...
  • Page 8: Zones And Their Function

    Before installing and configuring the system you need to know how zones work, because they play an essential role in the use and operation of the KR-K7 alarm system. You will notice that most settings use zone information to operate in a specific way by binding one or more zone specific settings to it.
  • Page 9: Operation And Settings

    KR-K7 User manual Operation and Settings 5.1 Initial Power-on According to the installation method, insert the SIM card to the card slot in the side of the host panel, then put the output of the powered adapter in the power supply hole of the host. At this time, host voice prompts “Welcome”, and switches the back-up battery to the ON status.
  • Page 10: Gprs

    KR-K7 User manual 5.7 GPRS When a sim card is installed it shows the name of the provider and the signal strength. When no sim is installed the message NO SIM is shown. 5.8 Sub Zones Arm/Disarm Setting In Picture 5-1, there are 10 small circle at the top of main page, representing the first 10 zones, red means armed and blue means disarmed.
  • Page 11: Settings

    KR-K7 User manual Settings In Picture 6-1, the settings screen is shown Picture 6-1 6.1 Alarm Number The panel will use the alarm number(s) when alarming. On the alarm number page, 8 groups of numbers can be set and each number can be configured in what way the communication is performed (Call, SMS or CID).
  • Page 12: Edit/Delete Alarm Number

    KR-K7 User manual Edit/Delete Alarm Number To edit or delete single alarm number: after enter alarm number page and select number to be edited or deleted the host will pop up a small menu as shown in Picture 6-3. Select ‘Edit’ to change the number or select ‘Delete’...
  • Page 13: Accessory Management

    KR-K7 User manual Accessory Management 7.1 Remote Controls Remote controls give the ability to remotly control the functions arm, disarm, emergency and silent. These functions can be operated directly without having to operate the host and entering the security code. The host can learning up to 99 different remote controls.
  • Page 14: Delete Remote Control

    KR-K7 User manual Delete Remote Control Delete remote control in single zone: after enter remote control page as shown in Picture4-4, select the zone needed to be deleted and press key [OK],or delete all the remote controls by press key [DELETE ALL] at the top-right corner.
  • Page 15: Delete Sensors

    KR-K7 User manual Picture 7-3 Delete Sensors In a single zone: Enter the zone page and select the sensor you need to delete and in the popup press [DEL]. To delete all sensors in a single zone: Enter a zone page and press [DELETE ALL] to delete all the sensors in the selected zones.
  • Page 16: Zone Attribute List

    KR-K7 User manual Zone attribute list Zone Attribute Explanation of this attribute and preferred sensors INSTANT Alarms in both Armed en Home (stay) status.   (Normal) Use: For sensors that monitor the outer ring of the armed area, that need no sound in disarmed mode.
  • Page 17: Network Event Code

    KR-K7 User manual 7.4 Network Event Code The selected Event Code shall be updated to the server for the remote security monitoring using the K7 app. When an event occurs in a zone it shows in the app the selected event code for this zone.
  • Page 18: Programming The Wireless Siren

    KR-K7 User manual Programming the wireless siren To program the wireless siren press the set button for 3 seconds until the indicator light is on. It is now in program mode that will last about 20 seconds. In the wireless siren page of the panel, switch ‘wireless siren’...
  • Page 19: Alarm Linkage Wireless Smart Socket

    KR-K7 User manual 7.7 Alarm Linkage wireless smart socket As Picture 7-7, in the wireless socket page of the panel you are able to switch output with alarm ON or OFF, The system default status is ON. If output with alarm is ON, the smart socket will be switched on when the panel alarms, and the smart socket will be OFF if the panel is disarmed or panel stops alarming.
  • Page 20: Appliance

    KR-K7 User manual Appliance This function is for use of wireless smart sockets that will enable you to control electrical devices like lamps, televisions etc. from the host or app. They are 20 groups, each can contain one or multiple smart sockets.
  • Page 21: Outlet Timer

    KR-K7 User manual 8.2 Outlet timer With the outlet timer you can switch on/off outlets like lights etc. on a timely base. This can be handy in situations like when you are on holiday. If programmed correctly it will switch on the lights like you where home, preventing burglars from choosing your house due to a uninhabited state.
  • Page 22: Gprs Setting

    KR-K7 User manual GPRS setting Enables the use of GPRS to communicate with the host. Mainly for use by Protection companies. Picture 9-1 As Picture 9-1, it is a page about mobile network. The default is off. WIFI settings You can connect the panel with WIFI in order to use the K7 app for remote controlling the alarm and sockets.
