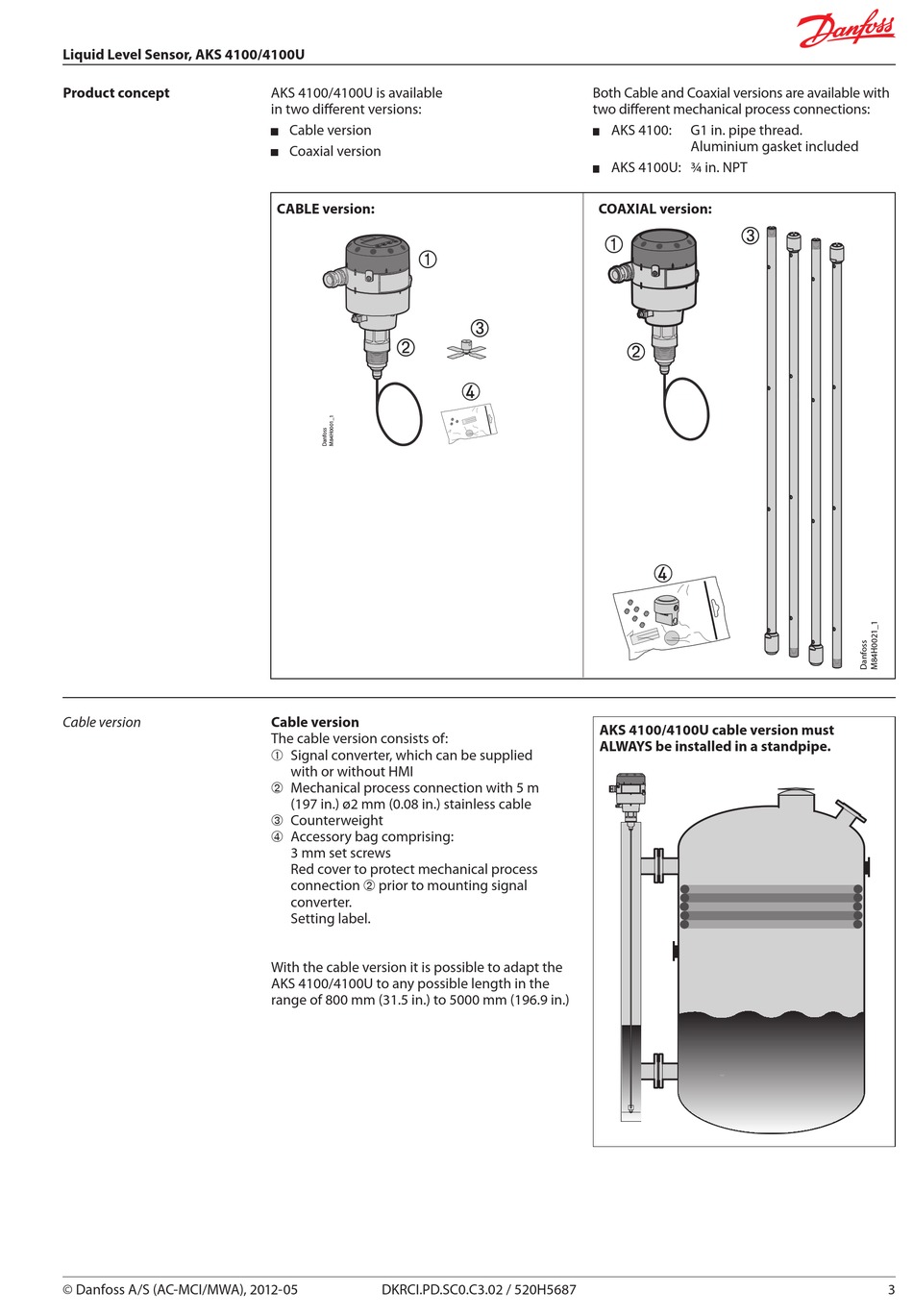

Liquid Level Sensor, AKS 4100/4100U

Product concept

Cable version

© Danfoss A/S (AC-MCI/MWA), 2012-05
AKS 4100/4100U is available
in two different versions:
Cable version
Coaxial version
CABLE version:
Cable version
The cable version consists of:
 Signal converter, which can be supplied
with or without HMI
 Mechanical process connection with 5 m
(197 in.) ø2 mm (0.08 in.) stainless cable
 Counterweight
 Accessory bag comprising:
3 mm set screws
Red cover to protect mechanical process
connection  prior to mounting signal
converter.
Setting label.
With the cable version it is possible to adapt the
AKS 4100/4100U to any possible length in the
range of 800 mm (31.5 in.) to 5000 mm (196.9 in.)
DKRCI.PD.SC0.C3.02 / 520H5687
Both Cable and Coaxial versions are available with
two different mechanical process connections:
AKS 4100:
G1 in. pipe thread.
Aluminium gasket included
AKS 4100U: ¾ in. NPT
COAXIAL version:
AKS 4100/4100U cable version must
ALWAYS be installed in a standpipe.
3
