Danfoss AKS 4100 Instructions Manual
  1. Manuals
  2. Brands
  3. Danfoss Manuals
  4. Accessories
  5. AKS 4100
  6. Instructions manual

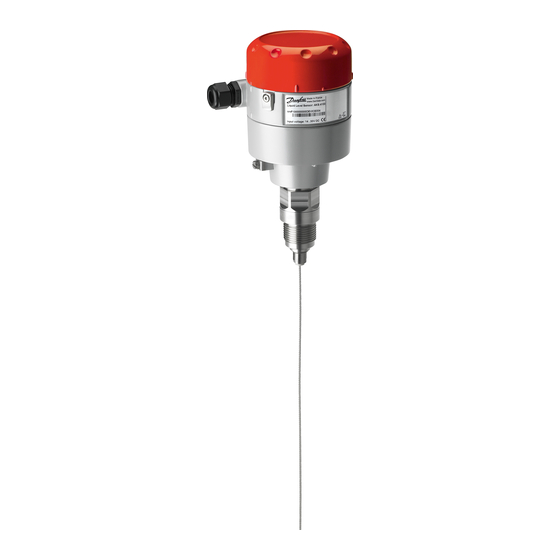

Danfoss AKS 4100 Instructions Manual

Coaxial d14 version
Hide thumbs Also See for AKS 4100:

Advertisement

Quick Links

Download this manual See also: Installation Manual
Reference point
50 mm
(2 in.)
36 mm
(1.4 in.)
© Danfoss A/S (AC-MCI/MWA), 11-2013
Instruction
Type AKS 4100/4100U
Coaxial D14 version
Available lengths:
AKS 4100, 500 mm
AKS 4100, 800 mm
AKS 4100, 1000 mm
AKS 4100, 1200 mm
AKS 4100, 1500 mm
AKS 4100, 1700 mm
AKS 4100, 2200 mm
AKS 4100U, 19.2 in.
AKS 4100U, 30 in.
AKS 4100U, 45 in.
AKS 4100U, 55 in.
AKS 4100U, 65 in.
AKS 4100U, 85 in.
Fig. 1
Reference point
100 N
(23 lbs)
Fig. 4
DKRCI.PI.SC0.E5.02 / 520H5658
Push the wire
through the
center hole.
20 mm
(0.8 in.)
Danfoss
M84H0025_1
Fig. 2
Fig. 3
Fig. 5
1
