- Page 1 Teil 2 – Tomo 2 ZT03745 Edition 8 LIRE ATTENTIVEMENT CE MANUEL AVANT LA MISE EN SERVICE DE VOTRE ZODIAC. CAREFULLY READ THIS MANUAL BEFORE OPERATING YOUR ZODIAC. LEGGERE ATTENTAMENTE PRIMA DE INIZIARE IL MONTAGGIO DEL VOSTRO ZODIAC. VOR INBETRIEBNAHME IHRES ZODIAC VORLIEGENDES HANDBUCH AUFMERKSAM LESEN.

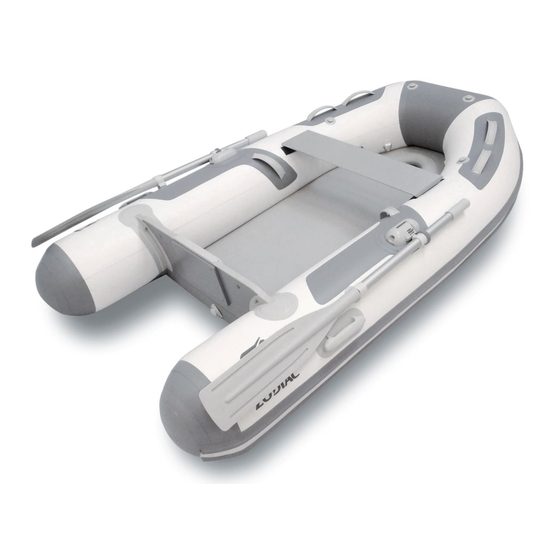

- Page 2 DEALS WITH TECHNICAL SPECIFICATIONS AND ASSEMBLY PROCEDURE OF THE BOAT AND ITS EQUIPMENT. VOLUME 2 TECHNICAL SPECIFICATIONS - ASSEMBLY PROCEDURE ZODIAC CADET AERO 240 AERO - 260 AERO CADET FAST ROLLER ACTI-V CFR 285 ACTI-V - CFR 325 ACTI-V CADET FAST ROLLER ACTI-V INT’L CFR 360 ACTI-V INT’L...
- Page 3 ASSEMBLY PROCEDURE We recommend that you follow the specific order of the assembly procedure. Proceed step by step and refer to the corresponding pages. PROCEDURE PAGE SECTION CHECK ON UNPACKING 1. inventory the elements composing your boat, and learn how to recognise them I - V DESCRIPTION ASSEMBLY...
- Page 4 BOAT ASSEMBLY CHOOSE A SMOOTH, CLEAN SURFACE. IF THE BUOYANCY TUBE WAS STORED AT A TEMPERATURE BELOW 0°C / 32°F, LEAVE IT AT 20°C / 68°F FOR 12 HOURS BEFORE UNFOLDING. INSTALLING THE REMOVABLE RECESSED STOWAGE BOX (INT’L SYSTEM ONLY). THE STOWAGE BOX MUST BE INSTALLED ON ITS FLANGE BEFORE INFLATING THE MAIN BUOYANCY TUBE.
- Page 5 ASSEMBLY Choose a smooth and clean surface IF THE BUOYANCY TUBE WAS STORED AT A TEMPERATURE BELOW 0°C / 32°F, LEAVE IT AT 20°C / 68°F FOR 12 HOURS BEFORE UNFOLDING. THE H2P INFLATABLE FLOOR: H2P INFLATABLE FLOOR DEFLATED Your boat is delivered with the inflatable floor and its keel already assembled. Cadet fast roller Acti-V - Air floor Inflating procedure: •...
- Page 6 INFLATION SYSTEM THE HIGH PRESSURE FOOT-PUMP Position A The pump has maximum flow but low pressure: this position is used to give shape rapidly to all inflatable parts of the boat. Position B The flow is inferior to position A, but provides pressure that is superior, with the same effort.
- Page 7 INFLATION Activate all valves into inflation position. Fit the hose to the foot-pump. To inflate your boat properly, the bottom side of the foot-pump must rest on a flat ground Pump evenly to inflate rapidly. DO NOT USE A COMPRESSOR OR A BOTTLE OF COMPRESSED AIR CAUTION A - INFLATE THE FLOOR (AERO) OR THE ACTI-V FLOORBOARD / KEEL ASSEMBLY 1.
- Page 8 PRESSURE The correct pressure for the buoyancy tube and the AirLite keel is 240 mb / 3,48 PSI, and 800 mb / 11,3 PSI for the H2P inflatable floor. If your boat is not equipped with an ACCESS pressure indicator, we recommend that you purchase one from your Dealer.
- Page 9 ASSEMBLY OF STANDARD EQUIPMENT TO ASSEMBLE AND INSTALL THE OARS: Clic THE REMOVABLE SEAT Install the seat before the boat is totally inflated.
- Page 10 DEFLATING / FOLDING THE BOAT We recommend that you leave the H2P floor in the boat when folding. To clean perfectly the boat proceed as follow: - Deflate the boat and the floor; then inflate again the boat a little. - Wash off with clear water, and then raise the boat’s nose to evacuate water and sand or rubbish.
- Page 12 DESCRIPTION - DESCRIZIONE - BESCHREIBUNG - DESCRIPCIÓN Cadet Aero Cadet FR Acti-V 360 – Int’L Dimensions - Dimensions - Dimensioni - Abmessungen - Dimenciones 2.85 3.25 3.60 2.40 2.60 9’ 4’’ 10’ 8’’ 11’ 10’’ 7’10“ 8’6“ (ft) 1.91 2.29 2.67...
- Page 13 DESCRIPTION - DESCRIZIONE - BESCHREIBUNG - DESCRIPCIÓN Toutes les mesures indiquées sont susceptibles de varier de + ou - 3% NOTE All dimensions indicated have a tolerance of +/ - 3% NOTICE : Tutte le dimensioni indicate hanno una tolleranza del +/- 3% NOTA : Alle angegebenen Abmessungen haben eine Toleranz von +/- 3%.
- Page 14 DESCRIPTION - DESCRIZIONE - BESCHREIBUNG - DESCRIPCION Français English Italiano Deutsch Español fixation sac avant bow bag fixation attacco (borsa di Befestigung fijación bolsa de (option) (option) prua ) (Bugstausack) proa (opcional) quille gonflable inflatable keel chiglia gonfiabile Luftkiel quilla hinchable Valve de valvola di main buoyancy...
- Page 15 DESCRIPTION - DESCRIZIONE - BESCHREIBUNG - DESCRIPCION Cadet Aero 240 Aero – 260 Aero Cadet Fast Roller Acti-V 285 - 325 / VI...
- Page 16 DESCRIPTION - DESCRIZIONE - BESCHREIBUNG - DESCRIPCION Cadet Fast Roller Acti-V 360 Int’L 22 1 / VI...
- Page 17 DESCRIPTION - DESCRIZIONE - BESCHREIBUNG - DESCRIPCION Cadets Fast Roller Acti-V - Cadet Fast Roller Acti-V Int’L. Plancher H2P - H2P air floor - PagliolatoH2P - Herausnehhmbarer H2P - suelo H2P ☺ Cadet Fast Roller Acti-V Int’L : Boite - Box – Koffer – Cilindro – Vano. ☺...
- Page 18 1, Quai de Grenelle 75015 PARIS - FRANCE Cadets Aero – FR Code ZT03745 Edition 8...
