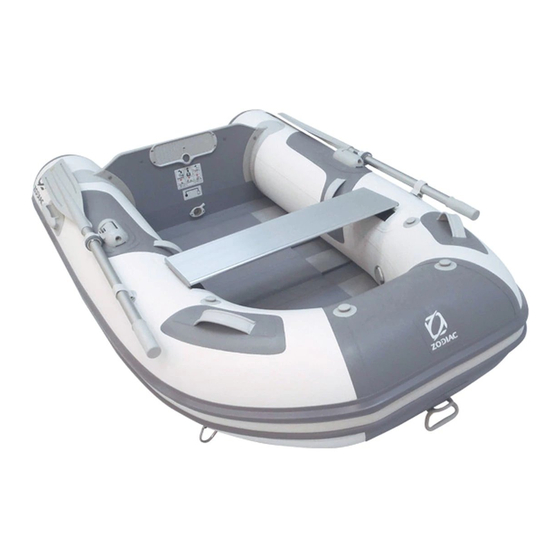

Summary of Contents for Zodiac CADET ROLL UP 200
- Page 1 Tome 2 - Volume 2 Teil 2 - Tomo 2 CADET CADET ROLL UP 200 - 240 - 260 CADET SOLID 260 - 285 - 310 – 340 ZT03744 Edition 17...
- Page 2 - VOLUME 2 DEALS WITH TECHNICAL SPECIFICATIONS AND ASSEMBLY PROCEDURE OF THE BOAT AND ITS EQUIPMENT. VOLUME 2 TECHNICAL SPECIFICATIONS - ASSEMBLY PROCEDURE ZODIAC CADETS CADET ROLL UP 200 - 240 - 260 CADET SOLID 260 – 285 – 310 – 340...
- Page 3 ASSEMBLY PROCEDURE We recommend that you follow the specific order of the assembly procedure. Proceed step by step and refer to the corresponding pages. PROCEDURE PAGE SECTION 1. inventory the elements composing your boat, CHECK ON UNPACKING and learn how to recognise them I - IV DESCRIPTION 2.
- Page 4 ASSEMBLY Choose a smooth and clean surface IF THE BUOYANCY TUBE WAS STORED AT A TEMPERATURE BELOW 0°C / 32°F, LEAVE IT AT 20°C / 68°F FOR 12 HOURS BEFORE UNFOLDING. CADET SOLID : INSTALL THE MARINE PLYWOOD FLOOR: • Sprinkle some starch in the angle (joint of the buoyancy tubes to the bottom) to facilitate fitting. CAUTION, NEVER USE TALCUM POWDER.
- Page 5 ASSEMBLY fig 1-A fig 1-B a- angle b- floorboard c- tube d- bottom fig 2 fig 3 fig 4 / 10...
- Page 6 ASSEMBLY CADET ROLL UP 200 - 240: INSTALL THE SLATTED FLOOR: Boat deflated, slide the slats in their pockets starting by the closest to the transom. If the slats are difficult to insert, lubricate it with liquid soap. CADET ROLL UP 260 : INSTALL THE ROLLING FLOOR:...
- Page 7 INFLATION SYSTEM The inflation system is composed of: THE FOOT PUMP a. connecting tip b. hose end piece c. hose base d. outlet for inflation THE STANDARD VALVES (1) cap (2) valve insert (3) base To activate the standard valves into INFLATION position: •...
- Page 8 INFLATION Activate all valves into inflation position. Fit the hose to the foot-pump. To inflate your boat properly, the bottom side of the foot-pump must rest on a flat ground Pump evenly to inflate rapidly. DO NOT USE A COMPRESSOR OR A BOTTLE OF COMPRESSED AIR CAUTION You can use the electrical air pump ACCESS (ask your Dealer).
- Page 9 PRESSURE The correct pressure for the buoyancy tube and the keel is 240 mb / 3,4 PSI (green area of the pressure indicator). If your boat is not equipped with a ACCESS pressure indicator, we recommend that you purchase one from your Dealer.
- Page 10 ASSEMBLY OF STANDARD EQUIPMENT TO ASSEMBLE AND INSTALL THE OARS: Clic THE REMOVABLE SEAT (EXCEPT C 200 ROLL UP) Install the seat before the boat is totally inflated. / 10...
- Page 11 DEFLATING / FOLDING THE BOAT 1. Deflate the boat. 2. Replace the valve protections. 3. Remove oars and equipment. 4. Remove the floorboard (For Cadets solid only - for cadets Roll up with a slatted floor, It is not necessary to remove the slats to fold the boat). 5.
- Page 12 DESCRIPTION DESCRIPTION DESCRIPTION DESCRIPTION DESCRIPTION DESCRIPTION - - - - BESCHREIBUNG DESCRIPTION DESCRIPTION BESCHREIBUNG BESCHREIBUNG BESCHREIBUNG DESCRIZIONE - - - - DESCRIPCIÓN DESCRIZIONE DESCRIPCIÓN DESCRIZIONE DESCRIZIONE DESCRIPCIÓN DESCRIPCIÓN...
- Page 13 DESCRIPTION - DESCRIPTION - BESCHREIBUNG - DESCRIZIONE - DESCRIPCIÓN CADET Roll up CADET Solid Rollup Rollup Rollup Solid Solid Solid Solid Dimensions - Dimensions - Dimensioni - Abmessungen - Dimenciones 2.00 2.40 2.60 2.60 2.85 3.10 3.40 6’7” 7’11” 10’2” 11’2”...
- Page 14 DESCRIPTION - DESCRIPTION - BESCHREIBUNG - DESCRIZIONE - DESCRIPCIÓN Toutes les mesures indiquées sont susceptibles de varier de + ou - 3% NOTE All dimensions indicated have a tolerance of +/- 3% NOTICE : Tutte le dimensioni indicate hanno una tolleranza del +/- 3% NOTA : Alle angegebenen Abmessungen haben eine Toleranz von +/- 3%.
- Page 15 DESCRIPTION - DESCRIPTION - BESCHREIBUNG - DESCRIZIONE - DESCRIPCIÓN Français English Italiano Deutsch Español fixation sac avant bow bag fixation attacco borsa di Befestigung fijación bolsa de (option) (option) prua (Bugstausack) proa (opcionale) válvula de la valve quille keel valve valvola di chiglia Ventile (Luftkeil) quilla...
- Page 16 DESCRIPTION - BESCHREIBUNG - DESCRIZIONE - DESCRIPCIÓN CADET SOLID 260 S – 285 S – 310 S – 340 S CADET ROLL UP 200 RU – 240 RU – 260 RU 18 10 IV / IV...
- Page 17 2 chemin de la Val Priout 31450 AYGUESVIVES FRANCE Cadets Solid- Roll up Code:ZT03744 Edition 17...
