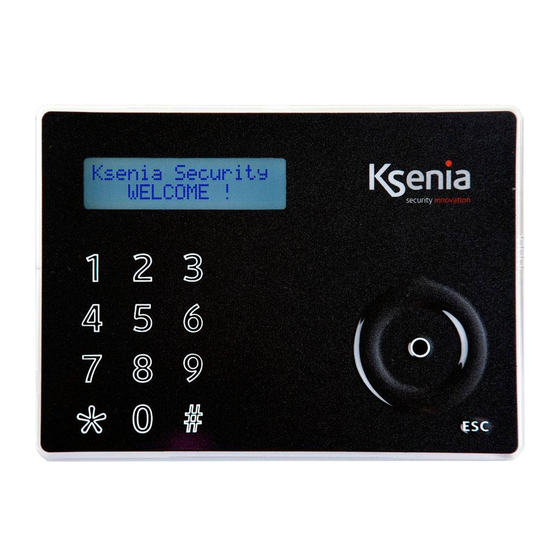

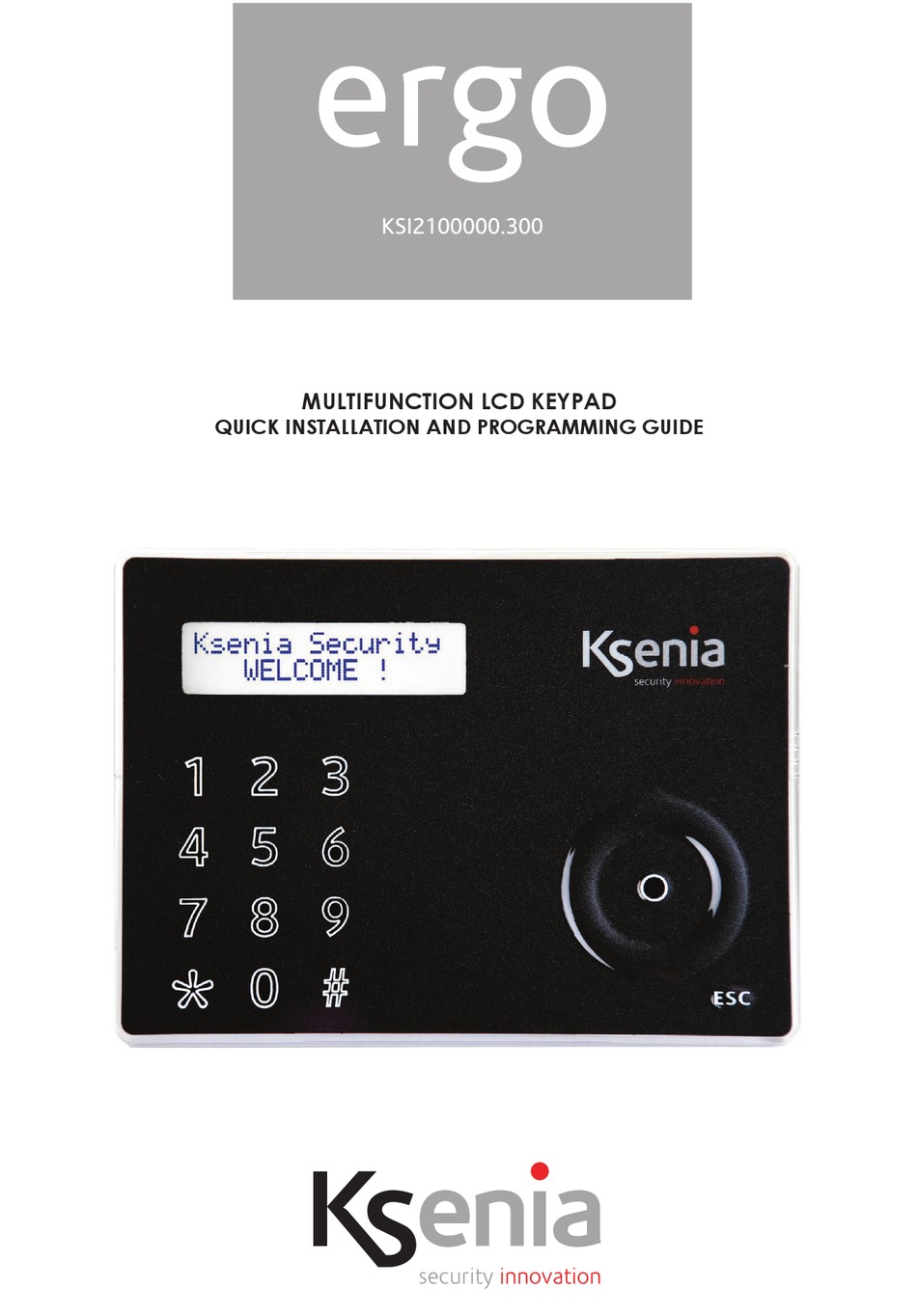

- Page 1 KSI2100000.300 MULTIFUNCTION LCD KEYPAD QUICK INSTALLATION AND PROGRAMMING GUIDE...
-
Page 2: Technical Data
All available functions, as detailed below, are really many and surprising. It can be customized in the 4 different Ksenia institutional colors (White, Black, Red and metallized Grey), simply by removing the transparent cover and interchanging the internal cover (Lexan) with one of those included in the package envelope, such operation is meant to be so easy and safe that can be done by the end-user at anytime and without risks. -
Page 3: Installation
KSI7500000.000 / KIT 1,5 m. cable for GSM/GPRS programming KSI2100001.300 / Table sustainer KSI2100002.300 / KIT keypad ergo INSTALLATION The keypad can be installed directly on a wall or put in an DIN 503 box set in the wall or leant on a ergo plain surface by means of the proper sustainer. -
Page 4: Installation Notes
Ksenia Security. Is recommended that the installed system should be completely tested at least once a month. Test procedures depends on the system configuration. Ask to the installer for the procedures to be followed. Ksenia Security srl shall not be responsible for damage arising from improper installation or maintenance by unauthorized personnel. - Page 5 FIGURE 1 - FRONT VIEW OF THE KEYPAD BASE Eyelets to be opened to Built-In installation on DIN 530 Eyelets to direct installation on a wall Locking device to fix the PCBA in the keypad base, left side Locking device to block the PCBA in the keypad base Place a fixing screw (wall mounting) to take advantage of tear tamper Place a fixing screw (DIN 530 box mounting) to take...
- Page 6 FIGURE 4 - TRANSPARENT COVER AND LEXAN Alphanumeric keypad with 1 a 9, * and # keys ESC key ENTER key Scroll, also including: 4.1. Left arrow 4.2. Down arrow 4.3. Right arrow 4.4. Up arrow Display RFID/NFC Area OPEN TRANSPARENT COVER To open the transparent front cover, please proceed as follows: Insert a flat screwdriver in the slot Pull outward...
-
Page 7: Keypad Function Description
After few minutes only you’ll be surprised about your confidence with the Keypad! ergo DEFAULT INSTALLER’S PIN: 123456 DEFAULT USER’S PIN: 147258 (active only after the KP has benn assigned to the... - Page 8 During the keypad block due to the activation of the cleaning function, the following information will be displayed on the screen: ergo • First line: “Keypad block” • Second line: forewarding “.” which marks the keypad block lasting. It means that, as the “.” gets to the last line character, the cleaning function ends and recovers its regular functionally.
- Page 9 Actually, “Scroll” is not a key but the zone borded by a circle (on the right side of ) typified by a little ergo depression. The action on this zone clockwise (to move forward) or anticlockwise (to move backwards) permits to: •...
- Page 10 1141 Budapest, Fogarasi út 77. 1095 Budapest, Mester u. 34. Tel.: *220-7940, 220-7814, 220-7959, Tel.: *218-5542, 215-9771, 215-7550, 220-8881, 364-3428 Fax: 220-7940 216-7017, 216-7018 Fax: 218-5542 Mobil: 30 531-5454, 30 939-9989 Mobil: 30 940-1970, 30 959-0930 www.delton.hu E-mail: info@delton.hu Web: www.delton.hu...
