ergo-X
BUS outdoor keypad
User and installer
manual
INTRODUCTION

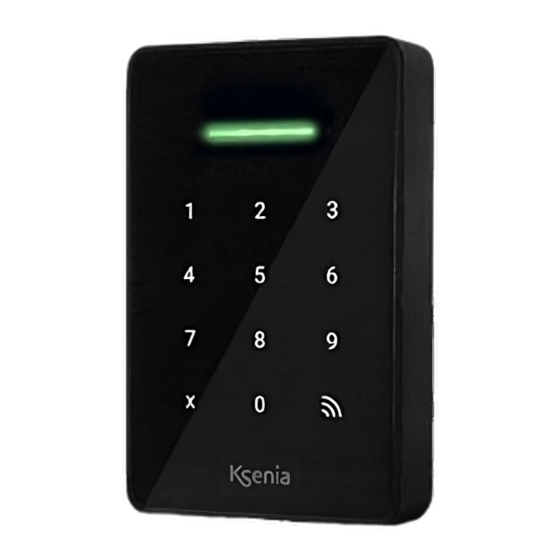

ergo-X keypad is an access control user interface connected to and powered by the BUS of lares 4.0 control
panel. The keypad case is compliant with IP65 protection degree so that it can be installed outdoors and
does not require additional protection.
ergo-X keypad allows the user to run any type of scenario in the following ways: place your mini-Tag near
RFID reader on the keypad and then press the key that activates the desired scenario; enter your code and
then press a programmed key (with PIN); long press the programmed key (without PIN).
Scenarios and colors of RGB led associated can be remotely customizable from Installer App.
ergo-X keypad has two I/O terminals that can be programmed as inputs with EOL resistors or as Open
Collector outputs up to 500mA each.
TECHNICAL CHARACTERISTICS
•
Power supply 13.8 Vdc
•
Consumption max 200mA
•
Mechanical membrane keypad
•
RFID Tag reader
•
Automatic backlight keys
•
RGB led with customisable colors for system status signalling
•
Feedback sound on operations
•
Tamper switch anti-removal
•
2 terminals I/O (OC 500 mA max)
•
Protection degree IP65 (compliant with EN 60529:1991 /A1:2000 /A2:2013)
•
Resistance impact protection IK09 (compliant with EN 62262:2002)
•
Temperature range: from -20°C to +55°C
•
Mount adapter plate + 2m unshielded cable (8x0.22)
•
Dimensions 72 x 113 x 20.5 mm (LxHxW)
•
Color: black, light grey
code R30045.110en
ed.06/2022
KSI2100031.302 - ergo-X black
KSI2100031.303 - ergo-X grey
www.kseniasecurity.com
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Ksenia ergo-X KSI2100031.302
Summary of Contents for Ksenia ergo-X KSI2100031.302
- Page 1 ergo-X BUS outdoor keypad User and installer manual KSI2100031.302 - ergo-X black KSI2100031.303 - ergo-X grey INTRODUCTION ergo-X keypad is an access control user interface connected to and powered by the BUS of lares 4.0 control panel. The keypad case is compliant with IP65 protection degree so that it can be installed outdoors and does not require additional protection.
-
Page 2: Product Description
PRODUCT DESCRIPTION ergo-X keypad RGB LED Numerical keys [0...9] and key [X] mini-Tag RFID Area Mount adapter plate Support hooks Holes for wall mounting with flat head screws (holes distance 40mm) Hole for locking screw code R30045.110en www.kseniasecurity.com ed.06/2022... - Page 3 RGB LED multicolor The led, if personalized, takes the same color as the arming status of the system. The colors associated with the preconfigured scenarios are: • red = total armed • blue = partial armed • green = disarmed The led lighting timer can be configured (P.V.: 0 = always ON, timer from 1 to 240 seconds).
-
Page 4: Installation
INSTALLATION Contents of the package: • 1 ergo-X keypad • 2m unshielded cable (8x0.22) • 1 mounting adapter plate • 1 adapter plate locking screw • 2 wall plugs and screws • 1 adhesive mounting template size 1:1 BUS and Terminals I/O cabling The example below shows how to connect ergo-X to lares 4.0 BUS using the 8x0.22mm unshielded cable: code R30045.110en www.kseniasecurity.com... - Page 5 Details of unshielded cable (8x0.22): = M2 = M1 = +P The example below shows how to connect M1 and M2 terminals using the 8x0.22mm unshielded cable. Characteristics of the two terminals are: • Input (Programmable zones) (connection to the ground terminal) •...
- Page 6 Mount adapter plate installation KEYPAD - BACK VIEW Support holes Housing section for bracket plate Tamper switch anti-removal Cable exit hole Keypad locking screw 1. Fix the mount adapter plate directly to the wall using two Ø 5mm expansion anchors and Ø 3.5mm flat head screws.
- Page 7 CONFIGURATION The software configuration supplied by Ksenia is required. Keypad programming instructions Open <BUS peripherals -> User interfaces -> ergo-X> menu, if correctly installed, ergo-X will show its serial number so it can be added in the system configuration by clicking on icon...
- Page 8 The contextual help for the page describes whatever here is omitted. For all the details, please consult the “lares 4.0 programming manual”. Terminals I/O programming instruction Two terminals (M1 and M2) are integrated inside the ergo-X, they can be programmed as inputs (from <System ->...
- Page 9 USER GUIDE The user can perform the following functions, the success of them depends on the system configuration. Note: a) when you press a key you can hear a beep feedback, if the buzzer is enabled, otherwise you can see a blinking of keys.
- Page 10 These products have been designed and made with the highest standards of quality and performance adopted by Ksenia Security. Is recommended that the installed system should be completely tested at least once a month. Test procedures depends on the system configuration. Ask to the installer for the procedures to be followed.
