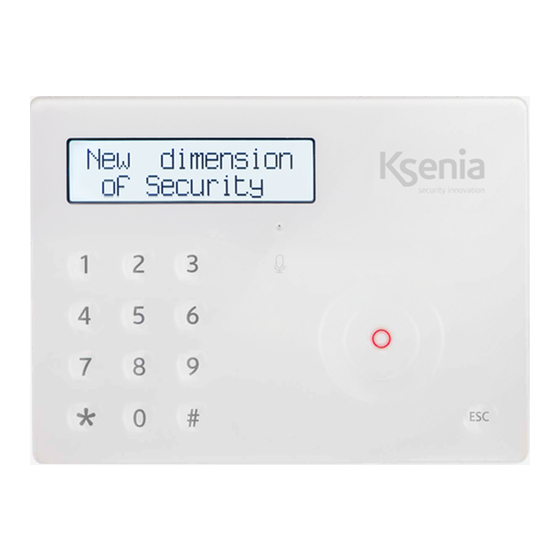

Ksenia ergo M Installation Manual

Ksenia ergo M Installation Manual

Multifunction lcd keypads
Hide thumbs Also See for ergo M:

Advertisement

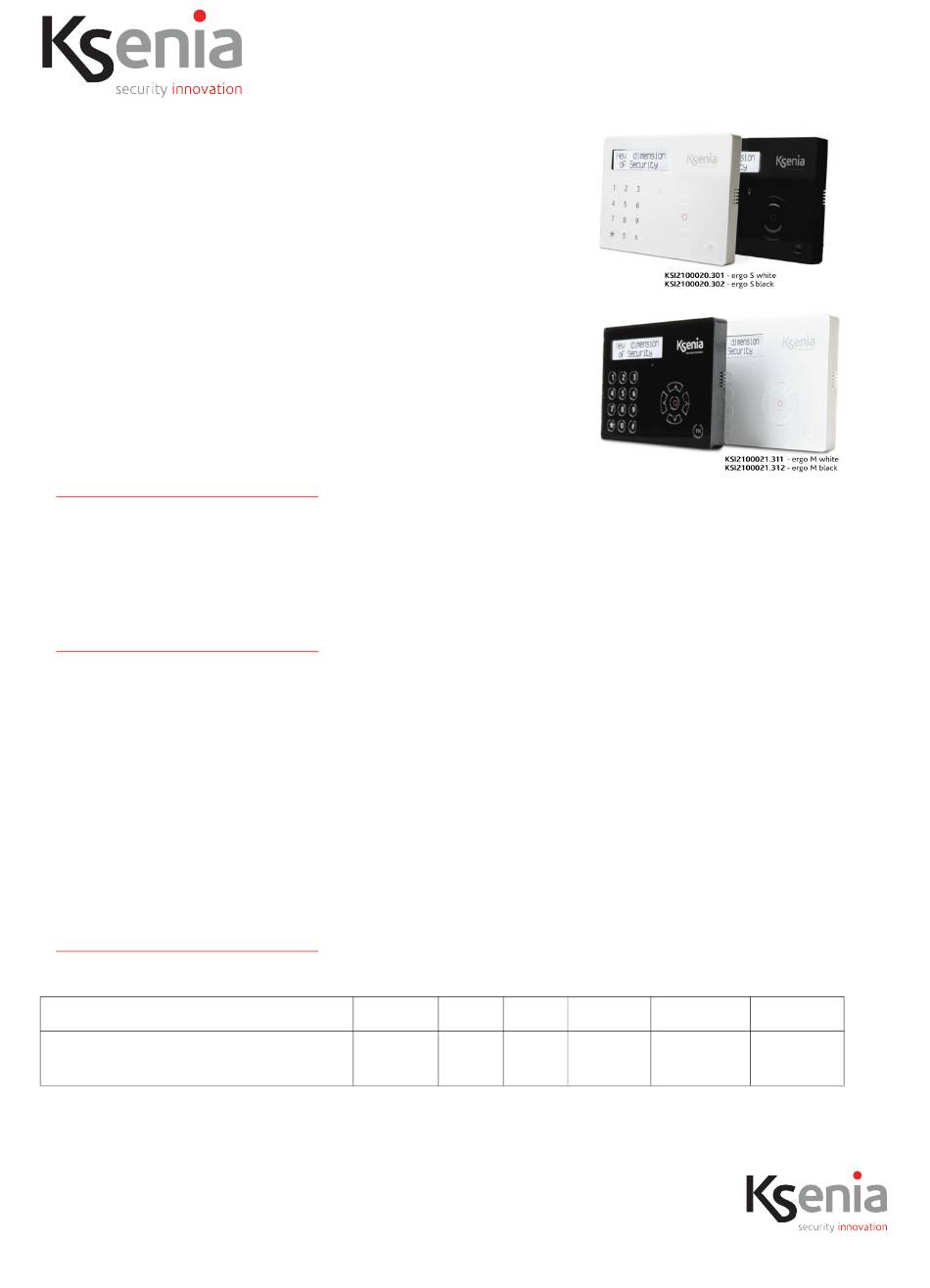

ergo M & ergo S
Multifunction LCD keypads
Installation guide
INTRODUCTION
The "ergo" series keypads with Wide Dot Matrix LCD Display can control, program and manage Ksenia lares
4.0 control panels.
MAIN CHARACTERISTICS
Display of system status;
Display of functioning parameters (date/time, active GSM network, GSM level, etc);
System commands (complete or partial arming, reset, activation of outputs terminals, phone calls, etc.);
RFID Tag reading to arm and disarm the intrusion detection systems set up with the lares 4.0 devices.
Full Programming of system parameters;
Programming of local parameters (audio volume, backlight levels and LCD contrast);
Touch sensitivity adjustment on 3 levels: high, medium, low. Average level of default (only for ergo S);
Keypad functionality exclusion for front cleaning purposes (ergo S only);
Remote Listening (ergo S only);
Vocal messages recording.
QUANTITY DATA
lares 4.0 models
Maximum number of User interfaces
(ergo S/M; volo; volo-in)
code R30021.110en
ed.10/2020
wls 96
16
40
3
6
24
40 wls
140 wls
24
40
www.kseniasecurity.com
644 wls
64

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ergo M and is the answer not in the manual?

Questions and answers

Summary of Contents for Ksenia ergo M

  • Page 1 M & ergo S Multifunction LCD keypads Installation guide INTRODUCTION The “ergo” series keypads with Wide Dot Matrix LCD Display can control, program and manage Ksenia lares 4.0 control panels. MAIN CHARACTERISTICS • Display of system status; • Display of functioning parameters (date/time, active GSM network, GSM level, etc);...
  • Page 2: Technical Data

    TECHNICAL DATA ergo M ergo S Wide Dot matrix LCD display (viewing area 79 x 19 mm) Keys in Capsense Technology Mechanical Keys RFID proximity Reader (20mm max TAGs capture area) Integrated Loudspeaker Remote listening function/Microphone “Fast Addressing System”: no need to pre-set the device address (automatic recongnition from the control pannel lares 4.0)
  • Page 3: Installation

    INSTALLATION ergo S (ergo M) keypads can be installed on any plain surface. Furthermore, on the back there are 3 easy- open holes, suitable for DIN503 and for 60mm-screw-distance boxes. STEP 1. OPENING To open the keypad, please proceed as follows: 1.
  • Page 4: Step 3. Cabling And Switching On

    1. Connect the cables to the terminals on the rear of the keypad. 2. Close the keypad properly (5). 3. At every new installation when ergo S (ergo M) is switched on (but not wire to BUS [A and B] clamps disconnected), the display will show the following information: •...
  • Page 5: Description Of The Keypad

    7. Audio mic hole DISPLAY The display shows all the information and the data that ergo S (ergo M) can manage, on two rows with 16 characters each also an automatic scroll system is implemented that allows you to view automatically strings up to 32 characters long.
  • Page 6 • Second line: the time for the cleaning will be marked by an increasing dot line, moving from left to right. When the line will be filled up the ergo S (ergo M) will be ready to accept commands again.
  • Page 7 SCROLL / ARROW KEYS Actually, “Scroll” is not a key but the zone delimited by a circle (on the right side of ergo S) (keys for ergo M) characterized by a little depression. The action on this zone clockwise (to move forward) or anticlockwise (to move backwards) permits to: •...
  • Page 8: Installer Menu

    INSTALLER MENU Access the installer menu with a PIN code (default: 123456). You can navigate the various items by pressing the keys once you have entered the installer menu: • ENTER: enter the sub-menu, confirm the values displayed or modified. •...
  • Page 9 NOTE : When you first switch on the keypad, the English menu will be displayed. To change the language, access the installer menu from the keypad via the webserver. CERTIFICATIONS ergo S ergo M Europe - CE, RoHS Europe - CE, RoHS, EN50131 grade 3 - class II...
  • Page 10: Environmental Care

    Test procedures depends on the system configuration. Ask to the installer for the procedures to be followed. Ksenia Security srl shall not be responsible for damage arising from improper installation or maintenance by unauthorized personnel. The content of this guide can change without prior notice from KSENIA SECURITY.
