Summary of Contents for Ksenia ergo wls KSI2100022.301

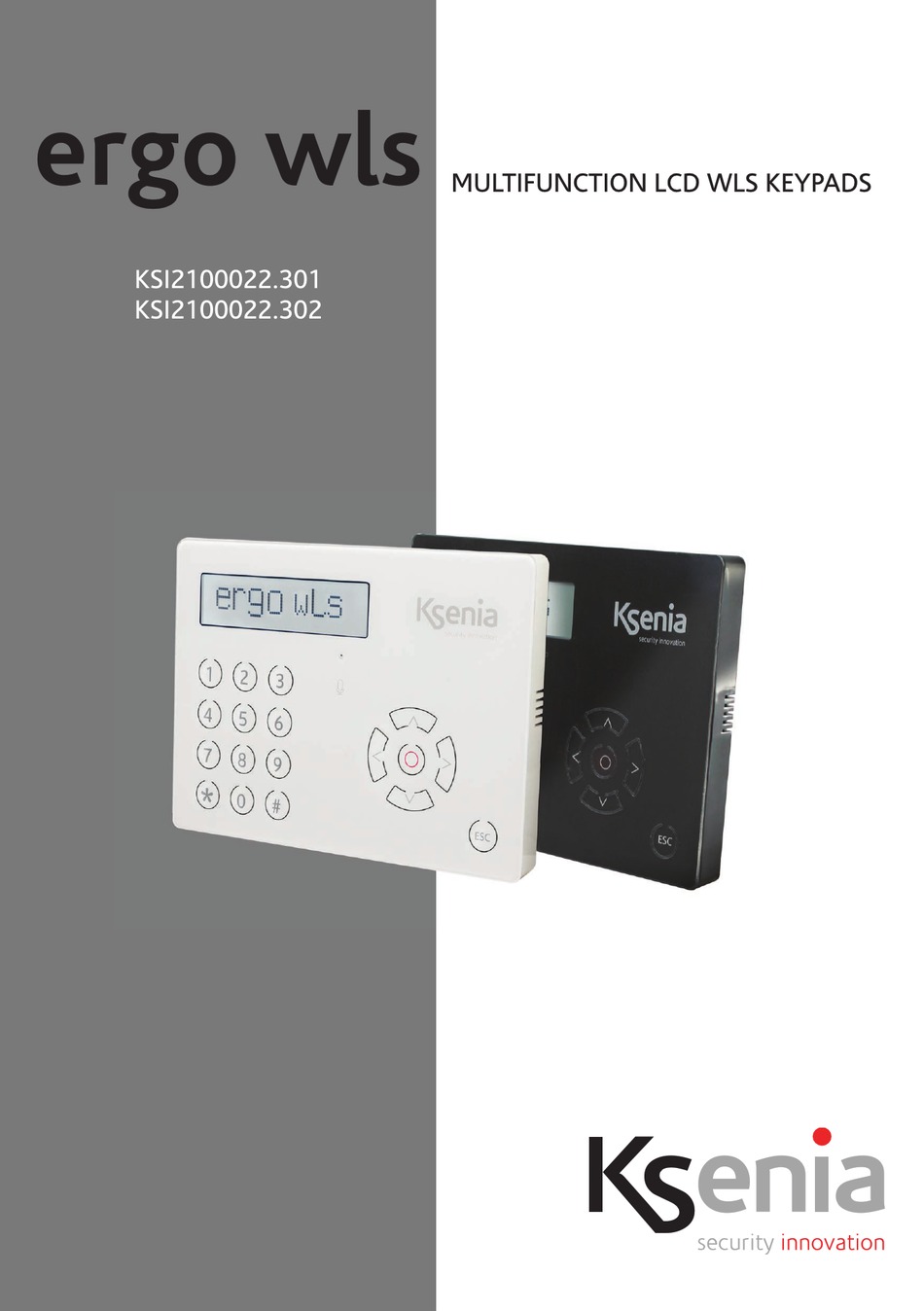

- Page 1 KSI2100022.301 KSI2100022.302...
-
Page 2: Technical Data
(détection automatique par la centrale lares / communicateur) Warning: Use only the original Ksenia Security batteries. In order to avoid damage to the device and to Keep the safe device operation guaranteed, it’s recommended to replace the battery within one month from the faulty battery signal. -
Page 3: Parts Description
PARTS DESCRIPTION FIGURE 1 - FRONT VIEW OF THE KEYPAD BASE Easy open hole to be opened to Built-In installation on DIN 530 box Eyelets for 60mm-screws-distance boxes Place a wall mount screw to enable anti opening and removal tamper Speaker Cable gland USB connector... - Page 4 FIGURE 3 - FRONT Alphanumeric keypad with 1 a 9, * and # keys ESC key ENTER key Scroll, also including: 4.1. Left arrow 4.2. Down arrow 4.3. Right arrow 4.4. Up arrow Display Audio mic hole USB Connector FIGURE 4 - OPENING To open the keypad, please proceed as follows: Push snap fingers ( A ) using a screw driver Pull outward...
-
Page 5: Operation Modes
OPERATION MODES ergo wls can be set to operate in six different ways: Mode 1 - Wireless keypad with non-rechargeable battery Mode 2 - Wireless keypad with rechargeable battery Mode 3 - Wired keypad (technical features as ergo M) on the docking station, or wireless if removed (with rechargeable battery) Mode 4 - Wired keypad (technical features as ergo M) but with wireless receiver (without battery) Mode 5 - Wired keypad (technical features as ergo M) but with wireless repeater (without battery) - Page 6 • Arming/Disarming state of the system • System ready or not ready to arm • Outdoor temperature (if in the system there is also a Ksenia siren imago WLS) USER MENU For system management there is also a short user menu. To enter the User menu simply enter one of the programmed user codes (default 000001) and press ENTER.
-
Page 7: Battery Level
4 Close the front cover by snapping the locking hooks (4) Warning: Use only original batteries Ksenia KSI7203019.000 To avoid damage to the device and continue to ensure the operation of the same, it is recommended to replace the battery within one month of reporting faulty battery. - Page 8 Docking Station and / or USB cable connecting a standard battery charger for Smartphone to the USB connector 7 (Figure 2 and Figure 3). It is possible to use only batteries Ksenia KSI7203709.000 model. Dispose used batteries according to the instructions.
-
Page 9: Installation Notes
( but not wire to bus ), the display will show the following information: • First line: “Ksenia Security” • Second Line: from the first character from the left the FW version loaded on the device (x.xx.xxx), as from the 10°... -
Page 10: Contrast Adjustment
DISPLAY ergo wls The display shows all the information and the data can manage. The display can show up to 2 lines ,16 characters each, but ergo has an automatic scroll system to show 32 characters rows. CONTRAST ADJUSTMENT Acting on keys “Left” or “Right” when keypad is idle, a sliding bar used for contrast adjustment will be enabled. The ENTER key will store the new contrast value, the ESC key will leave value unchanged. -
Page 11: Enter Key
ESC KEY The ESC key allows to exit the current menu, and go back to the previous level. This means that, whether in a branched menu, repeated clics on the key will be needed to get back, for example to main menu. A 2 S. -
Page 12: Arrow Keys
ARROW KEYS Slide forwards or backwards the menu entries: • Pick the configuration data to enter (which will only be the suitable ones for the changing data) such as: character, numbers, presetted values, etc. This area also allows to use the following functions: •...
