ergo-T & ergo-T plus
Touchscreen keypad
Installation guide
INTRODUCTION

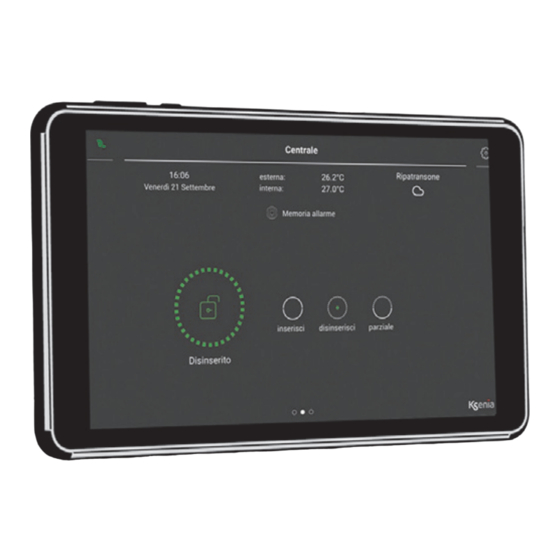

ergo-T and ergo-T plus are touchscreen keypads of the latest generation, they have a graphic interface, the
ideal command and control interface of lares 4.0 control panels.
They communicate with the control panel via LAN network thanks to their IP network interfaces. In this
way, not only it is possible to manage all the various functions related to Intrusion Security, but also the
functions of Video Surveillance, Access Control, what is today defined as Home Automation or Smart Home
in general (i.e. management of the various automations, lights, temperatures, motorized shutters,
appliances, irrigation, etc.).
Even though they use the network port, ergo-T and ergo-T plus are recognized by the control panel with a
fast acquisition process with no need of any configuration on the router; furthermore, they can be
supervised by the panel like a normal keypad on BUS.
code R30043.110en
ed.12/2020
www.kseniasecurity.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Ksenia ergo-T
Summary of Contents for Ksenia ergo-T
- Page 1 (i.e. management of the various automations, lights, temperatures, motorized shutters, appliances, irrigation, etc.). Even though they use the network port, ergo-T and ergo-T plus are recognized by the control panel with a fast acquisition process with no need of any configuration on the router; furthermore, they can be supervised by the panel like a normal keypad on BUS.
- Page 2 Operating system Android 7.0 Nand Flash Dimensions 243 x 172 x 343 mm Weight 557gr / with packaging: 1009gr QUANTITY DATA lares 4.0 models wls 96 40 wls 140 wls 644 wls Maximum number of ergo-T/ergo-T keypads code R30043.110en www.kseniasecurity.com ed.12/2020...
- Page 3 11 - Support hooks 12 - Housing for locking screws ergo-T plus PRODUCT DESCRIPTION 1 - ON/OFF button (long press turn ON/turn OFF, short press it goes in stand-by, in this mode the connexion with the central panel will be interrupted) 2 - Tone button 3 - Display capacitive touch: 10”...
- Page 4 5 - Keyboard bottom locking hooks 6 - Housing for locking screws 7 - Keypad fixing screws To improve the stability of the ergo-T plus keypad, place the 4 adhesive rubber feet provided, as shown in the following image: code R30043.110en www.kseniasecurity.com...
- Page 5 2.5 cm 2.5 cm Ø 2.2 cm Ø 2.2 cm Ø 2.2 cm Ø 2.2 cm 2.5 cm 2.5 cm 24.3 cm code R30043.110en www.kseniasecurity.com ed.12/2020...
- Page 6 To switch on the device, press the <ON/OFF> button for five seconds (see paragraph “Product description”). Once the startup phase has finished, you can open App lares 4.0 for ergo-T / ergo-T plus. At this point, from the "Installer" configuration program, open the menu <IP Devices -> ergo-T> where, if...
- Page 7 UPDATES The presence of FW updates for the ergo-T and ergo-T plus is notified on the <Panel Settings> button of the App lares 4.0, press it to update. On the next page, tap on the "Install updates" field. At the end the keypad will perform a restart of the App before returning to the "Home" page.
- Page 8 Test procedures depends on the system configuration. Ask to the installer for the procedures to be followed. Ksenia Security srl shall not be responsible for damage arising from improper installation or maintenance by unauthorized personnel. The content of this guide can change without prior notice from KSENIA SECURITY.
