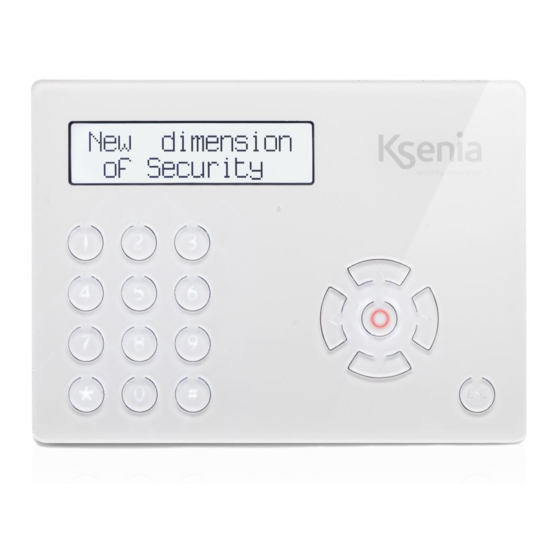

LCD wireless keypads
Installation guide
INTRODUCTION
The ergo wls keypads with Wide Dot Matrix LCD Display have been added to the controls, user interfaces for
Ksenia lares 4.0 control panels.
MAIN CHARACTERISTICS
•
Display of system status;
•
Display of functioning parameters (date/time, temperatures, etc.);
•
System commands;
•
Complete or partial arming: programmed by the installer as keypads on BUS;
•
Reset alarms;
•
Deleting lists of queued telephone calls;
•
Zone status and exclusion of open zones during alarm insertion;
•
Scenarios activation.
QUANTITY DATA
lares 4.0 models
Maximum number of ergo wls
keypads
code R30023.110en
ed.05/2020
wls 96
16
4
2
40
40 wls
140 wls
3
3
644 wls
4
4
www.kseniasecurity.com
Advertisement
Table of Contents
Related Manuals for Ksenia ergo wls
Summary of Contents for Ksenia ergo wls
- Page 1 LCD wireless keypads Installation guide INTRODUCTION The ergo wls keypads with Wide Dot Matrix LCD Display have been added to the controls, user interfaces for Ksenia lares 4.0 control panels. MAIN CHARACTERISTICS • Display of system status; •...
- Page 2 TECHNICAL DATA Wide Dot matrix LCD display viewing area 79 x 19 mm Sound signaling to input / output time Power (only wls mode) Battery KSI7203019.000 non rechargeable Lithium battery pack 3V/1900 mA/h Consumption 10mA standby - 100mA max Operating temperature range +5°C / +40°...
- Page 3 INSTALLATION ergo wls can be installed on any plain surface. Furthermore, in the back there are 3 easy-open holes, suitable for DIN503 and for 60mm-screw-distance boxes. STEP 1. OPENING To open the keypad, please proceed as follows: 1. Push snap fingers (A) using a screw driver 2.
- Page 4 1. Connect the cables to the terminals on the rear of the keypad. 2. Close the keypad properly (4). 3. At every new installation when ergo wls is switched on (but not wire to BUS [A and B] clamps disconnected), the display will show the following information: •...
- Page 5 DISPLAY The display shows all the information and the data ergo wls can manage. The display can show up to 2 rows of 16 characters each. BATTERY The keypad continuously checks the level of battery power and visualizes it on the display using the below icons: the indicators are displayed when the battery level is about to die.
- Page 6 Warning: Use only original batteries Ksenia KSI7203019.000 to avoid damage to the device and continue to ensure the operation of the same, it is recommended to replace the battery within one month of reporting faulty battery. Warning! A battery can explode if treated incorrectly: not recharge, disassemble or dispose on fire.
- Page 7 Test procedures depends on the system configuration. Ask to the installer for the procedures to be followed. Ksenia Security srl shall not be responsible for damage arising from improper installation or maintenance by unauthorized personnel. The content of this guide can change without prior notice from KSENIA SECURITY.
