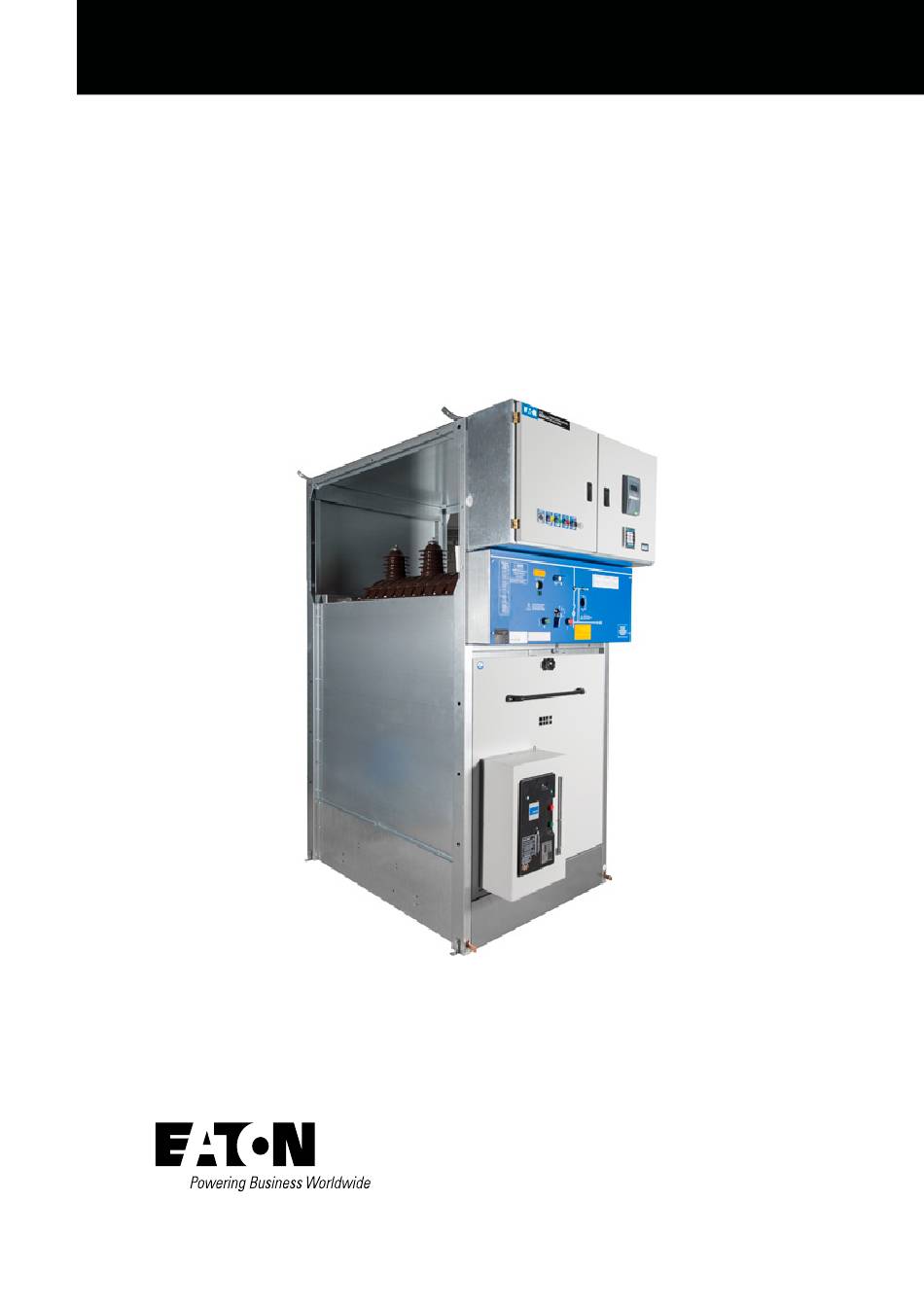

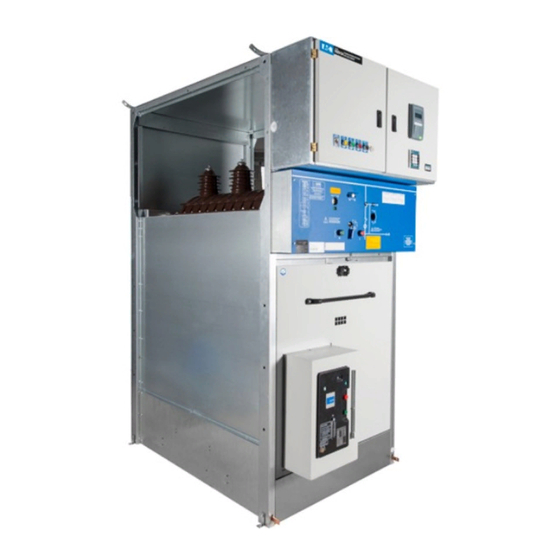

- Page 1 Ulusoy HMH36 Metal Enclosed Modular Switchgear User Manual...
-
Page 2: Table Of Contents
Table of Contents TRANSPORTATION INSTRUCTIONS....................1 STORAGE INSTRUCTIONS........................2 PREPARING THE SWITCHGEARS FOR INSTALLATION..............2 INSTALLATION INSTRUCTIONS......................3 INSTALLATION OF SWITCHGEARS INSIDE A BUILDING..............4 GROUND GRADIENT TOLERANCE......................5 INSTALLATION OF MAIN BUSBAR......................6 INSTALLATION OF EARTHING BUSBAR....................7 INSTALLATION OF MV CABLES......................8 INSTALLATION OF LV CABLES.......................9... -
Page 3: Transportation Instructions
Transportation Instructions Transportation with Forklift Carry with palette! Transportation with Sling Max. 90° Remove the bolts which mounts the switchgear to the palette. Transportation on Pipes Roll on the pipes! Ulusoy HMH36 Metal Enclosed Modular Switchgear User Manual June 2020 www.eaton.com... -
Page 4: Storage Instructions
Preparing the Switchgears for Installation Remove the bolts which mounts the switchgear Disassemble the lifting plates. to the palette. Disassemble the top sheet metal. Pull out the front cover of the switchgear. Ulusoy HMH36 Metal Enclosed Modular Switchgear User Manual June 2020 www.eaton.com... -
Page 5: Installation Instructions
HMH 36-15 1000 HMH 36-06 1000 HMH 36-16 HMH 36-07 HMH 36-17 HMH 36-08 1000 HMH 36-18 HMH 36-09 HMH 36-19 1000 HMH 36-10 HMH 36-20 1000 **Sizes in mm. Ulusoy HMH36 Metal Enclosed Modular Switchgear User Manual June 2020 www.eaton.com... -
Page 6: Installation Of Switchgears Inside A Building
GA US S HMH 36 GA US S HMH 36 Cable kablo kablo canal kablo ˆnden gˆ r¸n ¸ ˆnden gˆ r¸n ¸ ˆnden gˆ r¸n ¸ Front view Side view Top view Ulusoy HMH36 Metal Enclosed Modular Switchgear User Manual June 2020 www.eaton.com... -
Page 7: Ground Gradient Tolerance
The ground gradients should not exceed the values given on the 750 mm chart for the switchgears to work 1000 mm properly. 1500 mm **Sizes in mm. Switchgear width MV cables Ulusoy HMH36 Metal Enclosed Modular Switchgear User Manual June 2020 www.eaton.com... -
Page 8: Installation Of Main Busbar
Busbar 1 Busbar 2 Busbar 1 Stress Control Cone Busbar 2 Busbar 1 Busbar 2 Stress Control Cone Busbar 1 A-A view A-A view 630A Busbar installation 1250A Busbar installation Ulusoy HMH36 Metal Enclosed Modular Switchgear User Manual June 2020 www.eaton.com... -
Page 9: Installation Of Earthing Busbar
Assemble the top sheet metal. Installation of Earthing Busbar 1. Main Busbars 2. Liaison Busbars 3. M8x20 Bolt view view view view Ulusoy HMH36 Metal Enclosed Modular Switchgear User Manual June 2020 www.eaton.com... -
Page 10: Installation Of Mv Cables
Connect the cable earthing to the busbar seperately, mounted to the cables and fixed. earthing. Repeat these operations again for L2 and L3 phases. Ulusoy HMH36 Metal Enclosed Modular Switchgear User Manual June 2020 www.eaton.com... -
Page 11: Installation Of Lv Cables
For DC feeding: Connect the (+) cable to number 3 terminal and (-) cable to number 4 terminal in X1terminal series. In transformer protection switchgears connect the Buccholz cables and transformer protection cables to the related terminals. Ulusoy HMH36 Metal Enclosed Modular Switchgear User Manual June 2020 www.eaton.com... - Page 12 Eaton’s mission is to improve the quality of life and the environment through the use of power management technologies and services. We provide sustainable solutions that help our customers effectively manage electrical, hydraulic, and mechanical power - more safely, more efficiently, and more reliably.
