Eaton 2596 Installation, Operation & Maintenance Manual

Failure to comply with these instructions could result in bodily injury or property damage.
IOM 2596 Cast 10"-16" | Fabricated 10"-36" 10/2011
Eaton Filtration, LLC, 44 Apple Street, Tinton Falls, NJ 07724 | www.eaton.com/filtration | Phone: 732-212-4700
Installation, Operation & Maintenance Manual
Read all instructions prior to installing and operating the equipment.

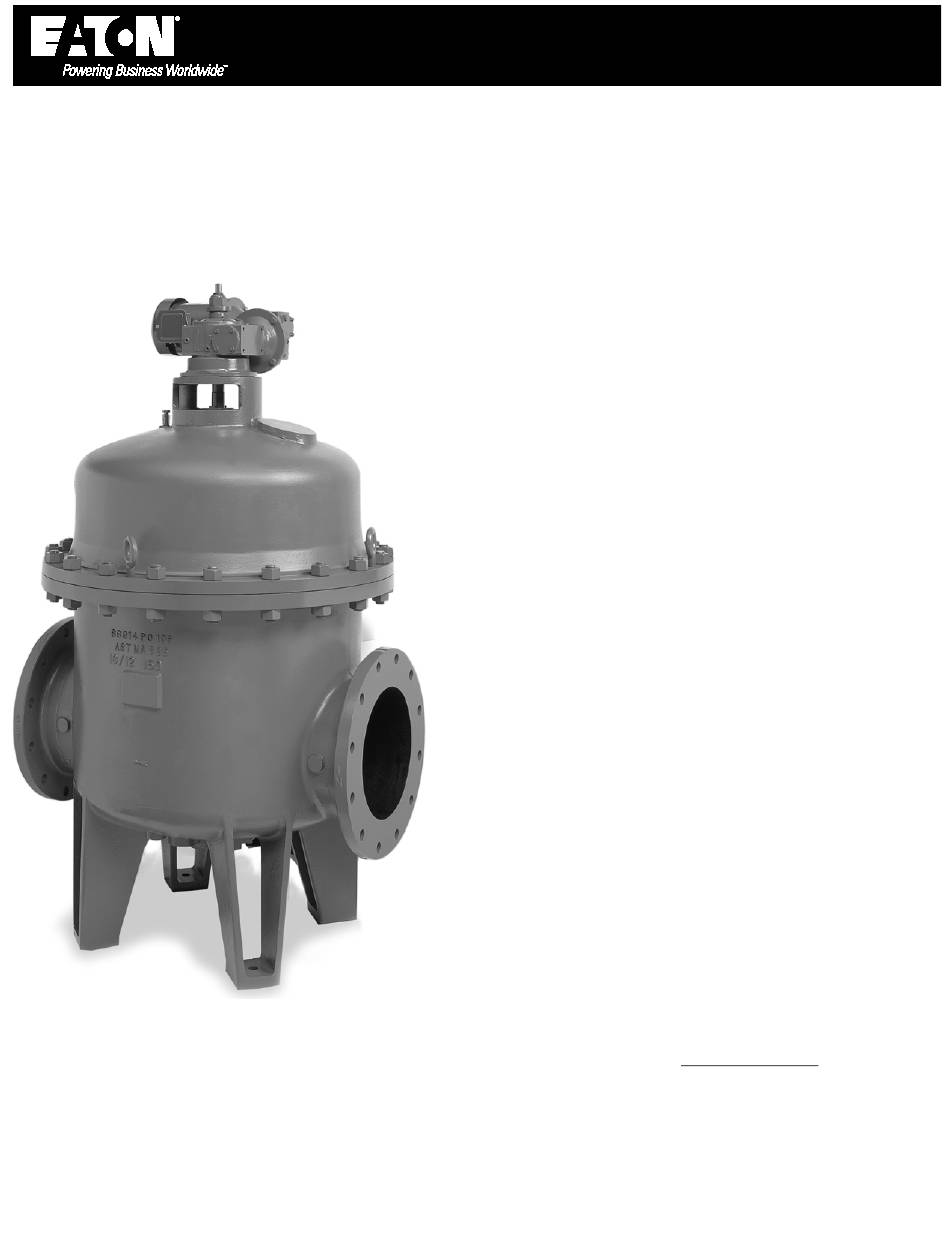

Model 2596 Self-Cleaning Strainer
Cast 10" to 16" and Fabricated 10" to 36"

TABLE OF CONTENTS

Introduction ...................................................................... 1
Receiving, Handling, and Inspection ............................ 2
Storage ......................................................................... 2
Installation ........................................................................ 2
Start Up ........................................................................ 3
Operation ..................................................................... 4
Shut Down Periods ....................................................... 4
Standard Maintenance ................................................. 4
Standard Maintenance ..................................................... 4
Reducer Maintenance .................................................. 5
Manual Operation of Backwash Arm ........................... 6
Disassembly and Parts Replacement ............................... 6
Removal of Cover and Operating Mech. Assembly ...... 6
Reassembly of Cover and Operating Mech. Assembly . 6
Motor Replacement ..................................................... 7
Shaft Packing Replacement .......................................... 7
Replacement or Maintenance of Filter Element and
Backwashing Arm Bushing ........................................... 7
Reducer Replacement .................................................. 8
Removal of Orifice Plate ............................................... 8
Pilot Bushing and Housing Replacement...................... 8
Trouble Shooting ............................................................. 9
Recommended Spare Parts .............................................. 9
idL™ Shaft Seal Replacement ......................................... 14

INTRODUCTION

The Eaton Model 2596 Self-Cleaning Strainers are devices
installed in a pipeline to remove dirt and other unwanted
debris from fluids. Straining is accomplished by directing the
fluid through sized openings in Durawedge®, perforated, or
mesh straining elements.
For additional information regarding Model 2596 Self-Cleaning
Strainer visit our website at eaton.com/filtration
REV A. Page 1 of 15
