Manual MN019001EN
Bussmann series
PV Combiner box
Effective November 2015
Supersedes September 2014
Contents
Important . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Skilled worker definitions . . . . . . . . . . . . . . . . . 3
Electrically instructed person . . . . . . . . . . . . . 3
Electrically skilled person . . . . . . . . . . . . . . . . 3
Skills of qualified persons . . . . . . . . . . . . . . . . . 3
Competent person . . . . . . . . . . . . . . . . . . . . . 3
Safety precautions . . . . . . . . . . . . . . . . . . . . . . . 3
combiner box . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
The PV combiner box . . . . . . . . . . . . . . . . . . . . 6
Product description . . . . . . . . . . . . . . . . . . . . 6
Supplied components . . . . . . . . . . . . . . . . . . 7
Maintaining the IP rating . . . . . . . . . . . . . . . . 8
Handle operation . . . . . . . . . . . . . . . . . . . . . . 8
Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . 9
Electric shock . . . . . . . . . . . . . . . . . . . . . . . . . 9
Burn hazards . . . . . . . . . . . . . . . . . . . . . . . . . 9
combiner box . . . . . . . . . . . . . . . . . . . . . . . . . 9
Product warning labels . . . . . . . . . . . . . . . . . . 9
Service and maintenance . . . . . . . . . . . . . . . . 9
Interlocking door and switch . . . . . . . . . . . . 10
Installation instructions . . . . . . . . . . . . . . . . . . 11
Unpacking and inspection . . . . . . . . . . . . . . 11
Electrical connections . . . . . . . . . . . . . . . . . 11
Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Monitoring solutions . . . . . . . . . . . . . . . . . . . . 14
8 string monitoring units . . . . . . . . . . . . . . . 15
16 string monitoring units . . . . . . . . . . . . . . 16
24 string monitoring units . . . . . . . . . . . . . . 17
Monitoring unit configurations . . . . . . . . . . 19
Replaceable parts . . . . . . . . . . . . . . . . . . . . . . 20
Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
SPD modules . . . . . . . . . . . . . . . . . . . . . . . 20
Service items . . . . . . . . . . . . . . . . . . . . . . . . 20

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Bussmann Series and is the answer not in the manual?

Questions and answers

Related Manuals for Eaton Bussmann Series

Summary of Contents for Eaton Bussmann Series

  • Page 1: Table Of Contents

    Safety precautions ..... . . 3 Anatomy of an Eaton’s Bussmann series combiner box ......4 The PV combiner box .

  • Page 2: Important

    The Eaton terms and conditions of sale constitute the entire obligation of Eaton. The warranty in the terms and condi- tions of sale is the sole warranty of Eaton. Any statements in this document do not create new warranties or modify any existing warranty.

  • Page 3: Introduction

    Effective November 2015 Introduction Skills of qualifi ed persons Copyright © 2015 Eaton. All rights reserved. No part of this document A skilled person must possess the following: may be reproduced, stored on a retrieval system, in any form or by Knowledge of the subject equipment and the hazards involved •...

  • Page 4: Anatomy Of An Eaton's Bussmann Series Combiner Box

    Technical Data MN019001EN Bussmann series PV Combiner box Effective November 2015 Anatomy of an Eaton’s Bussmann series combiner box EATON www.eaton.com...
  • Page 5 Bussmann series Technical Data MN019001EN PV Combiner box Effective November 2015 EATON www.eaton.com...

  • Page 6: The Pv Combiner Box

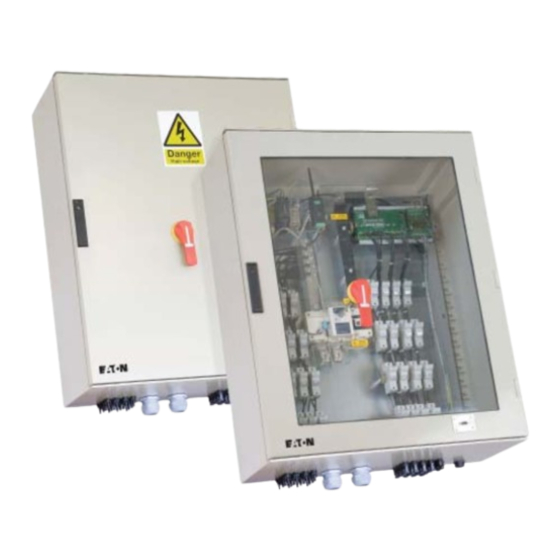

    The PV combiner box Cenn-xxAyypsh-vmm PV string input / output connection type (h) Eaton has introduced a new line of monitored combiner boxes designed for use with all module and inverter combinations. Bottom entry glands / standard output glands Bottom entry MC4s / standard output glands...
