Product Specifications
Issue 1.0 Date 2019-11-05

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the N75 Mini PCle and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Neoway N75 Mini PCle

Summary of Contents for Neoway N75 Mini PCle

  • Page 1 Product Specifications Issue 1.0 Date 2019-11-05...
  • Page 2 THIS GUIDE PROVIDES INSTRUCTIONS FOR CUSTOMERS TO DESIGN THEIR APPLICATIONS. PLEASE FOLLOW THE RULES AND PARAMETERS IN THIS GUIDE TO DESIGN AND COMMISSION. NEOWAY WILL NOT TAKE ANY RESPONSIBILITY OF BODILY HURT OR ASSET LOSS CAUSED BY IMPROPER OPERATIONS. THE INFORMATION IN THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE DUE TO PRODUCT VERSION UPDATE OR OTHER REASONS.

  • Page 3: Table Of Contents

    5.2 TX Power and RX Sensitivity ..................... 14 5.3 GNSS Features .......................... 16 6 Mechanical Features ................18 6.1 Dimensions..........................18 6.2 Label ............................19 6.3 Pack ............................19 6.4 Storage ............................20 7 Mounting ....................21 Abbreviation ................... 22 Copyright © Neoway Technology Co., Ltd...
  • Page 4 Figure 3-1 N75 Mini PCIe ......................... 10 Figure 6-1 Dimensions of N75 Mini PCIe ..................18 Figure 6-2 N75 label ......................... 19 Figure 6-3 Packaging process ......................19 Figure 7-1 Mini PCIe connector ....................... 21 Copyright © Neoway Technology Co., Ltd...
  • Page 5 Table 5-2 TX RF power of N75 Mini PCIe ..................14 Table 5-3 RX sensitivity of N75-NA/NF/A Mini PCIe ................ 15 Table 5-4 RX sensitivity of N75-EA Mini PCIe .................. 15 Table 5-5 GNSS indicators ....................... 16 Copyright © Neoway Technology Co., Ltd...
  • Page 6 Means the reader be careful. In this situation, you might perform an action that could result in module or product damages. Means note or tips for readers to use the module Related Documents Neoway_N75 Mini PCIe_Datasheet Neoway_N75 Mini PCIe_HW_User_Guide Copyright © Neoway Technology Co., Ltd...
  • Page 7 N75 Mini PCIe Product Specifications About This Document Neoway_N75 Mini PCIe_AT_Command_Mannual Neoway_N75 Mini PCIe_EVK_User_Guide Copyright © Neoway Technology Co., Ltd...

  • Page 8: About N75 Mini Pcie

    GSM/GPRS/EDGE: 900/1800 MHz FDD-LTE: B1, B3, B8, B18, B19, B26 TDD-LTE: B41 Japan Cat4 Optional UMTS: B1, B6, B8, B19UMTS: B1, B8 GSM/GPRS/EDGE: 900/1800 MHz GNSS is optional for all above variants except NF Copyright © Neoway Technology Co., Ltd...

  • Page 9: Block Diagram

    Figure 1-1 Block Diagram ANT_MAIN ANT_DIV ANT_GNSS RF interfaces For GNSS Moudle VBAT Boost DC-DC Mini PCI-E interfaces Wake W_Di V_MAIN Reset USIM USB PCM UART sable LDO supplies 3.3V for external active GNSS antenna. Copyright © Neoway Technology Co., Ltd...

  • Page 10: Basic Features

    To use the sleep mode, ensure that the software supports it and the USB interface is disconnected on hardware. Current in operating mode indicates the current during data communication. For currents of other network modes and bands, see N75 Mini PCIe Current Test Report. Copyright © Neoway Technology Co., Ltd...
  • Page 11 One USIM interface, 1.8V/3V One USB2.0 high-speed interface One PCM interface Data PPP, RNDIS, ECM, RMNET Protocol TCP, UDP, MQTT, FTP/FTPS, HTTP/HTTP(S), SSL, TLS Certification FCC, PTCRB, AT&T*, CE-R*, GCF*, RoHS*, NCC*, RCM* approval Copyright © Neoway Technology Co., Ltd...

  • Page 12: Compliant Standards

    900/1800MHz TDMA digital cellular telecommunications system - Part 1: Mobile station and ancillary equipment CNCA-O7C-031:2007Rules for Compulsory Certification of Telecommunication Equipment ⚫ Telecommunication Terminal Equipment 3GPP TS GSM Specification Set ⚫ 3GPP TS WCDMA Specification Set ⚫ 3GPP TS LTE Cat4 4G Specification Set ⚫ Copyright © Neoway Technology Co., Ltd...

  • Page 13: Application Interfaces

    3.1 Pin definition N75 Mini PCIe provides 52 pins and their definitions meet the standard of Mini PCI Express. Figure 3- 1 shows the pin definitions. Figure 3-1 N75 Mini PCIe pin definition Signal Signal Copyright © Neoway Technology Co., Ltd...

  • Page 14: Pin Description

    Level Feature Remarks RESERVED Main power supply Vmin=3.0V Supply at most 2.5A V_MAIN input Vmax=3.6V current RESERVED Ground RESERVED RESERVED module USIM card power V_USIM compatible with 1.8V and supply output 3V USIM cards. Copyright © Neoway Technology Co., Ltd...
  • Page 15 Leave this pin floating if it UART_RTS Request to send is not used. Ground Ground Leave this pin floating if it UART_CTS Clear to send is not used. Ground UART_DCD UART carrier P3 Leave this pin floating if it Copyright © Neoway Technology Co., Ltd...
  • Page 16 Leave this pin floating if it PCM_DOUT PCM data output is not used. Ground frame Leave this pin floating if it PCM_SYNC synchronization signal is not used. Main power supply Vmin=3.0V V_MAIN Same as pin 2 input Vmax=3.6V Copyright © Neoway Technology Co., Ltd...

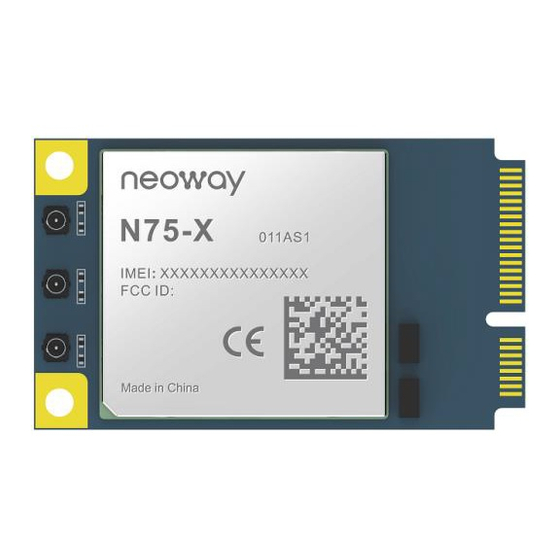

  • Page 17: Appearance

    A: supporting diversity receiving and GNSS function B: supporting diversity receiving but not supporting GNSS function C: Bottom view of N75 Mini PCIe The actual products might be a little bit different from the above figures. ⚫ Copyright © Neoway Technology Co., Ltd...

  • Page 18: Electric Feature And Reliability

    If the module works in an environment of -30°C to -40°C or 75°C to 85°C, RF performance might be beyond the requirements of 3GPP. This does not affect the running of the module. The RF performance will meet the 3GPP standard after the temperature reaches the operating range. Copyright © Neoway Technology Co., Ltd...

  • Page 19: Esd Protection

    Table 4-3 ESD feature of N51 Testing Point Contact Discharge Air Discharge V_MAIN ± 8kV ± 15kV ± 8kV ± 15kV ± 8kV ± 15kV Cover ± 8kV ± 15kV Others ± 2kV ± 4kV Copyright © Neoway Technology Co., Ltd...

  • Page 20: Rf Features

    824~849MHz 869~894MHz FDD-LTE B7 2500~2570MHz 2620~2690MHz FDD-LTE B8 880~915MHz 925~960MHz FDD-LTE B12 699~716MHz 728~746MHz FDD-LTE B13 777~787MHz 746~757MHz FDD-LTE B14 788~798MHz 758~768MHz FDD-LTE B18 815~830MHz 860~875MHz FDD-LTE B19 830~845MHz 875~890MHz FDD-LTE B20 832~862MHz 791~821MHz Copyright © Neoway Technology Co., Ltd...

  • Page 21: Tx Power And Rx Sensitivity

    23dBm+2/-2dBm <-44dBm FDD-LTE B4 23dBm+2/-2dBm <-44dBm FDD-LTE B5 23dBm+2/-2dBm <-44dBm FDD-LTE B7 23dBm+2/-2dBm <-44dBm FDD-LTE B8 23dBm+2/-2dBm <-44dBm FDD-LTE B12 23dBm+2/-2dBm <-44dBm FDD-LTE B13 23dBm+2/-2dBm <-44dBm FDD-LTE B14 23dBm+2/-2dBm <-44dBm FDD-LTE B18 23dBm+2/-2dBm <-44dBm Copyright © Neoway Technology Co., Ltd...

  • Page 22: Table 5-3 Rx Sensitivity Of N75-Na/Nf/A Mini Pcie

    <-100 dBm FDD-LTE B71 <-95.5 dBm <-97 dBm <-100.5 dBm Table 5-4 RX sensitivity of N75-EA Mini PCIe Band Main RX Sensitivity DIV RX Sensitivity Main+DIV RX Sensitivity GSM900 <-108dBm <-108dBm DCS1800 <-108dBm <-108dBm Copyright © Neoway Technology Co., Ltd...

  • Page 23: Gnss Features

    -160dBm (GPS)/-159.5 dBm (GLONASS)/TBD(BDS) Acquisition sensitivity -144dBm (GPS)/-143.5 dBm (GLONASS) Positioning precision (in air) < 3m (CEP50) Hot start (in air) <2.5s Cold start (in air) <35s Update frequency 1Hz by default CNRin/CNRout Max. positioning altitude 18000m Copyright © Neoway Technology Co., Ltd...
  • Page 24 Tracking sensitivity, acquisition sensitivity, and re-acquisition sensitivity were obtained in a signaling test on SPIRENT6300 and they are the maximum values of multiple tests on samples. No external LNA or active antenna was used in the test. Copyright © Neoway Technology Co., Ltd...

  • Page 25: Mechanical Features

    N75 Mini PCIe Hardware User Guide Chapter 6 Mechanical Features 6 Mechanical Features 6.1 Dimensions Figure 6-1 Dimensions of N75 Mini PCIe 30.20 30.20 1.50 1.50 R 0.75 The unit is mm. Copyright © Neoway Technology Co., Ltd...

  • Page 26: Label

    N75 Mini PCIe modules are packaged in sealed vacuum bags with dryer, humidity card, and tray on delivery to guarantee a long shelf life. Follow the same package method again in case of opened for any reason. Figure 6-3 Packaging process Copyright © Neoway Technology Co., Ltd...

  • Page 27: Storage

    N75 Mini PCIe Hardware User Guide Chapter 6 Mechanical Features 6.4 Storage Temperature: 20°C to +26°C ⚫ Humility: 40% to 60% ⚫ Period: 120 days ⚫ Copyright © Neoway Technology Co., Ltd...

  • Page 28: Mounting

    N75 Mini PCIe adopts the standard PCI Express Mini Card 1.2 interfaces and can be mounted to a Mini PCIe connector. It is recommended to use 679100002 from Molex. The following figure shows its dimensions. Figure 7-1 Mini PCIe connector Copyright © Neoway Technology Co., Ltd...

  • Page 29: Abbreviation

    Land Grid Array Long-Term Evolution Printed Circuit Board Radio Frequency UART Universal Asynchronous Receiver-Transmitter USIM Universal Subscriber Identity Module UMTS Universal Mobile Telecommunications System Universal Serial Bus WCDMA Wide-band Code Division Multiple Access Pulse Code Modulation Copyright © Neoway Technology Co., Ltd...
