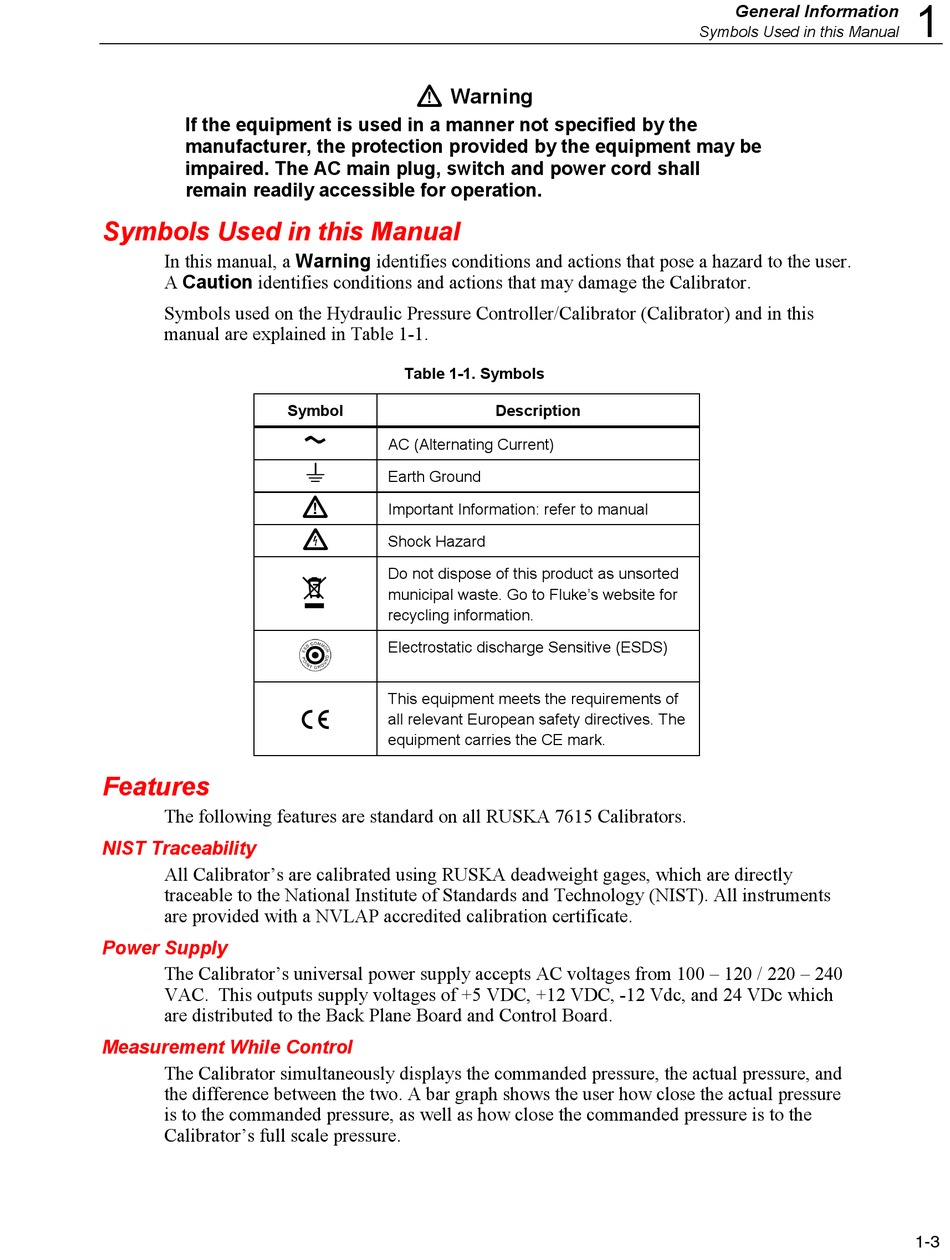

Symbols Used In This Manual; Features; Nist Traceability; Power Supply - Fluke Calibration RUSKA 7615 User Manual

If the equipment is used in a manner not specified by the
manufacturer, the protection provided by the equipment may be
impaired. The AC main plug, switch and power cord shall
remain readily accessible for operation.

Symbols Used in this Manual

In this manual, a Warning identifies conditions and actions that pose a hazard to the user.
A Caution identifies conditions and actions that may damage the Calibrator.
Symbols used on the Hydraulic Pressure Controller/Calibrator (Calibrator) and in this
manual are explained in Table 1-1.

Features

The following features are standard on all RUSKA 7615 Calibrators.

NIST Traceability

All Calibrator's are calibrated using RUSKA deadweight gages, which are directly
traceable to the National Institute of Standards and Technology (NIST). All instruments
are provided with a NVLAP accredited calibration certificate.

Power Supply

The Calibrator's universal power supply accepts AC voltages from 100 – 120 / 220 – 240
VAC. This outputs supply voltages of +5 VDC, +12 VDC, -12 Vdc, and 24 VDc which
are distributed to the Back Plane Board and Control Board.

Measurement While Control

The Calibrator simultaneously displays the commanded pressure, the actual pressure, and
the difference between the two. A bar graph shows the user how close the actual pressure
is to the commanded pressure, as well as how close the commanded pressure is to the
Calibrator's full scale pressure.
W
Warning
Table 1-1. Symbols
Symbol
B
AC (Alternating Current)
J
Earth Ground
W
Important Information: refer to manual
X
Shock Hazard
Do not dispose of this product as unsorted
~
municipal waste. Go to Fluke's website for
recycling information.
Electrostatic discharge Sensitive (ESDS)
This equipment meets the requirements of
P
all relevant European safety directives. The
equipment carries the CE mark.
