Fluke Calibration TL2X4W-PTII Instruction Sheet

2x4-wire ohms test leads

TL2X4W-PTII

2x4-Wire Ohms Test Leads

Instruction Sheet

Introduction

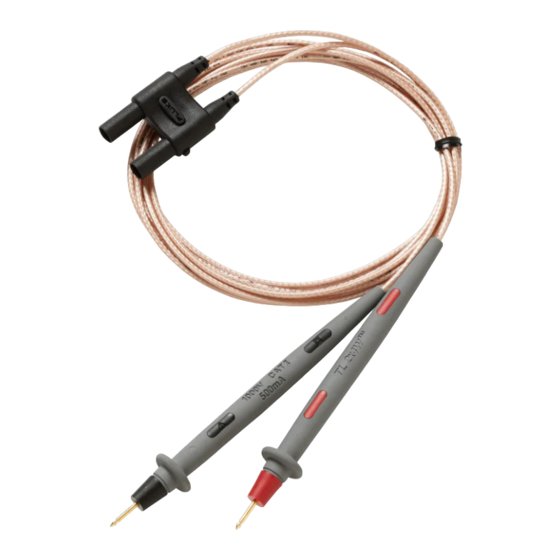

The Fluke TL2X4W-PTII 2x4-Wire 1000 V Test Leads are

designed for use with the 8845A and 8846A multimeters. The

split contacts of the test lead's banana plugs are aligned to mate

with the split contacts of the 8845A and 8846A HI and LO input

connectors.

The split contact design used by both the meters and the test

leads bring both the input and sense terminals of the meters to

any 4-wire resistance measurement with only two, instead of four

test leads.

PN 2826226

January 2007, Rev.1, 9/19

All product names are trademarks of their respective companies.

Table of Contents

Do you have a question about the TL2X4W-PTII and is the answer not in the manual?

Page 1 2x4-Wire Ohms Test Leads Instruction Sheet Introduction The Fluke TL2X4W-PTII 2x4-Wire 1000 V Test Leads are designed for use with the 8845A and 8846A multimeters. The split contacts of the test lead’s banana plugs are aligned to mate with the split contacts of the 8845A and 8846A HI and LO input connectors.
Page 2 Safety Information XW Warning To avoid possible electric shock or personal injury: Do not use test leads directly connected to a • mains supply. Do not use the test leads for measurements • within Measurement Categories II, III, and IV. Use the test leads only as specified by Fluke, or •...
Page 3 International Symbols Symbol Meaning This product complies with the WEEE Directive marking requirements. The affixed label indicates that you must not discard this electrical/electronic product in domestic household waste. Product Category: With reference to the equipment types in the WEEE Directive Annex I, this product is classed as category 9 "Monitoring and Control Instrumentation"...
Page 4 How to Contact Fluke To contact Fluke, call one of the following telephone numbers: Technical Support USA: 1-800-44-FLUKE (1-800-443-5853) Calibration/Repair USA: 1-888-99-FLUKE (1-888-993-5853) Canada: 1-800-36-FLUKE (1-800-363-5853) Europe: +31 402-675-200 Japan: +81-3-6714-3114 Singapore: +65-6799-5566 China: +86-400-921-0835 Brazil: +55-11-3530-8901 Anywhere in the world: +1-425-446-5500 Or, visit Fluke's website at www.fluke.com.
