Fluke Calibration 525B Quick Reference Manual
Temperature/pressure calibrator
Hide thumbs
Also See for 525B:
- User manual (111 pages) ,
- Getting started manual (24 pages) ,
- User manual (111 pages)
Table of Contents
Advertisement
Quick Links
Fluke Calibration 525B
Temperature/Pressure Calibrator
Quick Reference Guide
525B
TEMPERATURE / PRESSURE CALIBRATOR
mA
VOLTS
RTD
100mA MAX
HI
HI
OUTPUT
100V MAX
LO
LO
20V PK
MAX
4W RTD
HI
INPUT
SENSE
LO
20V PK
MAX
Selecting units
Press:
Or
Or
Volts
TC
Pressure
mA
RTD
Selecting input/output
(Volts, mA are source only, pressure is measure only)
Or
Or
Changing pressure units/probe type
Selected - RTD
PT 500-385
PT 1K-385
PT 100-392
PT 100-JIS
Ni 120
Cu 10
YSI-400
400Ω
4 KΩ
SPRT 25Ω
User-Def
Sourcing
(Output)
STBY
OPR
TC
INPUT/OUTPUT
20V PK
MAX
(Measure/Source)
Selected - TC
L
N
R
S
T
U
mV/C°
B
C
E
J
K
VOLTS
TC
TYPE
UNITS
mA
RTD
OUTPUT
INPUT
ZERO
7
8
9
SHIFT
SETUP
CJC
C / F
4
5
6
SET
RECALL
AUTOSET
1
2
3
RNG LOCK
LOCAL
EXP
/
0
ï
ENTER
Selected - Pressure
Kg/cm
2
PSI
in H
O 4 °C
2
in H
O 20 °C
2
cm H
O 4 °C
2
cm H
O 20 °C
2
bar
mbar
K Pa
in H
0 °C
g
mm H
0 °C
g
CE
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Fluke Calibration 525B
Summary of Contents for Fluke Calibration 525B

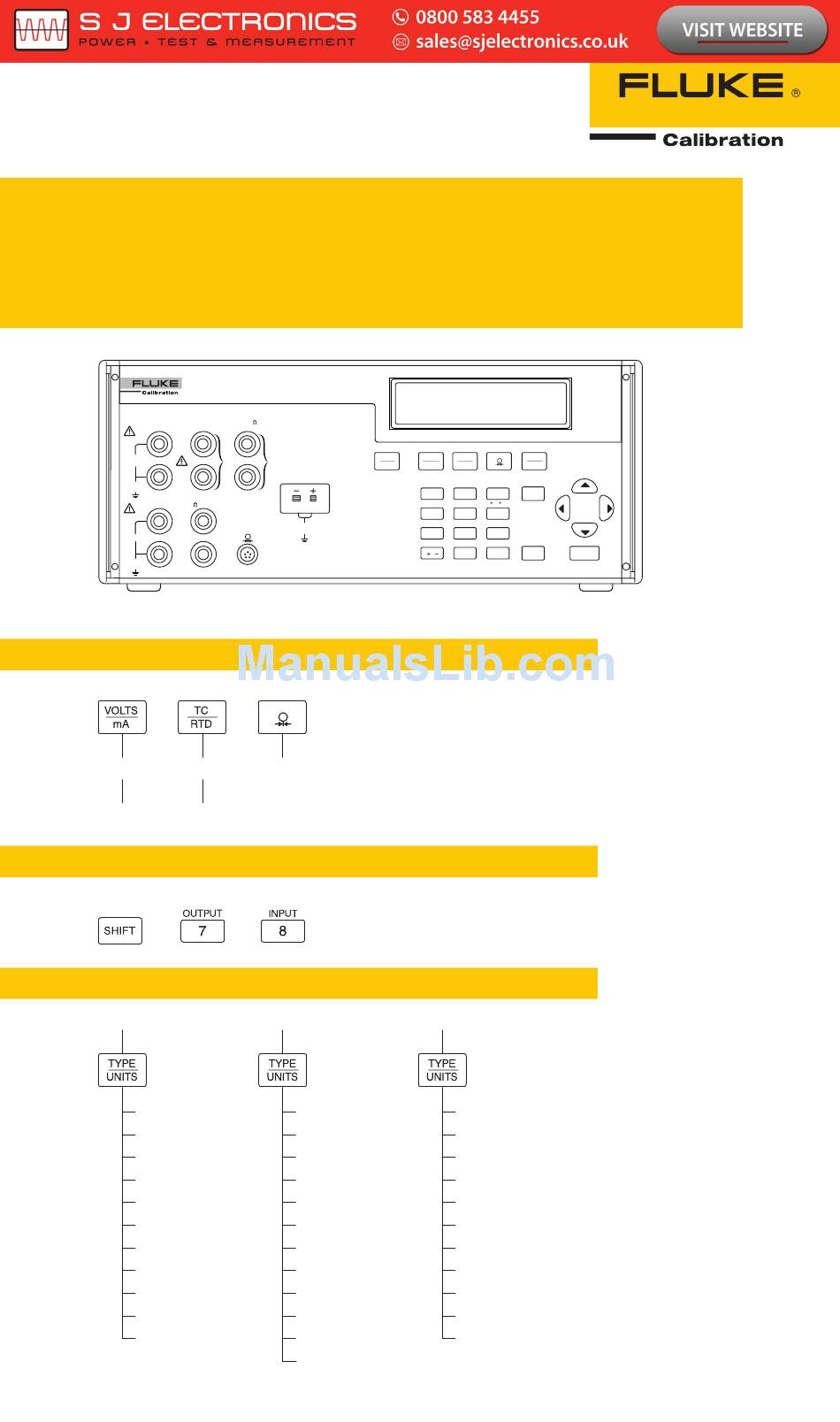

- Page 1 Fluke Calibration 525B Temperature/Pressure Calibrator Quick Reference Guide 525B TEMPERATURE / PRESSURE CALIBRATOR VOLTS 100mA MAX OUTPUT STBY VOLTS TYPE 100V MAX UNITS INPUT/OUTPUT 20V PK OUTPUT INPUT ZERO SHIFT 4W RTD SETUP C / F RECALL AUTOSET 20V PK...
- Page 2 Cu 10 cm H O 20 °C YSI-400 mV/C° 400Ω mbar 4 KΩ K Pa SPRT 25Ω in H 0 °C User-Def mm H 0 °C Sourcing (Output) For Volts, mA and RTD (All others are active when selected) Setting setpoints (Output only;...
- Page 3 Press # of setpoint (1-9). Repeat up to nine times. Recalling setpoints Press # of setpoint to recall (1-9). Repeat for ALL setpoints desired. AutoSet (Automatic timed setpoint) Uses setpoints already programmed. Press # of setpoints to use as auto setpoints (1-9). Press # of seconds to pause and hold setpoints (dwell time) (5-500 sec) Setpoints cycle starting at setpoint #1 through # of setpoints selected.
- Page 4 From other countries +1 (425) 446-5500 or Fax +1 (425) 446-5116 Web access: http://www.flukecal.com ©2002, 2009, 2012 Fluke Calibration. Specifications subject to change without notice. Printed in U.S.A. 12/2012 1638743C_EN Modification of this document is not permitted without written permission...
