Installation
4.1.3
Fork sleeves (optional)

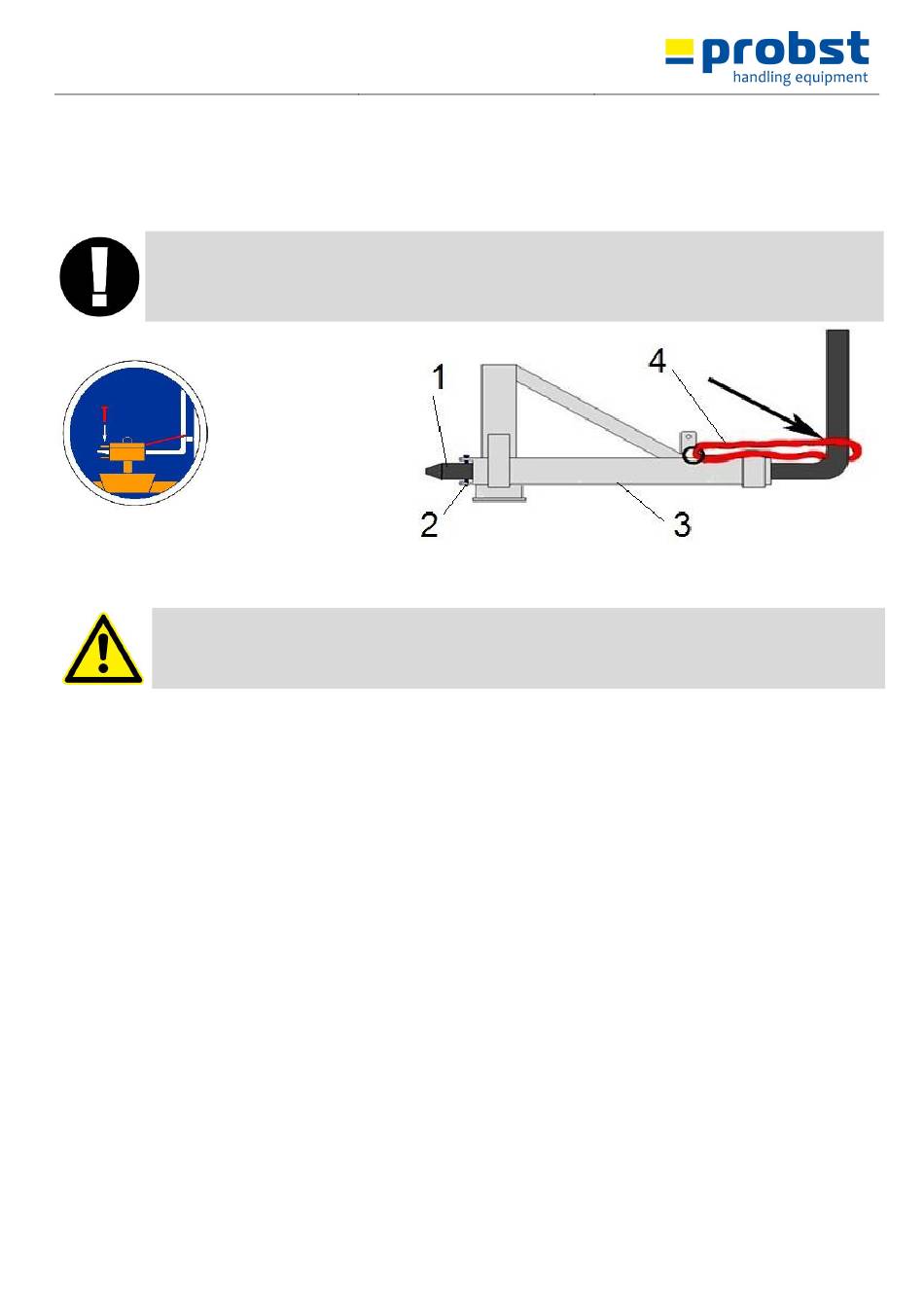

To establish a mechanical connection between the fork lift truck and the fork sleeves you have to put the
forks into the fork sleeves and fix it with the locking bolt or with a chain/rope, connected to the eyelet on the
fork sleeves and the lift frame.
It is definitely necessary to establish this connection. Otherwise the device could slide form the forks.
DANGER OF ACCIDENTS!
1
2 locking bolt
3 Fork sleeve
4 Chain/rope
4.1.4
Rotators (optional)
When using rotators, a free-wheel throttle valve must be installed.
In order to prevent a sudden speedup and stopping the rotational movements, as this may damage the
device within a short time.
53200002
Fork (of fork lift truck)
13 / 20
V4
GB
