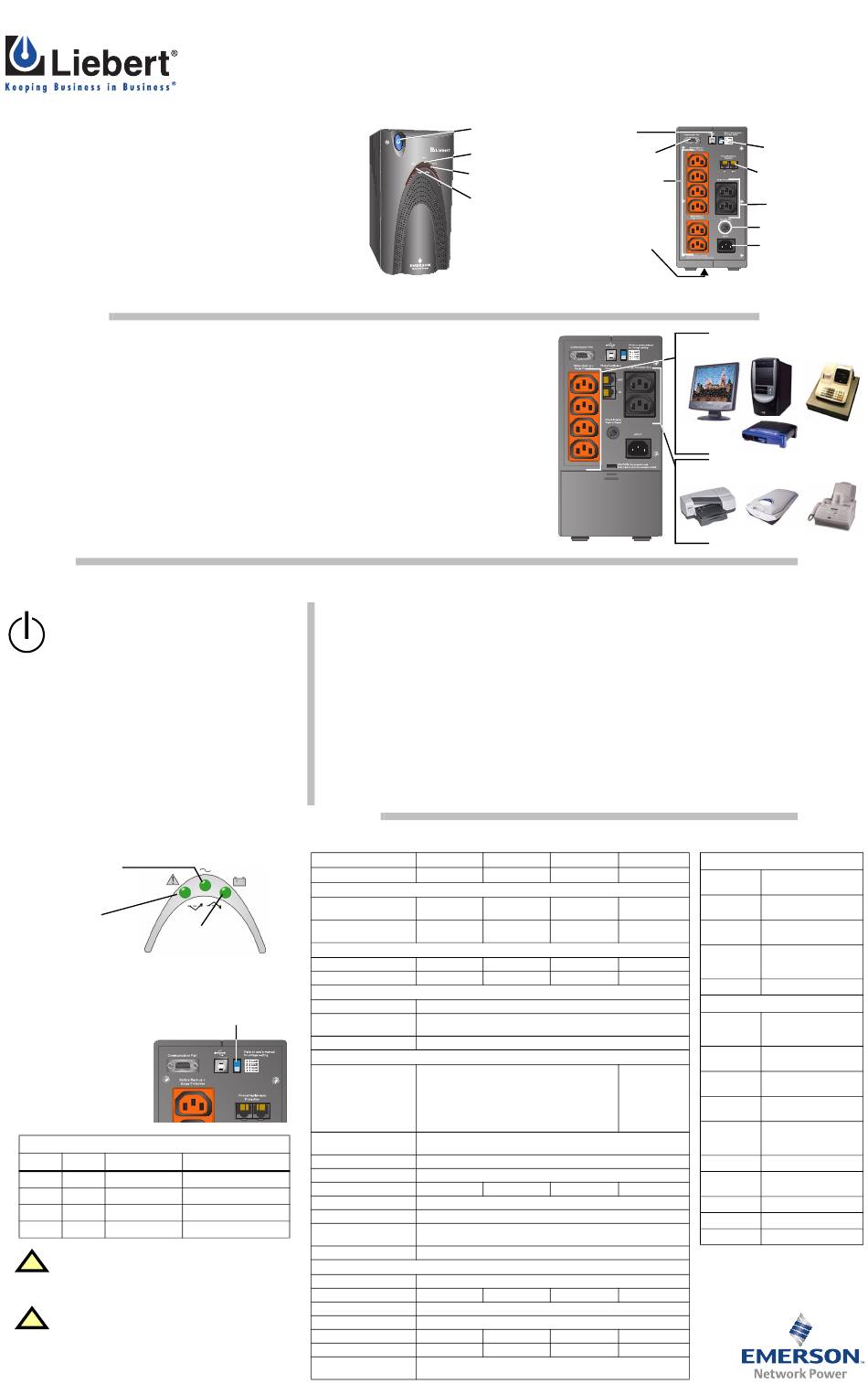

Liebert PowerSure PSA350MT-230 Quick Start Manual

W ' I T B
HAT S N HE OX
• Quick-Start guide
• PowerSure family user manual on CD (also at www.liebert.com)
• Two (2) 10A output power cords, 2.0m (6.6 ft.)
™
• MultiLink software CD; MultiLink serial cable (M3LS9P9S), 3m (10 ft.)
• RJ-11 cord, 2.1 m (7 ft.); USB cable, 1.8m (6 ft.)
For more details, refer to the PowerSure user manual on CD.
Pour de plus amples informations, voir le manuel d'utilisateur de la
gamme des produits PowerSure sur CD.
Para una información más detallada, consulte el manual del usuario de
la familia PowerSure en el CD.
Per informazioni ulteriori e più particolareggiate, consultare il manuale
dell'utente delle attrezzature PowerSure contenuto sul CD.
Ausfuhrlichere Informationen finden Sie im Benutzerhandbuch der
PowerSure-Familie auf CD.
I
NSTALLATION
Read all safety, installation and operating instructions in the PowerSure family user manual on the included CD or
at www.liebert.com before operating the UPS. Adhere to all warnings on the unit and in the manual.
1. Install the UPS indoors in a controlled environment, where it cannot be accidentally turned off. Place it in an area
of unrestricted airflow around the unit, away from water, flammable liquids, gases, corrosives and conductive
contaminants. Maintain a minimum clearance of 100mm (4 inches) on each side of the UPS. Maintain an ambi-
ent temperature range of 0°C to 40°C (32°F to 104°F).
2. Connect equipment to the receptacles on the back of the PSA: computers and monitors should be connected to
the orange receptacles for battery backup and surge protection; other office machines that do not exceed the
capacity of the UPS may be plugged into either of the two black receptacles, which provide surge protection only.
3. Obtain a suitable input power cable with a minimum cross-sectional area of 1mm
PSA to the mains supply socket.
4. Connect Phone/Fax/DSL/Internet/Modem devices to data line connectors.
5. Press and release the ON/OFF/Alarm Silence button to turn on the UPS. The UPS will beep and the Mains Indi-
cator will illuminate (green).
6. Turn on connected equipment.
C I
ONTROLS AND NDICATORS
This button controls output power to the connected
load and has three functions:
• Turns the PowerSure PSA ON
• Turns the PowerSure PSA OFF
• Silences PowerSure PSA alarms
TURN THE UPS ON: Press and release the main ON/OFF
button to start the UPS. An audible alarm will sound briefly.
TURN THE UPS OFF: When the PSA is ON, hold the main
ON/OFF button down for more than 2 seconds to shut it down.
An audible alarm will sound briefly.
SILENCE AN ALARM: When a UPS alarm is active, press and
release the main ON/OFF button to silence the audible alarm
(Exceptions: low battery, overload and overtemperature). DO
NOT hold the button down for more than 2 seconds or the PSA
will shut down.

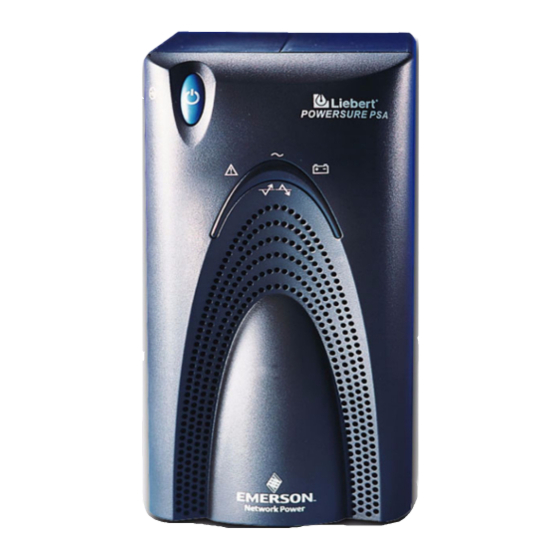

CHECK THE PSA'S CONDITION: Three status indicators on
the front of the UPS illuminate to specify the status of the UPS
(see Troubleshooting section for details).
Mains Indicator
Green: Normal operation
Amber: Buck/Boost
mode
Fault Indicator
Green: Overload/
Overtemperature
Battery Indicator
Green: On battery
Red: UPS fault
Amber: Battery
TRANSFER VOLTAGE SELECTORS (DIP SWITCHES)
The two-position DIP switch
Rear of UPS
control on the rear panel,
shown at right, allows the
operator to select the mains
transfer voltage at which
the UPS will switch to bat-
tery power. The factory
default settings are
100VAC - 135VAC. DIP
switch positions for each
voltage setting are:
DIP switch settings
Left Right Nominal Mains
↑ Up ↑ Up 230VAC
↑ Up ↓ Down
220VAC
↓ Down ↑ Up
240VAC
↓ Down ↓ Down 230VAC
CAUTION
!
Never change the voltage settings while the UPS
is ON and powering connected loads. Change
DIP switches only when the UPS is OFF.
CAUTION
!
To ensure protection of the connected equipment,
the DIP switch settings should match the nominal
mains input voltage. DIP switch settings not
matching the nominal mains could potentially
damage connected equipment.
PowerSure
Quick-Start Guide for 350-1000VA; 230V
C
OMMUNICATIONS
The PowerSure PSA will communicate with your computer in either of two ways: over its DB-9 port through Lie-
bert's MultiLink
MultiLink supplies useful monitoring data, such as input voltage and battery level, and will perform an orderly shut-
down of the computer system. Microsoft Windows XP and 2000 operating system utilities supply UPS status infor-
mation and will perform an orderly computer shutdown. Check your computer's OS features to determine whether
it has power management capability.
For MultiLink Serial Communications
• Connect the provided MultiLink serial cable to the DB-9 ports on the rear of the UPS and on the rear of your
computer.
• Install the MultiLink software—the software, installation instructions and the user manual are on the CD included
in the PowerSure PSA package.
For USB Communications (with operating system power management)
• Connect the USB cable provided with the UPS to the USB ports on the PSA and your computer. The PSA will
work automatically with the built-in power management software on Windows XP and 2000 or later.
• All USB models are compatible with Microsoft Windows 2000, Windows XP and Macintosh
S
PECIFICATIONS
Model Number
Power Rating VA/W
DIMENSIONS: mm (in.)
Unit
WxDxH
Shipping
WxDxH
WEIGHT: kg (lbs)
warning
Unit
Shipping
INPUT AC PARAMETERS
Surge Protection
DIP Switches Voltage Range Without
Battery Operation
Frequency Range
OUTPUT AC PARAMETERS
Output Receptacles
Output Power Cables
Setting Voltage (Normal mode)
Voltage (Battery mode)
163 - 282VAC (default)
Output Current
155 - 270VAC
Waveform (Battery mode)
171 - 291VAC
Frequency
163 - 282VAC
Overload Warning
(Normal & Battery modes)
Overload Shutdown
BATTERY PARAMETERS
Type
QuantityxVoltagexRating (1)x12Vx7Ah
Transfer Time
Backup Time
Full Load
Half Load
Recharge Time
* Power ON/OFF/
Alarm Silence
* Mains Indicator
PowerSure PSA PowerSure PSA
(Green)
Battery Indicator*
(Green/Amber)
* Fault Indicator
(Red/Green)
For details, see
* Controls and Indicators
** Installation
*** Communications
2
to connect the PowerSure
™
software or by USB through Microsoft
PSA350MT-230 PSA500MT-230 PSA650MT-230 PSA1000MT-230
350VA/210W 500VA/300W 650VA/390W
116x196x222 116x196x222 116x358x222
(4.6x7.7x8.7) (4.6x7.7x8.7) (4.6x14.1x8.7)
196x310x293 196x310x293 242x500x316
(7.7x12.2x11.5) (7.7x12.2x11.5) (9.5x19.7x12.4)
7.0 (15.4) 7.4 (16.3)
8.2 (18.0) 8.5 (18.7)
660J
155VAC - 291VAC, DIP switch selectable
(see "DIP switch settings" on page 1)
46.5 - 63.5 Hz (±0.1 Hz)
(4) IEC-320-C13 (orange)
Battery backup + surge protection;
(2) IEC-320-C13 (black)
Surge protection
2m (6.6 ft.) detached IEC-320-C14
2
(Wire Type: 1mm
Nominal (220, 230, 240VAC) ±10%
230VAC ±8%
1.5 A 2.1 A
Stepped Sinewave
50 Hz or 60 Hz; auto sensing
>100%
>110%
Valve-regulated, nonspillable, lead acid
(1)x12Vx9Ah (1)x12Vx9Ah
4 - 6 ms typical
At 25°C (77°F), resistive loading, with fully charged batteries:
8 minutes 7 minutes
22 minutes 21 minutes
6 hours to 90% of rated capacity,
after full discharge into a resistive load
™
PSA
*** USB port
*** DB-9 port
** Orange output
receptacles (battery
backup and surge
protection)
(4 receptacles on
350-650VA models)
Battery cover plate
(for 650&1000VA models)
(on rear of 350&500V
models)
Plug monitors, computers, & cash registers
and routers into orange receptacles
Plug this type of equipment into
black receptacles ONLY
Inkjet printers
® ®
Windows operating system features.
ENVIRONMENTAL
1000VA/600W
Operating
Temperature
Storage
116x358x222
Temperature
(4.6x14.1x8.7)
242x500x316
Relative
(9.5x19.7x12.4)
Humidity
Operating
9.1 (20.1) 13.2 (19.1)
Elevation
11.2 (24.7) 15.3 (33.7)
Audible Noise
AGENCY
Safety
Surge
(6) IEC-320-C13
(orange) Battery
ESD
backup + surge
protection;
(2) IEC-320-C13
Susceptibility
(black) Surge
protection
Electrical Fast
Transient/
, H05W-F 3G) Burst
Emissions
Conducted
2.8 A 4.3 A Immunity
Harmonics
Flicker
Transportation
(2)x12Vx7.5Ah
5 minutes 5 minutes
15 minutes 16 minutes
DIP switches *
Data Line
Protection
Connectors***
** Black output
receptacles
(surge protection only)
Input circuit protector
AC input
Scanners
Fax machines
®
OS 10.2 or later.
0°C to +40°C
(+32°F to + 104°F)
-15°C to +40°C
(+5°F to + 104°F)
0% to 95%, non-
condensing
Up to 3000m (10,000 ft.)
at 35°C (95°F) without
derating
< 40 dBA, at 1 meter
EN50091-1-1, TUV/GS
listed, CE compliance
mark
EN61000-4-5, Level 3,
Criteria A
EN61000-4-2, Level 3,
Criteria A
EN61000-4-3, Level 3,
Criteria A
EN61000-4-4, Level 3,
Criteria A
EN50091-2, Class B
EN61000-4-6
EN61000-3-2
EN61000-3-3
ISTA Procedure 1A
