- Page 1 AC Power For Business-Critical Continuity™ Liebert PSI XR ® ™ User Manual–1000/1500/2200/3000VA, 50/60Hz, 230VAC Liebert UPS user manual...
- Page 2 Liebert UPS user manual (BLANK PAGE)
-
Page 3: Table Of Contents
Liebert UPS user manual TABLE OF CONTENTS ............4 NTRODUCTION ’... - Page 4 Liebert PSI XR battery cabinet specifications........
-
Page 5: Save These Instructions
Liebert UPS user manual MPORTANT AFETY NSTRUCTIONS SAVE THESE INSTRUCTIONS This manual contains important safety instructions that must be followed during the installation and maintenance of the UPS and batteries. Read this manual thoroughly before attempting to install or operate this UPS. - Page 6 This UPS provides conditioned power to connected equipment. It is designed for commercial use only. It is not intended for use with life-support and other designated “critical” devices. Maximum load must not exceed that shown on the UPS rating label. If uncertain, consult your local Liebert or Emer- son Network Power Liebert Applications.
- Page 7 Liebert UPS user manual LOSSARY OF YMBOLS Risk of electrical shock Indicates caution followed by important instructions Indicates the unit contains a valve-regulated, lead-acid battery Recycle DC voltage Equipment grounding conductor Bonded to ground AC voltage ON/Alarm Silence/Manual Self-Diagnostic Test...
-
Page 8: Introduction

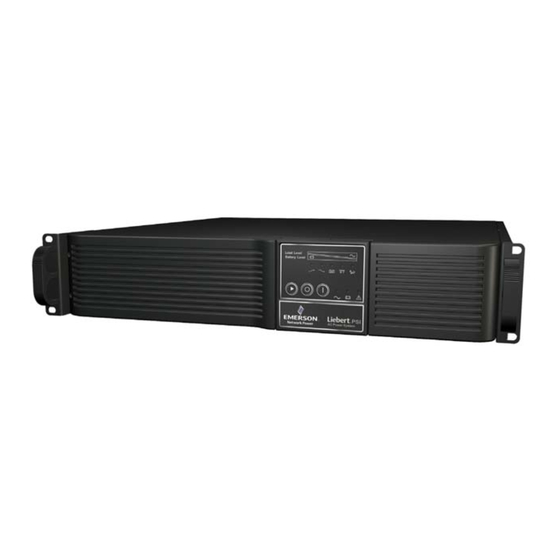

XR is a 2U, line-interactive UPS that may be installed in a rack or used as a tower UPS. Status indicators on the front of the Liebert PSI XR display load level, battery level, buck/boost, site- wiring fault and battery status. Controls include a combination ON/ Alarm Silence/Manual Self-Diag- nostic button, an Off button and a Display Status Change button. -
Page 9: What ' S Included
Liebert UPS user manual What’s Included ’ NCLUDED The Liebert PSI XR is shipped with the following items: • Multi-Language User Manual on CD • Liebert Shutdown Software and User Manual on CD • DB-9 Serial Cable • USB Cable •... -
Page 10: Installation
Decide where to install the Liebert PSI XR. The UPS must be installed indoors in a controlled envi- ronment. Place it in an area with unrestricted airflow around the unit, away from water, flammable liquids, gases, corrosives and conductive contaminants (see Figure 5). -
Page 11: Tower Ups Installation
Liebert UPS user manual Installation Tower UPS Installation See Figure 6 when using the Liebert PSI XR in a tower configuration. Figure 6 Tower configuration—attach Tower Stand Step 1 Step 2... -
Page 12: Rack-Mount Ups Conversion And Installation
Liebert UPS user manual Installation Rack-Mount UPS Conversion and Installation See Figure 7 when installing the Liebert PSI XR in a rack. External battery cabinets are installed in racks in the same manner. Figure 7 Convert the Liebert PSI XR for rack installation... -
Page 13: Orient Display For Installation
Installation Orient Display for Installation The Liebert PSI XR features a rotating display that may be oriented for either tower or rack installa- tions. To set the display for your installation, pull out on the display and rotate it until it is oriented cor- rectly, then press it into the UPS until it is seated. -
Page 14: Connect Network Surge Protection
Protection IN Jack Protection OUT Jack Connect Computer Interface Port Determine what type of communication connection to use to manage the UPS. The Liebert PSI XR can be monitored with any of these communication methods: • serial • contact closure •... -
Page 15: Epo Switch
Installation EPO Switch The Liebert PSI XR is equipped with an Emergency Power Off (EPO) switch. The user must supply a means of interfacing with the EPO circuit to allow disconnecting the UPS input feeder breaker to interrupt all sources of power to the UPS and connected equipment to comply with national and local wiring codes and regulations. -
Page 16: Figure 14 Connect Battery Cabinets To Ups
Liebert UPS user manual Installation Table 1 Battery cabinet connector color key Nominal System Voltage External Battery UPS Model (connector color) Cabinet Model PS1000RT3-230XR 24VDC (Red) PSRT3-24VBXR PS1500RT3-230XR PS2200RT3-230XR 48VDC (Gray) PSRT3-48VBXR PS3000RT3-230XR Figure 14 Connect battery cabinets to UPS... -
Page 17: Controls And Indicators
Controls and Indicators ONTROLS AND NDICATORS Buttons on the front panel display control the Liebert PSI XR. Eight LEDs on the panel indicate the UPS’s status. Refer to Figure 15 and Table 2. Figure 15 Display and status indicators Load Level... -
Page 18: Control Buttons
If LED still indicates that the battery is weak after the battery has been retested, contact your local dealer, local Emerson representative or Liebert Applications. If LED indicates a Battery Fault: Contact your local dealer, Emerson representative or Liebert Applications. -
Page 19: Battery Level Indicator
Liebert UPS user manual Controls and Indicators 4.2.3 Battery Level Indicator The five LEDs illuminate with a steady glow to indicate battery capacity. Battery capacity is shown for five seconds after the Status Change Button is pressed. The LEDs show the battery capacity as a range, ±... -
Page 20: Operational Modes
The Automatic Voltage Regulator (AVR) circuitry compensates for fluctuations in mains power, such as voltage surges and sags. The Liebert PSI XR compensates for these by raising the undervoltage (boost) or lowering the overvoltage (buck). The AVR operates automatically and maintains the output voltage to the connected equipment without utilizing the batteries. -
Page 21: Communication
Open Emitter Remote Shutdown Via the DB-9 Connector The Liebert PSI XR can be shut down remotely by shorting Pins 5 and 6 or via Pins 4 and 5 of the DB- 9 connector. 6.2.1 Any Mode Shutdown Via Pins 5 & 6 When Pin 6 is shorted to Pin 5, the UPS output is shut Off no matter what mode the UPS is operat- ing. -
Page 22: Data Line Protection Connectors
UPS Inverter/Transfer Voltage Configurations A two-pin DIP switch on the rear of the Liebert PSI XR permits setting the UPS to operate at nominal voltages of 220V, 230V or 240V. This feature will change the high and low points at which the UPS switches to battery power. -
Page 23: Battery Maintenance
UPS is switched Off. If the Liebert PSI XR will be stored for an extended period, Liebert recommends connecting the UPS to input power for at least 8 hours every four to six months to keep the batteries charged. -
Page 24: Specifications
Liebert UPS user manual Specifications PECIFICATIONS Table 6 Liebert PSI XR specifications Model Number PS1000RT3-230XR PS1500RT3-230XR PS2200RT3-230XR PS3000RT3-230XR Power Rating, VA/W 1000VA/900W 1500VA/1350W 2200VA/1980W 3000VA/2700W Dimensions, W x D x H, mm (in) 440 x 490.5 x 88 440 x 490.5 x 88 440 x 700.5 x 88... -
Page 25: Table 7 Liebert Psi Xr Battery Cabinet Specifications
Liebert UPS user manual Specifications Table 7 Liebert PSI XR battery cabinet specifications Model Number PSRT3-24VBXR PSRT3-48VBXR PS1000RT3-230XR PS2200RT3-230XR Used w/UPS Model PS1500RT3-230XR PS3000RT3-230XR Dimensions, W x D x H, mm (in) Unit 440 x 490.5 x 88 (17.3 x 19.3 x 3.5) Shipping 560 x 675 x 228 (22 x 26.6 x 9) -
Page 26: Table 8 Liebert Psi Xr Battery Run Times
Liebert UPS user manual Specifications Table 8 Liebert PSI XR battery run times Number of Batteries Load % 1000VA 1500VA 2200VA 3000VA Internal Battery Internal Battery + 1 External Battery Cabinets Internal Battery + 2 External Battery Cabinets Internal Battery... -
Page 27: Troubleshooting
Troubleshooting ROUBLESHOOTING The information below indicates various symptoms a user may encounter in the event the Liebert PSI XR experiences a problem. See Table 9 for suggested solutions. 1. An alarm sounds, alerting that the UPS requires attention. The alarm can be silenced except for low battery and overload warnings. - Page 28 Liebert UPS user manual Troubleshooting Notes (BLANK PAGE)
- Page 29 Liebert UPS user manual (BLANK PAGE)
- Page 30 While every precaution has been taken to ensure the accuracy and completeness of this literature, Liebert Corporation assumes no responsibility and disclaims all liability for damages resulting from use of this information or for any errors or omissions.
