- Page 1 OWER URE™ ERSONAL 300-500 VA 115V ANUAL English...
-
Page 2: Important Safety Instructions
Your UPS provides conditioned power to connected equipment. Maximum load must not exceed that shown on UPS rating label. If uncertain, consult your distributor or Liebert. Placing magnetic storage media on top of the UPS may result in data corruption. -
Page 3: Major Components

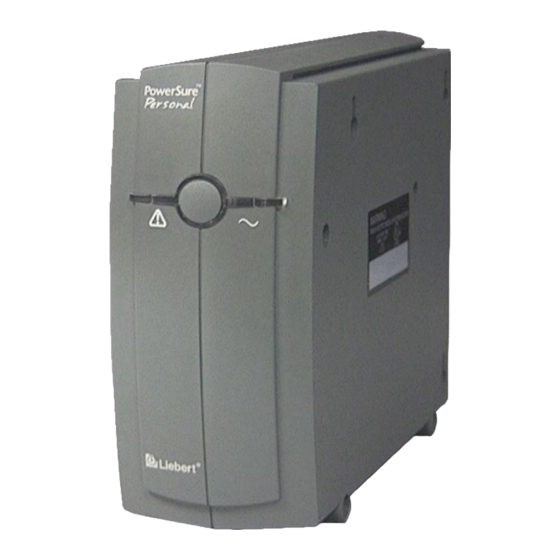

Connect the equipment into an outlet on a circuit different from that which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. PowerSure P ersonal Warning LED Power ON / Standby Liebert FRONT your choice MAJOR COMPONENTS DB-9 Interface for SiteNet MultiLink Cable... - Page 4 In normal operation, the battery charger converts utility AC power into regulated DC power to float charge the battery. Battery The PowerSure Personal utilizes valve regulated, nonspillable, lead acid battery. At typical room temperatures and with the UPS float charging, the battery system will last many years.
-
Page 5: General Installation
GENERAL INSTALLATION PowerSure P ersonal Liebert Remove from Box PowerSure P ersonal ° - 104° F Liebert 0° - 40° C PowerSure P ersonal Liebert Plug UPS into AC Check for Damage 4 Inches 110 mm Plug in Loads Press ON Button... -
Page 6: Maintenance
The PowerSure Personal UPS requires very little maintenance. The batteries are valve regulated, nonspillable, lead acid, and require that they be kept charged to obtain their designed life. batteries when connected to the utility supply. When storing the UPS for any length of time, it is recommended to plug in the UPS for at least 24 hours every four to six months to ensure full recharge of the batteries. -
Page 7: Pin Assignment
The PowerSure™ Personal UPS contains a standard DB-9 receptacle located on the rear of the UPS unit. Several signals are provided on this port and are assigned as follows: Pin Assignment *Maximum voltage and current on pins 1, 6, 7, 8, 9 is 60V DC; 5.0 mA. COMMUNICATIONS ASSIGNMENT DESCRIPTION Low Battery (open collector) -
Page 8: Troubleshooting
UPS - the total wattage of your equipment may exceed the capacity of the UPS. For further help, call your Liebert representative Turn OFF equipment and recharge UPS battery for at least 7 to 10 hours. If problem persists,... -
Page 9: Battery Mode
LED & ALARM INDICATIONS Startup Mode Green UPS Start 1-2 sec. AC Mode Mode Green AC Normal Check Battery Overload UPS Fault Battery Mode Mode Green Flash Back Up every 3 sec Flash UPS Fault every 3 sec Low Battery Flash Warning every 0.5 sec... - Page 10 Model Number Model Rating VA / W DIMENSIONS: in (mm) Unit H x W x D Shipping H x W x D WEIGHT: lbs (kg) Unit Shipping INPUT AC PARAMETERS Voltage Range without Battery Operation Low Line Transfer High Line Transfer Frequency Input Power Cord OUTPUT AC PARAMETERS...
-
Page 11: Limited Warranty
Liebert will repair or replace the UPS, at Liebert's option. Repairs or replacements are warranted for the remainder of the original warranty period. To make a warranty claim, purchaser should call a Liebert Representative to obtain a Returned Goods... -
Page 12: Technical Support
OWER Worldwide FAX tech support The Company Behind The Products With more than 500,000 installations around the globe, Liebert is the world leader in computer protection systems. founding in 1965, Liebert has developed a complete range of support and protection systems for sensitive electronics: •...
