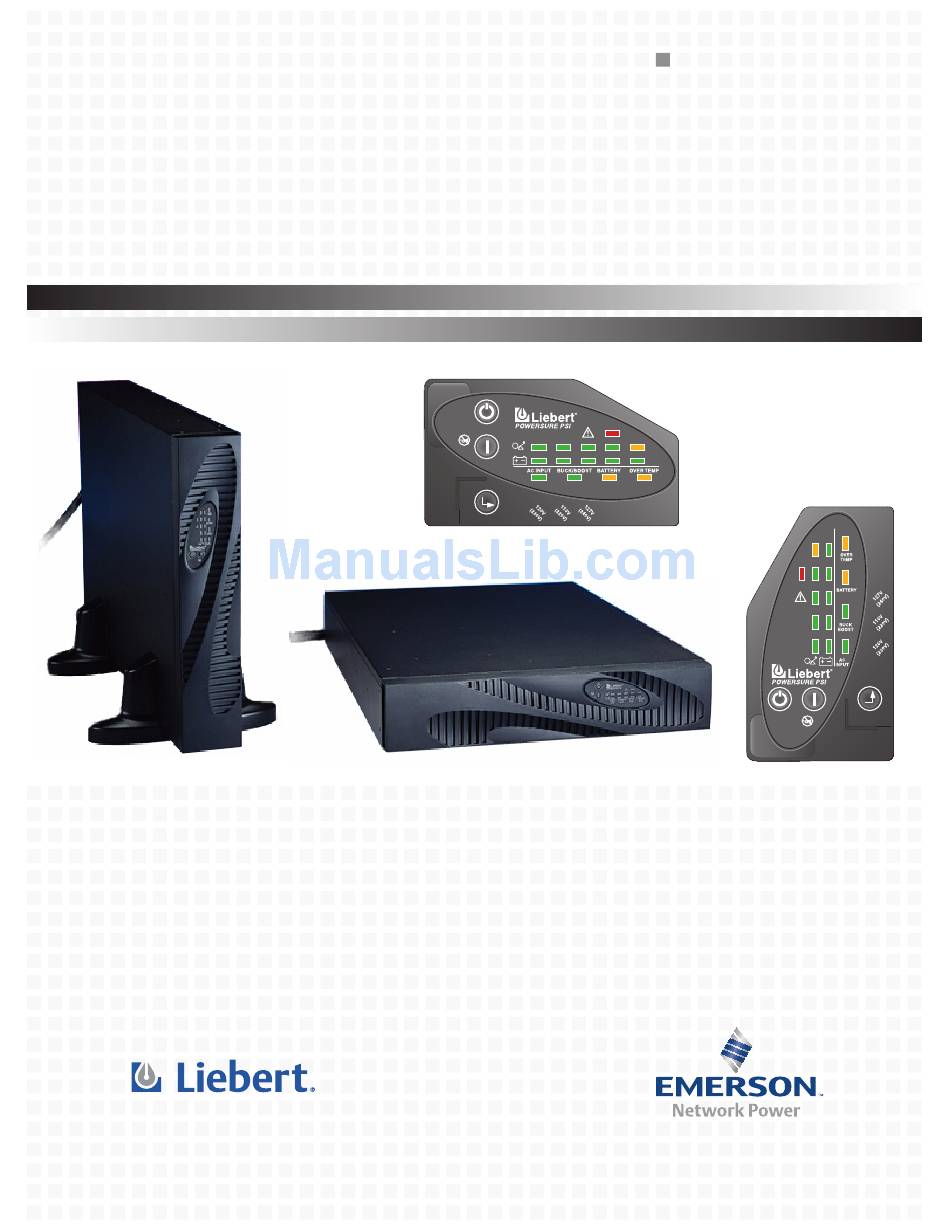

- Page 1 Liebert PowerSure PSI™ User Manual 1000 - 3000VA, 60 Hz, 120V Power Protection for Business Critical Continuity...
-
Page 3: Table Of Contents
MPORTANT AFETY NSTRUCTIONS LOSSARY OF YMBOLS ............4 NTRODUCTION AJOR OMPONENTS... - Page 4 Buck/Boost Mode ............17 Battery Mode .
- Page 5 Figure 1 Front view of UPS ..............4 Figure 2 1000 and 1440VA PSI—rear view .
-
Page 7: Save These Instructions
CONDITIONS OF USE: The input receptacle must be within 10 feet (3 meters) of the UPS. Your UPS provides conditioned power to connected equipment. Maximum load must not exceed that shown on UPS rating label. If uncertain, consult your local dealer, Liebert representative or the Lie- bert Worldwide Support Group. -
Page 8: Battery Handling Precautions
CAUTION BATTERY HANDLING PRECAUTIONS Servicing of batteries should be performed or supervised by personnel knowledgeable of batteries and required precautions. Keep unauthorized personnel away from the batteries. A battery can present a risk of electrical shock and high short-circuit current. The following precautions should be observed when working on batteries: •... -
Page 9: Glossary Of Symbols
LOSSARY OF YMBOLS Risk of electrical shock Indicates caution followed by important instructions Requests the user to consult the manual Indicates the unit contains a valve-regulated lead acid battery Recycle DC voltage Equipment grounding conductor Bonded to ground AC voltage ON/Alarm Silence/Battery Test Voltage Programming Button Glossary of Symbols... -
Page 10: Introduction
Liebert’s MultiLink™ software. MultiLink software can also remotely control UPS operation. The USB port provides detailed operating information and alarm status to the host system when used in conjunction with the Liebert Human Interface Device (HID) and Microsoft Power Manager software. -
Page 11: Figure 2 1000 And 1440Va Psi-Rear View
Figure 2 1000 and 1440VA PSI—rear view REPO Intellislot Port INTELLISLOT RS232 (DB-9) Port USB Port Figure 3 1920 and 2200VA PSI—rear view Intellislot Port Circuit Breaker REPO INPUT BREAKER PUSH TO RESET INPUT INTELLISLOT Attached Power Port Cord, 10ft (3m) RS232 (DB-9) Port Figure 4... -
Page 12: Major Components
AJOR OMPONENTS Figure 5 Line diagram of PowerSure PSI 1000VA & 1440VA Input EMI/RFI Filter Charger Figure 6 Line diagram of PowerSure PSI 1920VA, 2200VA & 3000VA Input EMI/RFI Filter Charger Transient Voltage Surge Suppression (TVSS) and EMI/RFI Filters These UPS components provide surge protection and filter both electromagnetic interference (EMI) and radio frequency interference (RFI). -
Page 13: Automatic Voltage Regulator
Automatic Voltage Regulator The Automatic Voltage Regulator (AVR) protects connected equipment from power spikes, sags and other abnormalities by raising (boosting) or lowering (bucking) the output voltage as needed. This keeps the UPS output voltage within the connected equipment’s tolerance and accommodates wide utility voltage fluctuations without utilizing the batteries. -
Page 14: What' Included
’ NCLUDED The PowerSure PSI is shipped with the following items: • PowerSure PSI user manual • Warranty card • MultiLink software CD • MultiLink serial cable, 10 ft (3m) • USB cable, 6 ft (1.8m) • RJ-11 cord, 7 ft (2.1m) •... -
Page 15: Installation
NSTALLATION Preparation 1. Visually inspect the UPS for freight damage. Report damage to the carrier and your local dealer or Liebert representative. CAUTION The UPS is heavy (see Table 4 - Battery cabinet specifications). Take proper precautions when lifting or moving it. -
Page 16: Rack-Mount Ups Conversion And Installation
Rack-Mount UPS Conversion and Installation NOTE When rack mounted, the UPS must be supported by a shelf, slide rails, brackets or fixed rails on each side. The rack mount handles WILL NOT support the weight of the UPS. They are used to move the UPS into and out of the rack. -
Page 17: Figure 10 Rack Mounting Rails And Slide Assemblies
4. Attach the two (2) fixed rails to the racks mounting rails. The fixed rail assemblies fit on the inside of the rack mounting rails. 5. Insert two (2) M5 flat head screws loosely (finger-tight) into the top and bottom holes on the front of the fixed rail assembly (see Figure 10). -
Page 18: Option 1 - Serial Communications
13. Connect Phone/Fax/DSL/Network/Modem devices to data line connectors. RJ11/RJ45 connection PHONE / FAX / MODEM / NETWORK PROTECTION LOAD 2 INPUT INPUT BREAKER PUSH TO RESET INTELLISLOT 14. Communication options (see 8.0 - Communications for details): Option 1 - Serial Communications Serial communications provides parametric data, for example, input voltage and battery voltage. -
Page 19: External Battery Cabinet Installation
Ground External Battery Cabinet Installation Optional Liebert external battery cabinets may be connected to the UPS to provide additional battery run time. External battery cabinets are designed to be placed all on one side of the UPS or stacked beneath the UPS. The run time is limited to a maximum of four (4) hours. -
Page 20: Controls And Indicators
• After 24 hours, retest the batteries. • After the batteries have been retested, if all five (5) Battery indicators are not illuminated, con- tact your local dealer, Liebert representative or Liebert Worldwide Support Group. OFF Button When the UPS is on (in either Normal or Battery mode), pressing the OFF button for more than one (1) second will shut down the UPS. -
Page 21: Voltage Programming Button
Voltage Programming Button The PowerSure PSI contains a Voltage Programming button that allows the operator to select the nominal utility voltage. This setting changes the utility transfer points (low and high) of the UPS and the nominal output voltage when operating in Battery mode. The operator can select between 110, 120 and 127 VAC output. -
Page 22: Over Temp Indicator-Amber
Over Temp Indicator—Amber The Over Temp Indicator flashes when the UPS detects an over temperature condition. This indicator illuminates when the UPS shuts down due to an over temperature condition (see Troubleshooting section for details). 6.10 Fault Indicator—Red The Fault Indicator illuminates when the UPS detects an internal problem (see Trouble- shooting section). -
Page 23: Modes Of Operation
ODES OF PERATION Normal Mode During Normal mode operation, the PowerSure PSI supplies conditioned, computer-grade power to the connected equipment: utility power passes through the TVSS circuitry and the EMI/RFI filters and then through the Inverter (1000VA & 1440VA) / Bi-Directional Converter (1920VA, 2200VA and 3000VA) to connected equipment. -
Page 24: Battery Mode
Battery Mode The UPS switches to Battery mode in the event of an extreme input voltage/frequency condition or complete utility failure. The battery system supplies power through the Inverter (1000VA & 1440VA) or through the DC-to-DC converter to the Bi-Directional Converter (1920, 2200VA and 3000VA) to generate power for the connected equipment. -
Page 25: Table 1 Db-9 Pin Assignment
MultiLink software. The DB-9 is capable of supplying serial communica- tion, on battery and low battery signals. MultiLink, Liebert’s UPS monitoring and shutdown soft- ware, is shipped with the UPS, along with a 10 ft. (3m) DB-9 cable required for running MultiLink. -
Page 26: Usb Interface Port
The PowerSure PSI is equipped with an Intellislot monitoring options. Liebert’s MultiLink software continually monitors the UPS and can shut down your computer or server in the event of an extended power failure. MultiLink can also be configured for use without the serial cable when the Intellislot OCWEBCARD is installed in the UPS. -
Page 27: Voltage Programming Procedure
OLTAGE ROGRAMMING Figure 18 Load Level Indicators Voltage Programming Button 1. Remove the front bezel from the UPS. 2. UPS must be operating in Normal (AC) mode. NOTE Utility power will be applied to the connected load. 3. The AC Input, Load, and Battery Level Indicators should be lit. 4. -
Page 28: Maintenance
• Do not lay tools or other metal objects on top of the batteries. • If the battery replacement kit is damaged in any way or shows signs of leakage, contact your local dealer or Liebert representative immediately. • Do not dispose of batteries in a fire. The batteries may explode. -
Page 29: 10.3.1 Internal Battery Replacement Procedure
6. Unpack the new battery assembly, taking care not to destroy the packing. Compare new and old battery assemblies to make sure they are the same. If so, proceed with Step 7; otherwise STOP and contact your local dealer, Liebert representative, or the Liebert Worldwide Support Group. 7. Slide in the new replacement battery pack. -
Page 30: Troubleshooting
11.0 T ROUBLESHOOTING The information below indicates various symptoms a user may encounter in the event the PowerSure PSI experiences a problem. Use this information to determine whether external factors caused the problem. See Table 2 - Troubleshooting chart for suggested remedy. 1. -
Page 31: Table 2 Troubleshooting Chart
Check the circuit protector on the rear of the UPS. If it is tripped, reset it and restart the UPS. For Short circuit further help, contact your local dealer, Liebert representative or the Liebert Worldwide Support Group. Battery disconnected or is... -
Page 32: Specifications
12.0 S PECIFICATIONS Table 3 UPS specifications Model Number PS1000RT2-120 Power Rating, VA/W 1000VA/750W Dimensions, W x D x H, in (mm) 3.43 x 22 x 17 Unit (87 x 557 x 430) 11.8 x 27.8 x 23.5 Shipping (300 x 706 x 598) Weight, lbs (kg) Unit 61.7 (28) -
Page 33: Table 4 Battery Cabinet Specifications
Table 3 UPS specifications (continued) PS1000RT2-120 Model Number Agency Safety Surge Susceptibility Electrical Fast Transient Emissions FCC Part 15, Class B Conducted Immunity Harmonics Flicker Transportation Table 4 Battery cabinet specifications Model Number Used w/UPS Model Dimensions, W x D x H, in (mm) Unit Shipping Weight, lbs (kg) -
Page 34: Table 5 Battery Run Times
Table 5 Battery run times Load% Internal Battery (minutes) 100% Internal Battery + 1 External Battery Cabinet (minutes) 100% Internal Battery + 2 External Battery Cabinets (minutes) 100% Internal Battery + 3 External Battery Cabinets (minutes) 100% Internal Battery + 4 External Battery Cabinets (minutes) 100%... -
Page 35: Product Warranty Registration
12.1 Product Warranty Registration To register for warranty protection, visit the Quick Links section of our Web site at: www.liebert.com Click on Product Warranty Registration and complete the form. If you have any questions, please contact us at: US: (800) 222-5877... -
Page 36: Technical Support Service
The Company Behind the Products With over a million installations around the globe, Liebert is the world leader in computer protection systems. Since its founding in 1965, Liebert has developed a complete range of support and protection systems for sensitive electronics: •...
