Liebert 700 VA User Manual

700-2200 va 120 v
Hide thumbs

Advertisement

Table of Contents

DISCONTINUED
PRODUCT
P
P
OWER
ROTECTION
R
PowerSure™ Interactive
700-2200 VA
120 V
U
M
SER
ANUAL
English

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 700 VA and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Liebert 700 VA

Summary of Contents for Liebert 700 VA

  • Page 1 DISCONTINUED PRODUCT OWER ROTECTION PowerSure™ Interactive 700-2200 VA 120 V ANUAL English...

  • Page 2: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS WARNING: Do not attempt to service this product yourself except to replace the battery. Opening or removing the cover may expose you to dangerous voltages, even when the AC cord is disconnected from the electrical outlet. Refer all servicing to qualified service personnel. 1.
  • Page 3 it, or the safety ground will be removed. Operate UPS only from a properly grounded 120 VAC outlet (2 wire plus ground). 9. The UPS is equipped with a grounded NEMA 5-15P or L5-30P input power plug (depending upon model). Do not defeat the safety purpose of this plug.

  • Page 4: Introduction & System Description

    INTRODUCTION & SYSTEM DESCRIPTION Congratulations on your choice of the Liebert PowerSure™ Interactive Uninterruptible Power System (UPS). It provides conditioned power to microcomputers and other sensitive electronic equipment. Upon generation, AC power is clean and stable. However, during transmission it may be subject to voltage sags, spikes, or complete power failure which may interrupt computer operations, cause data loss, or even damage equipment.

  • Page 5: Major Components

    MAJOR COMPONENTS TRANSIENT VOLTAGE SURGE SUPPRESSION (TVSS) AND EMI/RFI FILTERS These UPS components provide surge protection and filter Electromagnetic Interference (EMI) and Radio Frequency Interference (RFI). They minimize any surges or interference present in the utility line and keep the sensitive equipment protected.
  • Page 6 MINI-TOWER INSTALLATION Unpack the UPS carefully noting the packing method. Retain the box and packing material for possible future shipment. CAUTION: The UPS is heavy (see specifications). Take proper precautions when lifting or moving it. Visually inspect the UPS for freight damage. Report damage to the carrier and your dealer.

  • Page 7: Rack Mount Installation

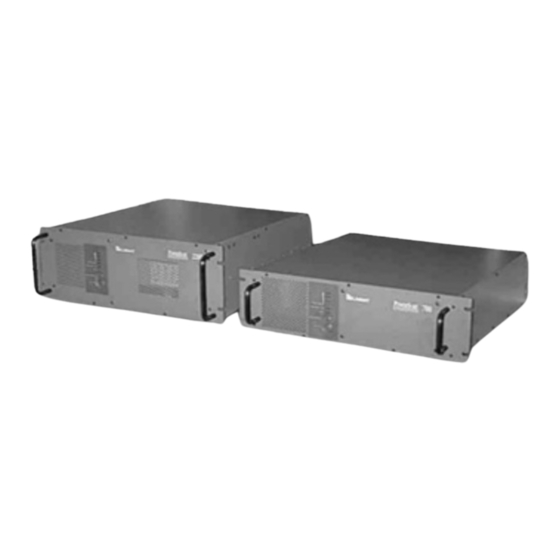

    RACKMOUNT INSTALLATION Unpack the UPS carefully noting the packing method. Retain box and packing material for possible future shipment. CAUTION: The UPS is heavy (see specifications). Take the proper precautions when lifting or moving the UPS. Visually inspect the UPS for freight damage. Report any damage to the carrier and your dealer.

  • Page 8: Controls And Indicators

    24 hours. After 24 hours, retest the batteries. If the batteries have been retested and the top two LEDs still do not illuminate, contact your dealer or Liebert Technical Support (LTS) for a battery replacement kit. Site Wiring Fault Indicator (RED) An illuminated LED indicates the UPS has detected a miswired utility receptacle.
  • Page 9 Level Indicators Indicator Alarm Silence/ Utility/Battery Battery Test Button Status Indicator On/Off Button Output Receptacles DB-9 Interface Port AC Inlet Intellislot™ Communications Port Circuit Protector or Fuse Site Wiring Fault Indicator 700 VA 1000 / 1400 VA 2200 VA DISCONTINUED PRODUCT...
  • Page 10 POWERSURE™ INTERACTIVE RACKMOUNT Utility High / Low Indicator Fault Indicator Load / Battery Utility/ Battery Level Indicators Status Indicator Load / Battery Utility High / Low Utility Alarm Silence On / Off Alarm Silence / On / Off Button Battery Test Button 2200 Model 700-1400 Models *700 Model has detachable cord...

  • Page 11: Operation

    OPERATION NORMAL MODE OPERATION During normal operation, utility power provides energy to the UPS. The filters and the power conditioning circuit process this power to provide computer grade power to connected loads. The UPS maintains the batteries in a fully charged state. The front panel displays the percentage of load on the UPS output.
  • Page 12 BATTERY MODE OPERATION Battery mode occurs in event of extreme input conditions or complete utility failure. The battery system along with the bi-directional converter generates power for the connected load. During battery mode an alarm sounds every 10 seconds. This will change to 2 beeps every 5 seconds when battery runs low (approximately 2 minutes remaining).

  • Page 13: Communications Interface Port

    Monitoring of the UPS via a computer system is easily made with a Liebert SiteNet® 1 shutdown kit (sold separately).

  • Page 14: Ups Intelligent Communications

    Timed and delayed shutdown of the UPS • Logging of power disturbances and anomalies • Contact your local Liebert representative, dealer, or reseller for more information about SiteNet® 2 software. UPS INTELLISLOT™ COMMUNICATIONS The PowerSure™ Interactive UPS contains an Intellislot™ communications port for the optional internal communications, such as the Ethernet SNMP card.
  • Page 15 • If you feel unqualified to replace the battery, do not open the battery door. Call Liebert Technical Support (LTS). World Wide Technical Support numbers are located at the end of this section. Grasp the front bezel near the top and pull forward.
  • Page 16 MINI-TOWER BATTERY REPLACEMENT Pull bezel forward Rotate bezel on top Remove battery door 700 VA Model To Disconnect: Gently pull wiring away To Connect: Connect red wire to red terminal, then black wire to black terminal by pushing towards connector...
  • Page 17 Do not dispose of batteries in a fire, the batteries may explode. If you feel unqualified to replace the battery, do not open the battery door. Call Liebert Technical Support (LTS). World Wide Technical Support numbers are located at the end of this section.
  • Page 18 Figure 1 Figure 2 Figure 3 Figure 5 Figure 4 Figure 7 Figure 6 DISCONTINUED PRODUCT...

  • Page 19: Troubleshooting

    The fault indicators will be illuminated indefinitely while battery charger is operational, or for a maximum of 5 minutes while battery charger is not operational. If a problem persists consult your dealer, or contact Liebert Technical Support (LTS). World Wide Technical Support numbers are located at the end of this section.

  • Page 20: Troubleshooting Guide

    TROUBLESHOOTING GUIDE PROBLEM CAUSE SOLUTION UPS fails to start when On/Off UPS output short circuited or Ensure UPS is off. Disconnect all button is pressed overloaded. loads and ensure nothing is lodged in output receptacles. Ensure loads are not defective or shorted internally.
  • Page 21 POWERSURE™ INTERACTIVE TYPICAL BATTERY DISCHARGE CURVES (Discharge times are at 25° C ambient) 700 VA 1000 VA Percent Load Percent Load 1400 VA 2200 VA Percent Load Percent Load DISCONTINUED PRODUCT...
  • Page 22 Two second beep every minute UPS output overload One short beep every second UPS fault Continuous tone FUSE REPLACEMENT PROCEDURES FOR 700 VA MODELS AC Inlet Insert flat blade screw driver into slot and pull fuse holder out to remove Fuse Holder...
  • Page 23 MINI-TOWER SPECIFICATIONS Model Number PS700MT-120 PS1000MT-120 PS1400MT-120 PS2200MT-120 Model Rating VA/W 700 / 450 1000 / 670 1400 / 950 2200 / 1600 DIMENSIONS: in (mm) Unit 5.5 x 14.4 x 7.0 6.8 x 17.5 x 8.9 6.8 x 17.5 x 8.9 7.6 x 20.1 x 13.2 (140 x 365 x 178) (172 x 447 x 227)

  • Page 24: Rackmount Specifications

    RACKMOUNT SPECIFICATIONS Model Number PS700RM-120 PS1000RM-120 PS1400RM-120 PS2200RM-120 Model Rating VA/W 700 / 450 1000 / 670 1400 / 950 2200 / 1600 DIMENSIONS: in (mm) Unit 19 x 18 x 5.25 19 x 18 x 5.25 19 x 18 x 5.25 19 x 18 x 7 (483 x 457 x 133) (483 x 457 x 133)
  • Page 25 DISCONTINUED PRODUCT...

  • Page 26: Technical Support

    The Company Behind The Products While every precaution has With more than 500,000 installations around the been taken to ensure globe, Liebert is the world leader in computer Corporation assumes no protection systems. Since its founding in 1965, responsibility, and disclaims all...

This manual is also suitable for:

1000 va1400 va2200 vaPowersure interactive ps700mt-120Powersure interactive ps1000mt-120Powersure interactive ps1400mt-120 ... Show all
