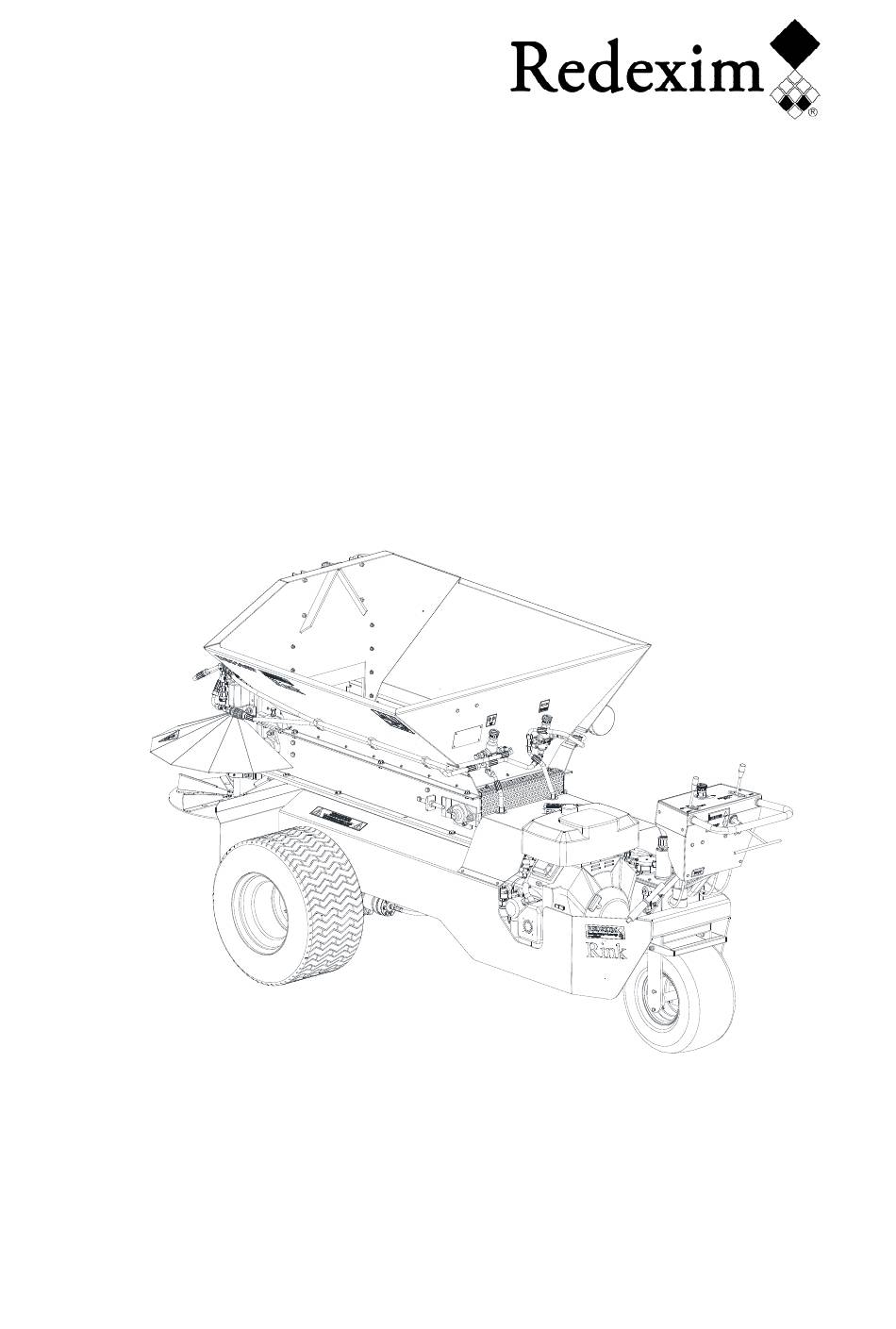

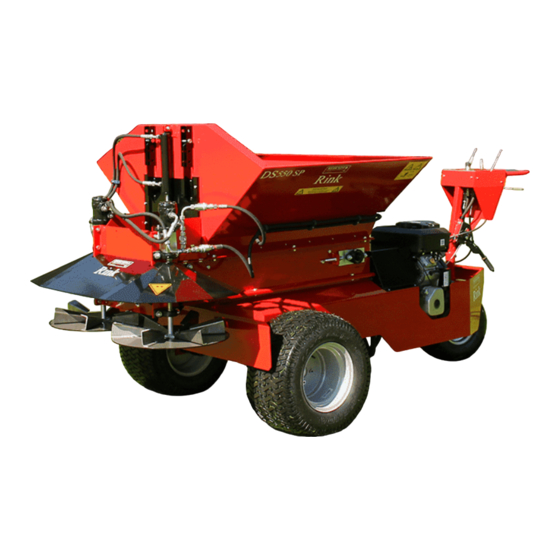

Operating Instructions and

Spare Parts Book

Rink DS550SP
Serial Number
Translation of the original operating instructions
Attention:
TO ENSURE A SAFE USE OF THE MACHINE AND THE BEST RESULTS, IT IS OF UTMOST
IMPORTANCE TO CAREFULLY READ THIS OPERATING MANUAL BEFORE USING THE RINK
DS550SP.
English 933.120.418
1712
Kwekerijweg 8
3709JA Zeist
The Netherlands
T: (31)306933227
F: (31)306933228
E: verti-drain@redexim.com
www.redexim.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Rink DS550SP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Redexim Rink DS550SP

Summary of Contents for Redexim Rink DS550SP

  • Page 1: Operating Instructions And

    Operating Instructions and Spare Parts Book Kwekerijweg 8 3709JA Zeist The Netherlands Rink DS550SP T: (31)306933227 F: (31)306933228 E: verti-drain@redexim.com www.redexim.com Serial Number Translation of the original operating instructions Attention: TO ENSURE A SAFE USE OF THE MACHINE AND THE BEST RESULTS, IT IS OF UTMOST IMPORTANCE TO CAREFULLY READ THIS OPERATING MANUAL BEFORE USING THE RINK DS550SP.

  • Page 2: Safety Regulations

     The intended use also includes adherence with the manufacturer book's operating, maintenance and repair requirements.  The RINK DS550SP Disc Spreader is reliable in operation and is built according to the latest technology; unless it is well maintained and used by individuals who are familiar with it and are informed of possible dangers, the RINK DS550SP Disc Spreader may constitute a hazard to the lives of the user and other persons.
  • Page 3 Do not wear loose clothing. Use appropriate personal protective equipment in accordance with the existing workplace safety and general safety regulations.  A noise of about 74 dB (a) at the RINK DS550SP Disc Spreader accrued in the immediate vicinity to the spreading discs.
  • Page 4 When carrying out maintenance, adjustments and repair work always switch off the  engine and remove the key from the ignition. (Fig. S3) Figure S3  During operation, NO persons without the appropriate personal protective equipment may stay in the danger area of the RINK DS5550SP, as there is risk of injury by projected material (Fig.

  • Page 5: Table Of Contents

    T A B L E O F C O N T E N T S Operating Instructions and ..................1   Spare Parts Book ...................... 1   SAFETY REGULATIONS ..................2   1.0 BRIEF DESCRIPTION ..................6   2.0 SPECIFICATIONS ....................6  ...

  • Page 6: Brief Description

    1.0 BRIEF DESCRIPTION The RINK DS550SP Disc Spreader is used for spreading small-grained materials, such as sand, gravel and so on. The disc spreader of the conveyor belt is driven by a gear with a hydraulic motor. The two disc spreaders are each driven by one hydraulic motor. The speed sensor of the hydraulic motors for the conveyor belt and the disc spreaders are connected through an adjustable flow regulator.

  • Page 7: Getting Started

    4.0 OPERATING Before every trip Check the RINK DS550SP Disc Spreader for visible damage, and repair any damage. Check tyre pressure. Check run marks of the conveyor belt, since the conveyor belt must not rub at the side adjust if necessary (see page 15).

  • Page 8: Driving

    5.0 Driving Controls (1) Gear lever forward - backward (2) Conveyor belt controller (3) Disc spreader control (4) Flow regulator (speed) (5) Brake lever (parking brake) Fig. 1: Controls - 8 - DS550PB...

  • Page 9: Control System

    By pulling the Disc Spreader controller (3), the oil circuit will be activated and the Disc Spreader will begin to spin. To move around the RINK DS550SP Disc Spreader and to turn on the belt, this controller must be pressed.

  • Page 10: Spreading

    6.0 SPREADING When operating the Disc Spreader controller (3), the disc spreader is automatically activated. The conveyor belt and the valve (3) are activated by operating the conveyor controller (2), first the valve (3) is activated and then with a small delay, the conveyor belt is activated. Before starting work, select valve position A-D.

  • Page 11: Adjust Spread Thickness

    Adjust spread thickness The spread thickness depends on: the driving speed the speed of the conveyor belt - controller (1) the speed of the disc spreader - controller (2) the opening (A-G) of the automatic valve (3) Spreading Chart Disc Spread Spread Rate Conveyor Belt...

  • Page 12: Spreading Different Scatter Materials

    Spreading different scatter materials Different scattering materials require different types of settings. The RINK DS550SP Disc Spreader can be adjusted by the following material scattering. Rotation of the throw shovel loader (see disc setting with the irregular spread pattern - Fig 5) Regulating the conveyor belt speed with the controller (1) (see page 10 - Fig.2)

  • Page 13: Care And Maintenance

    7.0 CARE and MAINTENANCE Bearings with multi-purpose grease (every 50 hours) (1) Bearings on both sides of the spreading disc (2) Bearings on both sides of the rear transportation shaft (3) Bearings on both sides of the front transportation shaft (4) Bearings on both sides of the wheel hub (5) Bearings on both sides of the drive shafts (6) Bush on the front fork...

  • Page 14: Change The Oil On Conveyor Belt Transmission (Every 100 Hours)

    Change the oil on conveyor belt transmission (every 100 hours) Remove filler plug (11). Remove drain plug (12) on the inside bottom and drain the oil. Screw the drain plug (12) back with a new gasket. 0.6 l of SAE85-W140 oil to fill Screw filler plug with a new gasket.

  • Page 15: Conveyor Belt Tightening (If There Is Slippage)

    Conveyor belt tightening (if there is slippage) - Loosen locknuts (13) on both sides. - Screw nuts (14) evenly on both sides, each in clockwise direction. Tighten gradually one-half turn. - Tighten locknuts (13) on both sides again. Tightening excessively shortens the life of the conveyor belt! Fig.

  • Page 16: Install The Conveyor Belt

    Install the conveyor belt Remove RINK DS550SP Disc Spreader from the chassis Disconnect the hydraulic connectors and spreading system (1) by loosening the screws (2). Remove the protective (3) and rubber (4) covers to the right. Loosen the conveyor belt (7) on both sides by loosening the screw-nuts (8) Remove the connecting bolts (9) on the hopper (10).

  • Page 17: Oil Tank

    Oil tank Fig. 10: Oil tank Oil change at the hydraulic tank (every 100 operating hours) - Loosen suction hose (1) and drain oil. - Replace the suction hose (1). - Remove cover (2) from filler neck. - Fill Plantosyn 3268 ECO as far as the eyeglass center (3). - Close the cover (2).

  • Page 18: Troubleshooting

    8.0 TROUBLESHOOTING Problem Cause Solution Valve does not open No material in the hopper Fill in material Throttle valve set too low Open throttle valve (9) to adjust valve (fig 7) Scattering width is too Disc spreader turns too slow Increase disc spreader speed (2) narrow (fig 2)

  • Page 19: Special Features

    SPECIAL FEATURES Weight plate assembly (To improve driving on slopes) By mounting the weight plate assembly (order no .: RGS 17203), the mass of the RINK plate spreader DS550SP in the front area increases. This improves the driving behavior of the machine, especially on slopes and on steep terrain. - Drill pre-drilled holes Ø...
  • Page 20 Parts manual...
  • Page 22 Redexim RINK DS550SP Page 01 Code 1712...
  • Page 23 Redexim RINK DS550SP Page 01 Code 1712 PART NO DESCRIPTION REMARKS Drive See parts page 02 Hopper See parts page 03 RGS 16904 Cover RGS 10268 Edge protection RGS 5010 Cable with connection kit L=2500mm RGS 10671 Hydraulic hose 10x750 547.130.200...
  • Page 24 Redexim RINK DS550SP Page 02 Code 1712 74 85 75 85 84 96 85 79 90 75 85 73 99 88...
  • Page 25 Redexim RINK DS550SP Page 02 Code 1712...
  • Page 26 Redexim RINK DS550SP Page 02 Code 1712...
  • Page 27 Redexim RINK DS550SP Page 02 Code 1712 50 44 69 97 97 86...
  • Page 28 Redexim RINK DS550SP Page 02 Code 1712 PART NO DESCRIPTION REMARKS RGS 16900 Frame RGS 16910 Control box RGS 16914 Front fork RGS 16917 Brake lever RGS 16077 Oil tank RGS 16916 Handlebar RGS 16929 Axle RGS 17154 Drive shaft...
  • Page 29 880.080.102 Grease nipple M8 90 degree 880.060.100 Grease nipple M6 880.060.102 Grease nipple M6 90 degree 884.100.300 Key A10x8x30 884.080.320 Key A8x7x35 RGS 10678 Bolt RGS 5101 Wheel nut RGS 10440 Bush RGS 16934 Hose for handle 804.120.350 Bolt M12x35 804.100.350 Bolt M10x35 804.100.250...
  • Page 30 Redexim RINK DS550SP Page 03 Code 1712...
  • Page 31 Redexim RINK DS550SP Page 03 Code 1712...
  • Page 32 Redexim RINK DS550SP Page 03 Code 1712 PART NO DESCRIPTION REMARKS Funnel complete See parts page 04 Belt unit DS550 See parts page 05 Disc unit See parts page 06 RGS 16384 Rubber clamp strip RGS 11148 Spreading plate RGS 16377...
  • Page 34 Redexim RINK DS550SP Page 04 Code 1810...
  • Page 35 Redexim RINK DS550SP Page 04 Code 1810...
  • Page 36 Redexim RINK DS550SP Page 04 Code 1810 PART NO DESCRIPTION REMARKS RGS 16444 Hopper DS550 RGS 16360 Gate adjuster bracket RGS 16359 Gate distance plate RGS 16358 Gate guide plate RGS 16409 Gate RGS 11145 Rubber clamp strip RGS 16375...
  • Page 38 Redexim RINK DS550SP Page 05 Code 1712...
  • Page 39 Redexim RINK DS550SP Page 05 Code 1712 PART NO DESCRIPTION REMARKS RGS 16447 Floor RGS 16450 right Side panel right RGS 16450 left Side panel left RGS 16331 right Sandguide right RGS 16331 left Sandguide left RGS 16326 Roller front...
  • Page 40 Redexim RINK DS550SP Page 06 Code 1712...
  • Page 41 Redexim RINK DS550SP Page 06 Code 1712 PART NO DESCRIPTION REMARKS RGS 16301 Disc RGS 16329 Shaft RGS 16337 left Spinner shaft holder left RGS 16337 right Spinner shaft holder right RGS 16305 Rear plate RGS 16352 Sand guide plate...
  • Page 42 Redexim RINK DS550SP Page 07 Code 1712...
  • Page 43 Redexim RINK DS550SP Page 07 Code 1712 PART NO DESCRIPTION REMARKS RGS 17185 Weight plate 900.260.403 Logo Label 933.260.402 Decall Rink 804.100.500 Bolt M10x50 830.100.100 Self-lock nut M10 866.100.020 Spring washer M10...
  • Page 44 Redexim RINK DS550SP Page Code 1320 RINK DS550SP decalls...
  • Page 45 ITEM 444.803.100 Toolbox Complete 900.260.403 Logo Label 900.280.402 Safety decall manual 911.340.410 Safety decall noise 933.260.426 Decall 550 933.260.402 Decall Rink 933.260.418 Decall DS 933.280.402 Safety decall Rink Verti-Top 933.280.404 Safety decall max load 944.260.406 Decall SP RINK DS550SP decalls...
