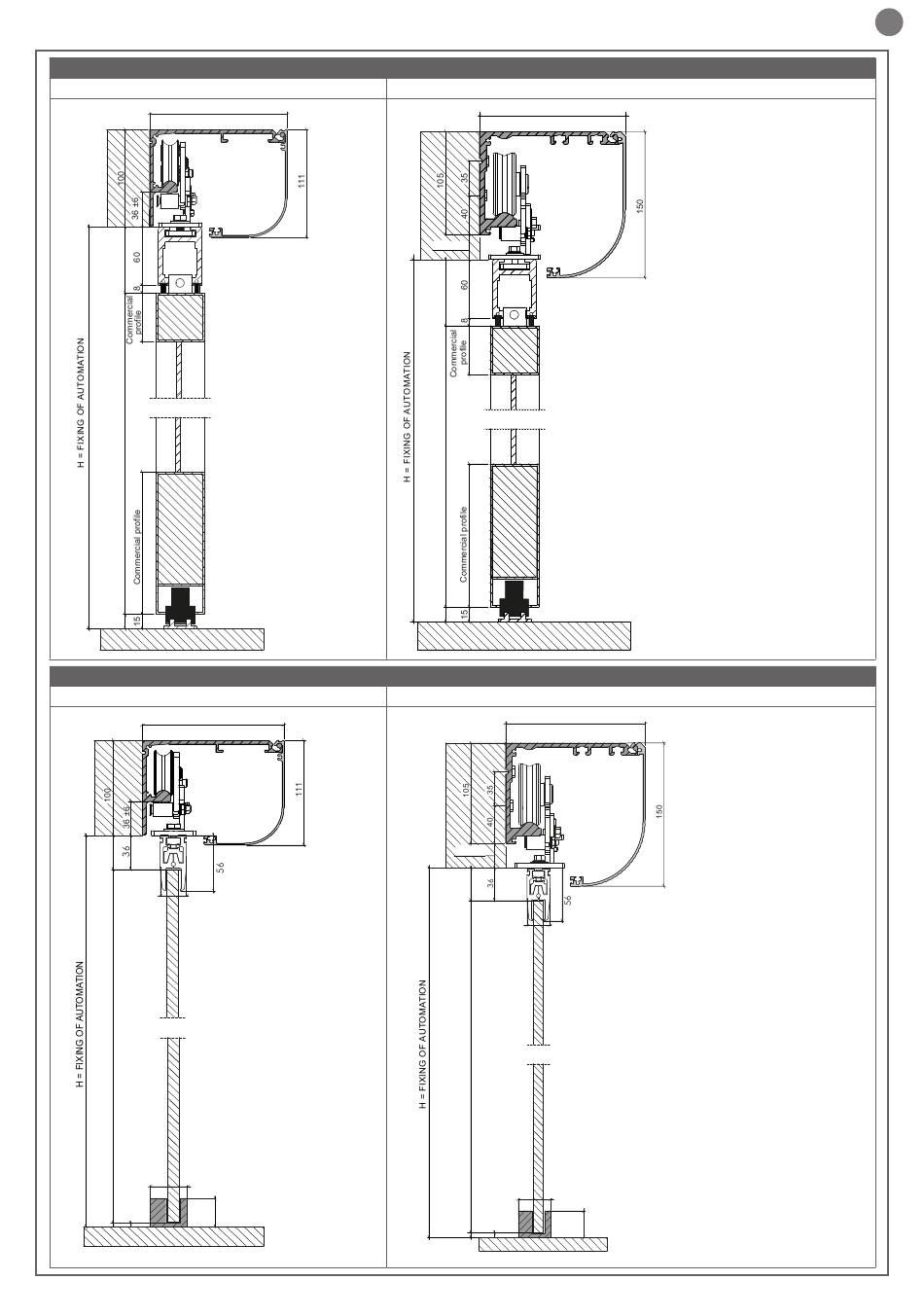

CROSS-SECTIONS WITH ANTI-PANIC BREAK-OUT SYSTEM (900KITANTSF1)
WIND LIGHT
142
HS
H= HS + HW + H3
(adjustment ± 6 mm)
HW
H3
CROSS-SECTIONS WITH FASTENING KIT FOR GLASS LEAF PA005E
WIND LIGHT
142
HC
25
H= HC + HW + H3
(adjustment ± 6 mm)
HW
40
32
7
H3
150
25 ±10
HS
H= HS + HW + H3
(adjustment ± 10 mm)
HW
H3
150
25 ±10
HC
25
H= HC + HW + H3
(adjustment ± 10 mm)
HW
40
32
7
H3
WIND
LEGEND:
H = Automation installation height
HS = Height of anti-panic breakout
system 900KITANTSF1
HW = Height of leaf
H3 = Ground clearance
WIND
LEGEND:
H = Automation installation height
HC = Height of PA005E
fastening kit for glass leaf
HW = Height of leaf
H3 = Ground clearance
