Y

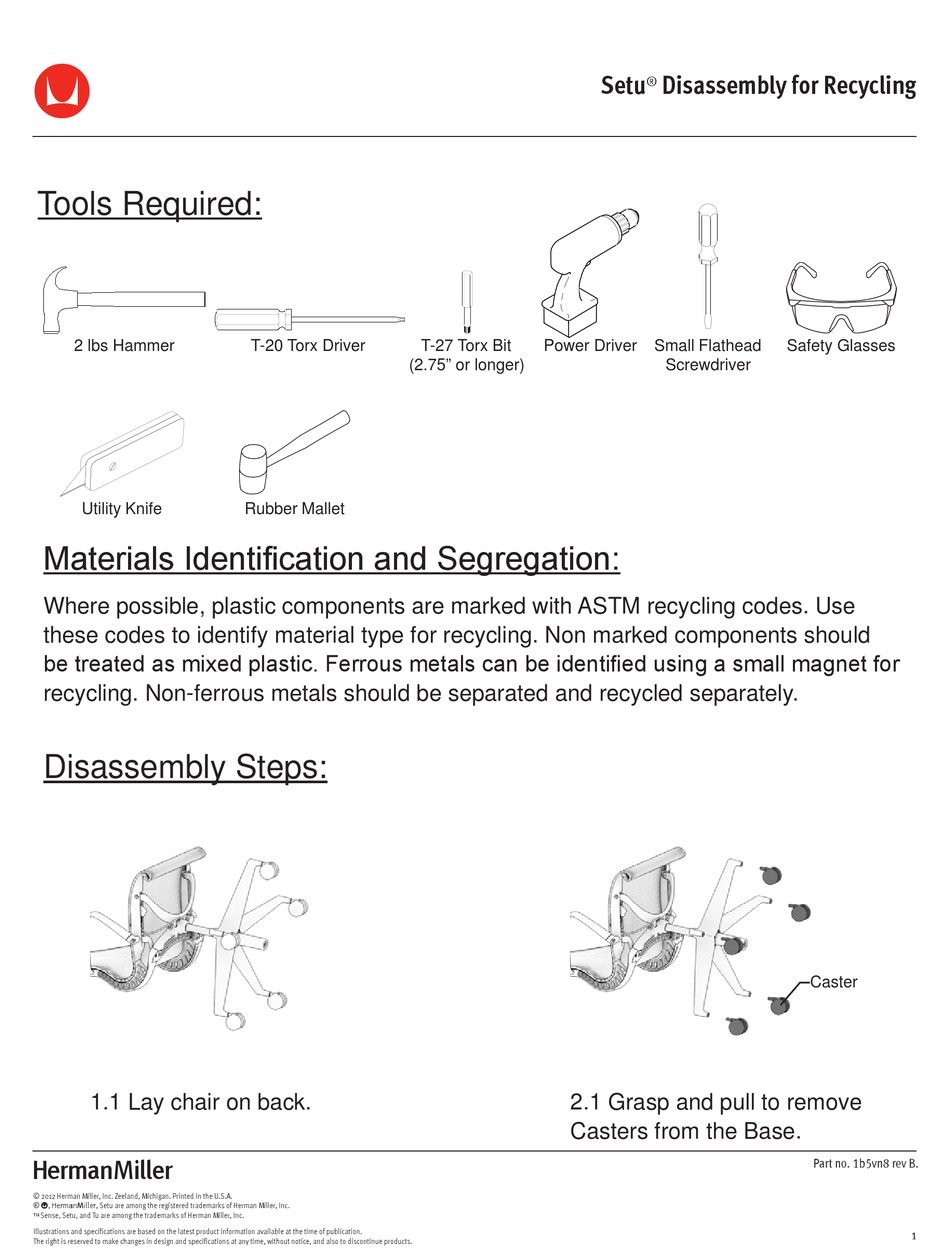

Tools Required:
2 lbs Hammer
Utility Knife
Materials Identification and Segregation:
Where possible, plastic components are marked with ASTM recycling codes. Use
these codes to identify material type for recycling. Non marked components should
be treated as mixed plastic. Ferrous metals can be identified using a small magnet for
recycling. Non-ferrous metals should be separated and recycled separately.
Disassembly Steps:
1.1 Lay chair on back.
Z
© 2012 Herman Miller, Inc. Zeeland, Michigan. Printed in the U.S.A.
® Y, Z, Setu are among the registered trademarks of Herman Miller, Inc.
Sense, Setu, and Tu are among the trademarks of Herman Miller, Inc.
TM
Illustrations and specifications are based on the latest product information available at the time of publication.
The right is reserved to make changes in design and specifications at any time, without notice, and also to discontinue products.
T-20 Torx Driver
T-27 Torx Bit
(2.75" or longer)
Rubber Mallet

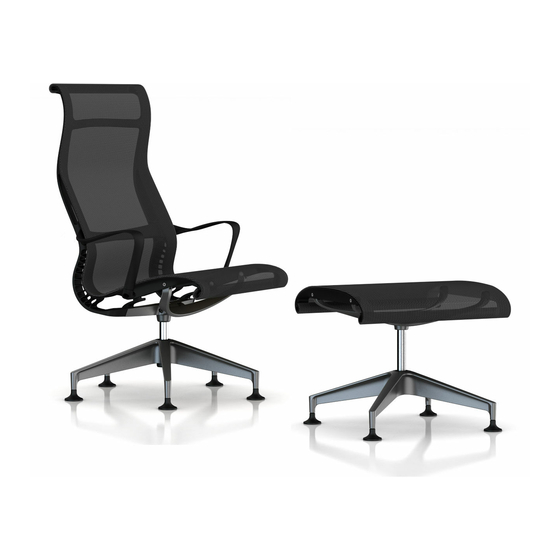

Setu
Disassembly for Recycling
®
Power Driver
Small Flathead
Screwdriver
2.1 Grasp and pull to remove
Casters from the Base.
Safety Glasses
Caster
Part no. 1b5vn8 rev B.
1
Advertisement
Related Manuals for HermanMiller Setu Lounge Chair
Summary of Contents for HermanMiller Setu Lounge Chair
- Page 1 Setu Disassembly for Recycling ® Tools Required: 2 lbs Hammer T-20 Torx Driver T-27 Torx Bit Power Driver Small Flathead Safety Glasses (2.75” or longer) Screwdriver Utility Knife Rubber Mallet Materials Identification and Segregation: Where possible, plastic components are marked with ASTM recycling codes. Use these codes to identify material type for recycling.
- Page 2 Rubber Mallet 3.1 Hold Base legs firmly and 4.1 Remove Base. strike the bottom of cylinder with rubber mallet until Base comes loose. Caution: Do not strike cylinder directly with metal hammer, use rubber mallet only! Height Adjustment Cable Screwdriver 5.1 Use small Flathead 6.1 Use small Flathead Screwdriver to disengage...
- Page 3 Hit hammer here 7.1 Place one hand on can of 8.1 Remove Cylinder. Cylinder and hit the bottom of the chair with hammer until Cylinder seperates from chair. T-20 Torx Driver 9.1 Use a T-20 Torx Driver to 10.1 Remove Height remove screws.
- Page 4 Power Driver 11.1 Using a Utility Knife cut 12.1 Using a Power Driver with a Seat Fabric in half. T-27 bit, remove Shoulder Bolts. 12.2 Remove Shoulder Bolts. Part no. 1b5vn8 rev B. © 2012 Herman Miller, Inc. Zeeland, Michigan. Printed in the U.S.A. ®...
- Page 5 13.1 Using a Power Driver with a T-27 bit, remove Bolts. 14.1 Remove Arms. 15.1 Remove Inner Bushing. Part no. 1b5vn8 rev B. © 2012 Herman Miller, Inc. Zeeland, Michigan. Printed in the U.S.A. ® Y, Z, Setu are among the registered trademarks of Herman Miller, Inc. Sense, Setu, and Tu are among the trademarks of Herman Miller, Inc.
- Page 6 16.1 Remove T-Nut from Arm. 17.1 Remove No Arm Plug from opening in Beam. 18.1 Remove T-Nut from No Arm Plug. Part no. 1b5vn8 rev B. © 2012 Herman Miller, Inc. Zeeland, Michigan. Printed in the U.S.A. ® Y, Z, Setu are among the registered trademarks of Herman Miller, Inc. Sense, Setu, and Tu are among the trademarks of Herman Miller, Inc.
- Page 7 19.1 Using a Power Driver with a T-27 bit, remove Shoulder Bolts. 20.1 Remove Inner Bushings. Part no. 1b5vn8 rev B. © 2012 Herman Miller, Inc. Zeeland, Michigan. Printed in the U.S.A. ® Y, Z, Setu are among the registered trademarks of Herman Miller, Inc. Sense, Setu, and Tu are among the trademarks of Herman Miller, Inc.
- Page 8 21.1 Using a Powerdrill with 22.1 Remove Tilt Assembly a T-27 bit, remove Screws. from Seat Assembly. 23.1 Using a Powerdrill with a 24.1 Remove Rear Links. T-27 bit, remove Shoulder Bolts. Part no. 1b5vn8 rev B. © 2012 Herman Miller, Inc. Zeeland, Michigan. Printed in the U.S.A. ®...
- Page 9 25.1 Remove Shoulder Bolts 26.1 Remove 4 Inner Bushings. using Power Driver. 27.1 Remove Front link. 28.1 Using a small shaft or screwdriver. Remove pressed T-Nut from both Links. Part no. 1b5vn8 rev B. © 2012 Herman Miller, Inc. Zeeland, Michigan. Printed in the U.S.A. ®...
- Page 10 T-Nut Location 30.1 Remove T-Nuts from 29.1 Pull Fabric out of groove in Seat frame. Seat frames to remove. Remove metal clips from fabric. Part no. 1b5vn8 rev B. © 2012 Herman Miller, Inc. Zeeland, Michigan. Printed in the U.S.A. ®...
