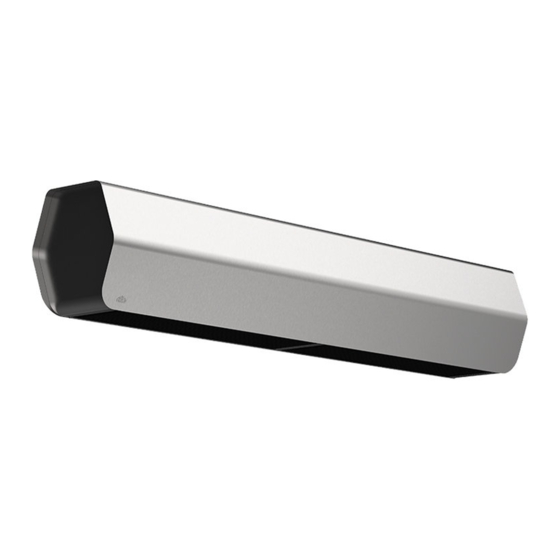

- Page 1 Original instructions Sierra ..17 ..22 ..27 ..33 ..39 ..45 ..51 ..57 ..63 ..69 ..76 ..82...
- Page 2 Sierra The introduction pages consist mainly of pictures. For translation of the English texts used, see the respective language pages. Introduktionssidorna består huvudsakligen av bilder. För översättning av de engelska texter som används, se respektive språksidor. Introduksjonssidene består hovedsakelig av bilder. For oversettelse av de engelske tekstene, se de respektive språksidene...
-
Page 3: Vertical Mounting
FEC - W - VL - A SIFEC - W - VR - A SIFEC - E - VR FC Frico Control FEC - W - VL - B SIFEC - W - VR - B SIFEC - E - VR Inside thread : 1", DN25... -
Page 4: Drilling Template
SIFEC- VL - A FC Frico Control PC board FC is integrated within the air curtain at delivery. Note! The air curtain must be secured in the wall or ceiling. Drilling template Minimum distance Scale 1:1 on www.frico.net Ø50 (2x) 180 mm... - Page 5 Sierra Vertical mounting Distance water connections - end [mm] SIFEC20WL-V SIFEC20WH-V 100 SIFEC25WL-V SIFEC25WH-V 260 Removing the front Removing the inlet grill 80 mm...
- Page 6 Sierra Vertical mounting Accessories Item Type Used for Consists number AXP300 10234 SIFEH* SIFEC-V 10028 AXP300 SIFEC-V 330955 FH1025 SIFECW-V FH1025 See separate manual. SIFEH Extension hood SIFEH...
-
Page 7: Horizontal Mounting
Sierra Horizontal mounting [mm] SIFEC10-H 1124 SIFEC15-H 1624 SIFEC20-H 2124 SIFEC25-H 2624 4xM8 Inside thread : 3/4", DN20 4xM8 FC Frico Control SIFEC HL PC board FC is integrated within the air curtain at delivery. -
Page 8: Minimum Distance
Sierra Horizontal mounting Minimum distance Removing the front SIFEC E: 200 mm SIFEC W: 180 mm Wall bracket SIFWB Ø12 Ø12... - Page 9 Sierra Horizontal mounting Accessories Item Type Used for Consists number 251886 SIFWBB SIFEC-H 251887 SIFWBP SIFEC-H 251888 SIFWBMP SIFEC-H PA34CB15* 18059 SIFEC10/15-H PA34CB20* 18060 SIFEC20-H 18061 PA34CB30* SIFEC25-H 18062 PA34WS15* SIFEC10/15-H 18063 PA34WS20* SIFEC20-H SIFW PA34WS PA34TR 18064 PA34WS30* SIFEC25-H...
-
Page 10: Control Systems
Sierra Control systems The air curtain must be supplemented with a control system. FCDA - FC Direct FCSA - FC Smart FCCF FCDC FCBC10 FCLAP FCCF FCDC FCBC05 FCPA - FC Pro FCBA - FC Building FCCF FCDC FCBC10 FCCF... - Page 11 Sierra SIFEC A SIFEC10: 2 Motors SIFEC15: 3 Motors SIFEC20: 4 Motors SIFEC25: 5 Motors +12V +12V FCBASEPCB REA Trafo Corinte SIFEC A 246951 230V~ Wiring diagrams for control system in the FC manual.
- Page 12 Sierra SIFEC W SIFEC10: 2 Motors SIFEC15: 3 Motors SIFEC20: 4 Motors SIFEC25: 5 Motors Inlet sensor Outlet sensor +12V +12V FCBASEPCB RW Trafo SIFEC W 246950 230V~ Wiring diagrams for control system in the FC manual.
- Page 13 Sierra SIFEC10E / 15E A1 A2 B1 B2 D1 D2 Termination 230V IN BUS 1 BUS 2 Wiring diagrams for control system in the FC manual.
- Page 14 Sierra SIFEC20E / 25E A1 A2 B1 B2 D1 D2 Termination 230V IN BUS 1 BUS 2 Wiring diagrams for control system in the FC manual.
-
Page 15: Product Key
MP = Mirror polished stainless steel State RAL code = Powder coating RAL State NCS code = Powder coating NCS Contact Frico before ordering for more information about the product and special adaptations. EN Connection position* SE Anslutningsposition NO Tilkoblingsposisjon DE Position der Anschlüsse... -
Page 16: Technical Specifications
) ∆t = temperature rise of passing air at maximum heat output and low/high airflow (2V/10V). ) Applicable at water temperature 60/40 °C, air temperature, in +18 °C. ) Applicable at water temperature 80/60 °C, air temperature, in +18 °C. ) Horizontal mounting ) Vertical mounting ) See www.frico.net for additional calculations. -
Page 17: Operation
The recommended Note! The air curtain must be secured in the installation width of Sierra is 5 m with air wall or ceiling. The M8 press nut on the top of curtains mounted on both sides of the opening the unit is used for this, see figure. -
Page 18: Electrical Installation
Sierra Removing the inlet grille For units with electrical heating, the power • Remove the screw at the lower end of the supply for heating (400V3~) is connected to grille. the terminal block. Power and control must be supplied separately. The electrical connection •... -
Page 19: Maintenance
Filter (W) Note that the unit shall be preceded by a The water coil is protected against dirt and regulating valve, see Frico valve kit. blockage by an internal air filter which covers Valves must be installed outside the unit. -
Page 20: Troubleshooting
Sierra Overheating Replacing the PC board The air curtain unit with electrical heating is 1. The PC board is located in the terminal box. equipped with an overheat protection. If it is 2. Mark and disconnect the cables to the PC deployed due to overheating, reset as follows: board. - Page 21 Sierra This should not be seen as a fault, but is Safety simply rectified by connecting the appliance to • For all installations of electrically heated the main supply via a socket without a safety products a residual current circuit breaker cut-out so that the moisture can be eliminated 300 mA for fire protection should be used.
- Page 22 Main offi ce Frico AB Tel: +46 31 336 86 00 Industrivägen 41 SE-433 61 Sävedalen mailbox@frico.se Sweden www.frico.net For latest updated information and information about your local contact: www.frico.net.
