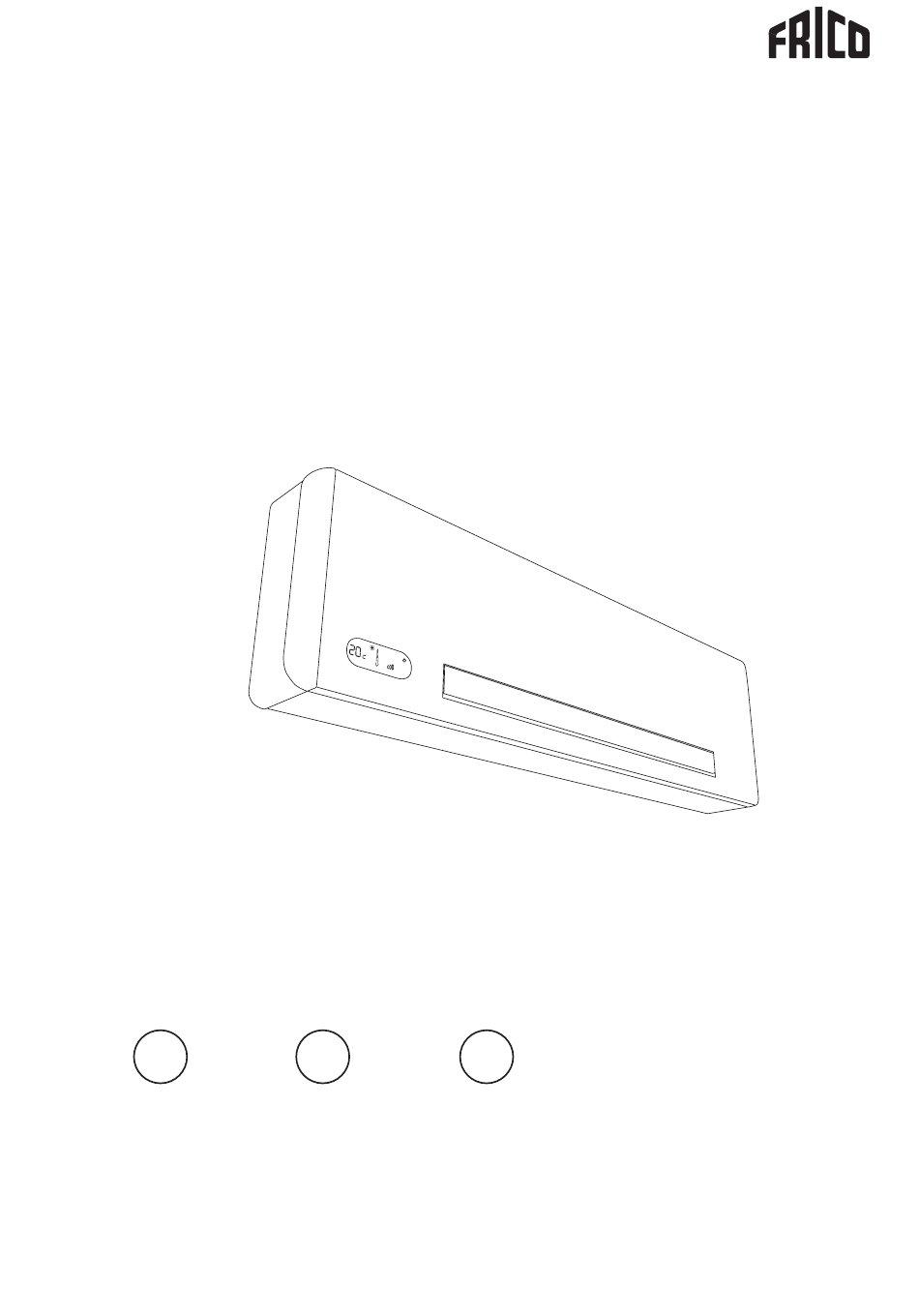

- Page 1 Original instructions ..2 ..23 ..44...
-
Page 2: Table Of Contents
Declaration of Conformity Symbols User symbols Safety symbols 1 General 1.1 General warnings 1.2 Important safety regulations 1.3 Product range 1.4 Nominal technical data 1.5 Dimensions SLW 1.6 Dimensions and weight - transportation 2 Installation 2.1 Positioning 2.2 Installation method 2.3 Minimum dimensions 2.4 Opening the unit - installation 2.5 Wall mounting or floor standing... -
Page 3: Declaration Of Conformity
Declaration of Conformity This product complies with the following EU directives: • Low voltage directive 2006/95 / CE • Electromagnetic compatibility 2004/108/CE Symbols The symbols shown in the following chapters provide quick and clear information to ensure correct use of the product. User symbols User Indicates pages that contain instructions or information for the user. -
Page 4: General
If the user manual is damaged or lost, order a new one from Frico or download it from our website. Repair and maintenance must be carried out by qualified personnel, in accordance with these instructions. -
Page 5: Important Safety Regulations
GENERAL 1.2 Important safety regulations Please note that when using products with electricity and water, different basic safety regulations must be followed, including: It is prohibited for children and people with disabilities to use the product. It is prohibited to touch the unit when barefoot and when parts of the body are wet or damp. -
Page 6: Dimensions Slw
1.5 Dimensions SLW SLW400 SLW600 SLW800 Length (L) 1102 1302 1.6 Dimensions and weight - transportation SLW400 SLW600 SLW800 Weight Length (L) 1035 1235 1435 Height (H) Depth (D) -
Page 7: Installation
INSTALLATION 2 Installation 2.1 Positioning Do not install the unit in proximity to: • places exposed to direct sunlight • heat sources • damp environments and areas when the unit can come into contact with water • environments with oil mist Ensure that: •... -
Page 8: Opening The Unit - Installation
INSTALLATION 2.4 Opening the unit - installation • Remove the side panels by sliding them upwards, see fig. • Remove the six hex screws on the sides of the front panel • Remove the front panel, see fig. A Side panels B Front panel... - Page 9 INSTALLATION • Lift off the upper grille, pull it towards you and lift upwards, see fig. • Remove the side panels by lifting them upwards A Upper grille B Side panels...
-
Page 10: Wall Mounting Or Floor Standing
INSTALLATION 2.5 Wall mounting or floor standing • A recessed junction box is recommended for simple installation, see fig. • If the unit not installed at the same time as the junction box, retain a sufficient length of water and drainage pipes, so that they can be connected without having to be spliced later •... - Page 11 INSTALLATION 1. Use the drilling template and mark where the mountings are to be located on the wall. 2. Make holes and insert the plugs (two per mounting). Install the two mountings. Adjust the height using a spirit level before tightening the screws. 3.
-
Page 12: Water Connection
INSTALLATION 2.6 Water connection The installer is responsible for the selection and dimensioning and must carry out the work in accordance with current law and practice. To connect: • connect the pipes • check for leaks • protect the connections with insulation when the unit is used for cooling Avoid incomplete pipe insulation. -
Page 13: Condensation Line
INSTALLATION 2.7 Condensation line • The condensation line must be of an appropriate size (inner pipe diameter at least 16 mm) and the pipes must be positioned in such a way that an inclined angle is achieved along the entire length, never less than 1 %. In vertical installations, connect the drainage pipe directly into the drip pan, located underneath the water connections. -
Page 14: Filling The System
INSTALLATION Ensure that the drain pipe that runs through the outer wall has a sufficient fall to prevent stoppages and thus cause damp problems, see fig. A Fan convector B Condensation water line 2.8 Filling the system At system start up, ensure that the venting screw is open. If power is not connected, use the blind cover for the valve so that it is in the open position. -
Page 15: Using The Remote Control
INSTRUCTIONS 3 Using the remote control 3.1 Warnings No objects (furniture, curtains, plants, leaves, blinds, etc.) may impede the normal flow of air from either the intake or exhaust. The mobile air director must never be changed manually, instead use the remote control or the integrated control panel. -
Page 16: Battery Installation
INSTRUCTIONS It is possible to set different functions by pressing the buttons (see Function description). The remote control, which accompanies the unit, is durable, but should still be handled with care. Do not: • expose it to rain, pour liquids on the keypad nor drop it into water •... - Page 17 INSTRUCTIONS Symbol Function The buttons on the remote control and the panel affect the same function. When the unit is on, the set setpoint value on the three digits on the display. The setpoint value can be set between 16 and 31°C. The setpoint must not be set too high or low, as this means unnecessary energy consumption and can cause comfort problems.
-
Page 18: Recommendations For Energy Saving
It is important that the user can distinguish between a malfunction and something that is considered to be part of the unit's normal operation. The most common errors can be easily resolved by the user (see Troubleshooting), while other alarms require Frico technical support or similar to be contacted. -
Page 19: Regular Maintenance
INSTRUCTIONS 4 Regular maintenance 4.1 Maintenance Regular maintenance is necessary to maintain the efficiency, safety and reliability of the fan convector over time. Some maintenance should be carried out twice a year, and other maintenance annually, by authorised personnel who can also replace parts if necessary. 4.2 External cleaning Before cleaning and maintenance work, disconnect the unit from the power supply by turning off the main switch. -
Page 20: Cleaning The Filter
INSTRUCTIONS A Filter B Remove the filter Clean the filter • Use a vacuum cleaner to remove dust from the filter. • Clean the filter under running water without detergent and allow to dry. • Reinstall the filter in the fan convector, observe caution when inserting the lower edge into the casing. -
Page 21: Troubleshooting
ERRORS AND SOLUTIONS 5 Troubleshooting In the event of water leaks or anomalous operation, close the water valves and disconnect the power. If any of the following errors occur, contact an authorised installer. • The fan does not activate even if there is hot or cold water in the water circuit. •... -
Page 22: Alarms
ERRORS AND SOLUTIONS Alarms INSTALLATION In the event of a fault with the unit an error code appears, some functions still remain active though, see Operation column. CONTROL PANEL INSTALLATION AND CONNECTION Error code Cause Operation 3.1 ER0689 board connections Room temperature sensor fault Restricted function during heating and cooling operation. - Page 23 Main offi ce Frico AB Tel: +46 31 336 86 00 Industrivägen 41 SE-433 61 Sävedalen mailbox@frico.se Sweden www.frico.net For latest updated information and information about your local contact: www.frico.net.
